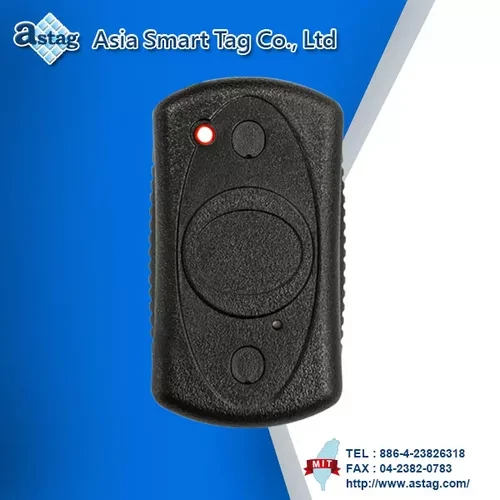

RFID LF Reader – UART
RFID LF Reader – UART
Type：PRL-588R
Frequency：125 KHz
Read range：Up to 10 cm(depend on Tag)
Model : PRL-588R
Read range：Up to 10 cm(depend on Tag)
Model : PRL-588R
Specifications
| Frequency band | 125 KHz | |
|---|---|---|
| Read range | Up to 10 cm(depend on Tag) | |
| Host interface | UART | |
| Wiegand | ||
| RS-232 | ||
| RS-485 | ||
| BLE | ||
| WiFi(option) | ||
| Virtual Com Port | ||
| ISO standard | ISO 11785 | |
| Modulation | ASK | |
| Transfer rate | 848 Kbps(customizable) | |
| UART data rate | 57600, N, 8,1(customizable) | |
| Input voltage range | DC 5V | |
| Operating temperature | -30℃ ~ +75℃ | |

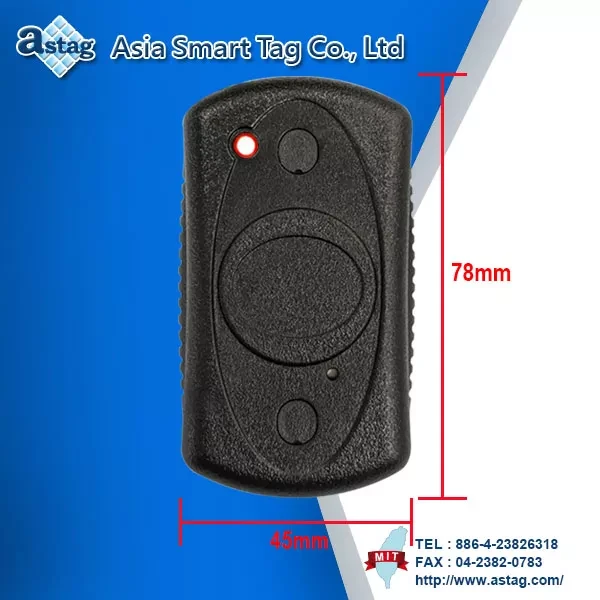

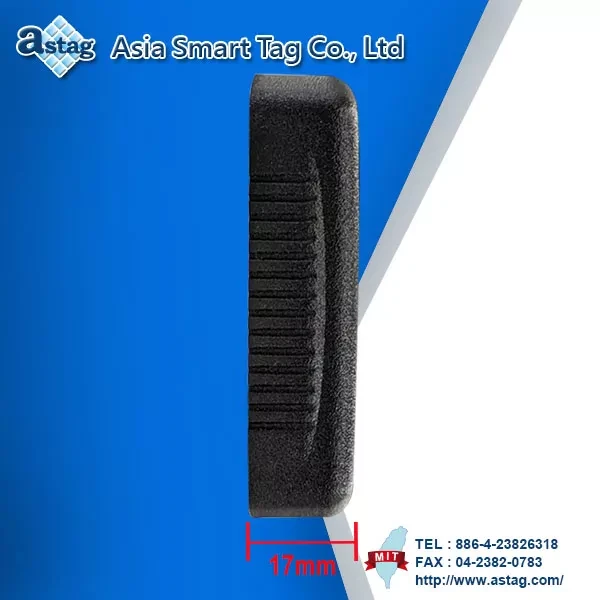

| Dimensions | 78 x 45 x 17 mm(L x W x H) | |
- UART interface.
- Wiegand，RS-232，RS-485，BLE，WiFi can be option.
- Data transmission can customizable.
Features
Supports：
1. EM standard series, station number setting.
2. These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
Function：
1. It can be identified through proximity card and tag sensing.
2. Continuous transmission or single data transmission.
Advantages：
1. It is water-resistant.
2. The low-frequency band has stronger penetration and is less affected by external interference.
Interface
Product number |
PRL588R | PRL588U | PRL588I | PRL588W |
Interface |
UART | USB | I2C | Wiegand |
Product number |
PRL588B | PRL588D | PRL588L | PRL588F |
Interface |
RS232 | RS485 | BLE | WIFI |
Applications
1. Identity recognition
2. access management
3. access control
