RFID Security Tag Coil
Specifications
| Frequency | 13.56 MHz |
|---|---|
| Material | Copper wire |
| Size | 11 x 16.3 mm |
| Wire diameter | 0.3 mm |
| Inductor value | 5.36 uH |
| Resistance | 1.5Ω |
| Thickness | 0.6 mm |
| Number of turns | 10 |
| Temperature | -40 °C to +200 °C |
| Packing | Plate 100pcs ， case 1000pcs |
- Rfid high-frequency induction IC can be applied to the matching or other needs.
- "Antenna" powered by Diameter, appearance, coil size, size, thickness can be customized.
Features

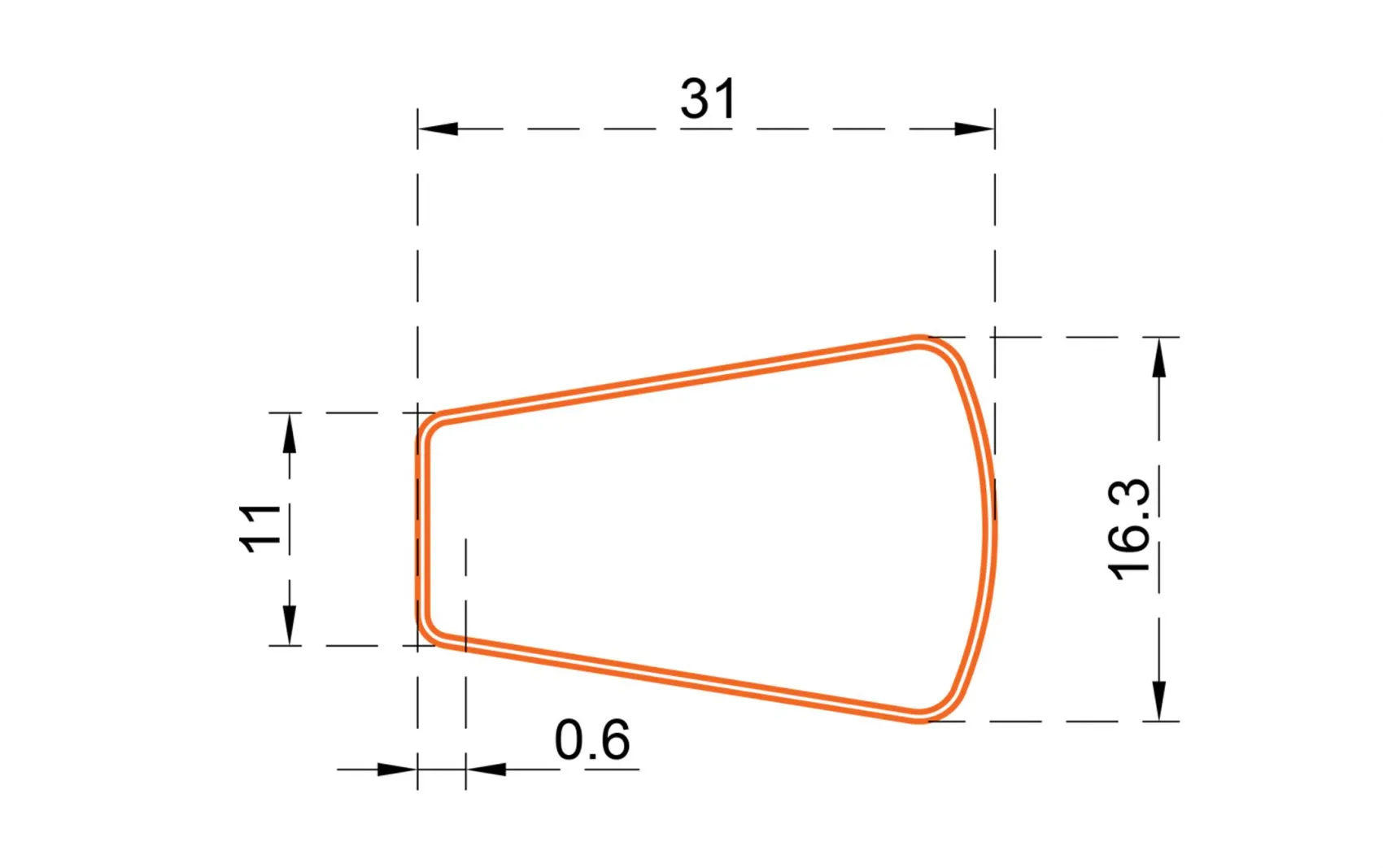

Dimensions
