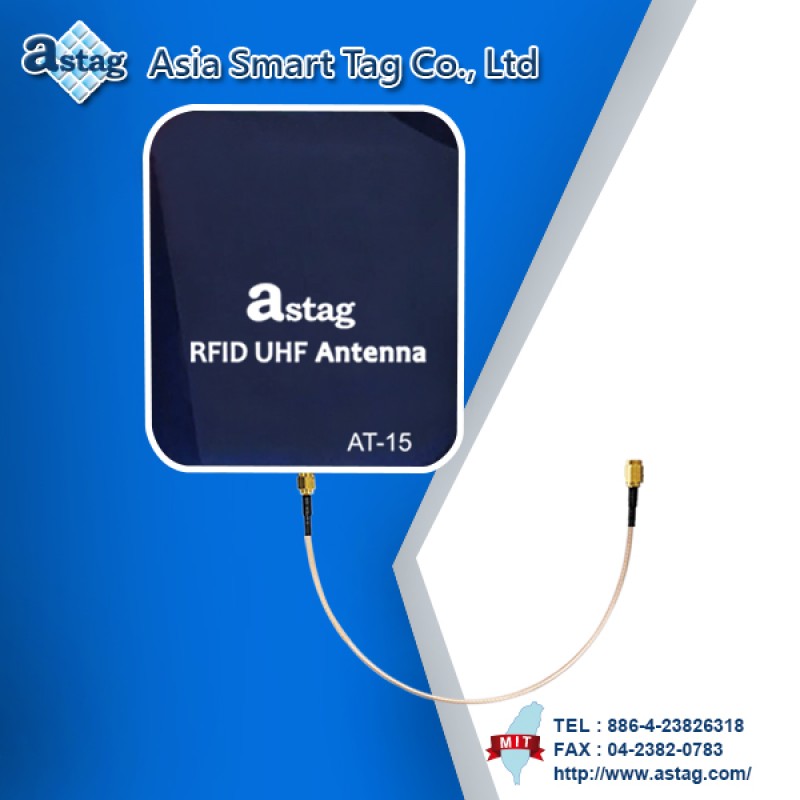

RFID UHF Antenna
Specifications
|
Model |
AT-15 |
|
Frequency band |
902~928 MHz |
|
Gain |
8dBi |
|
Polarization |
Linear Polarization |
|
Impedance |
50 Ω |
|
Connector |
SMA male |
|

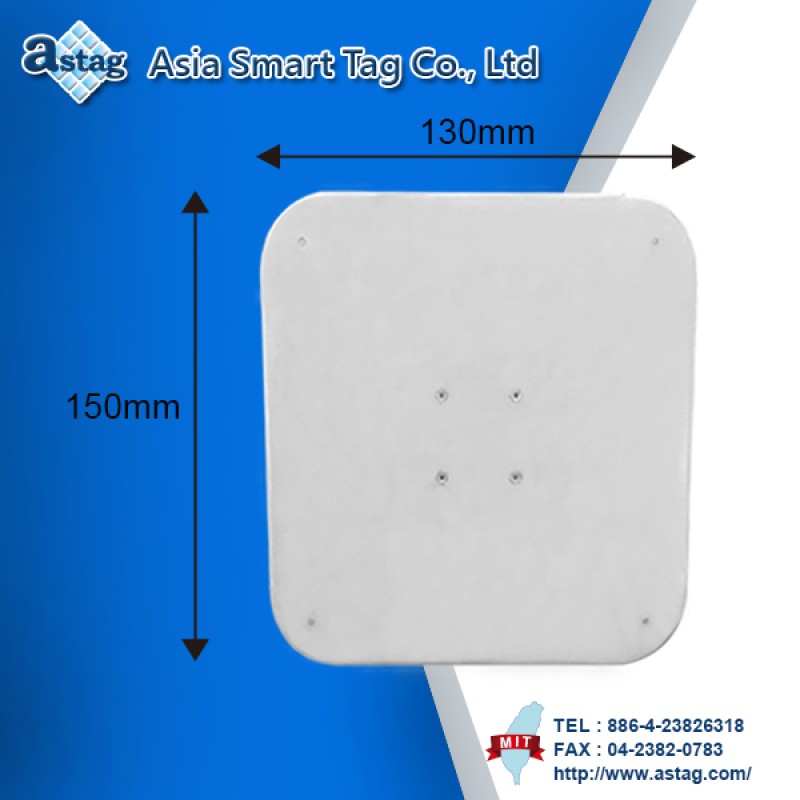

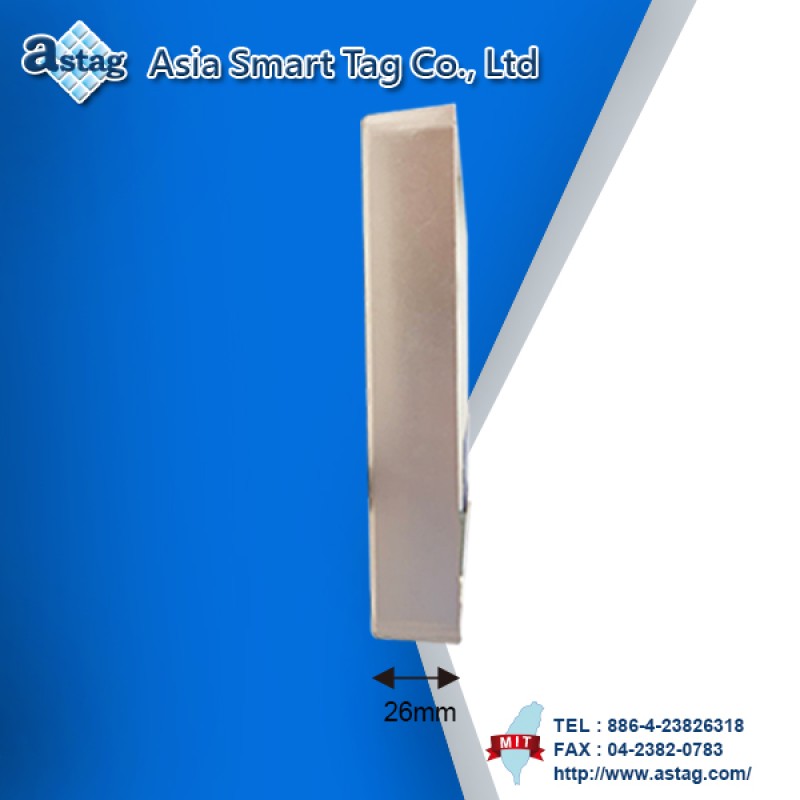

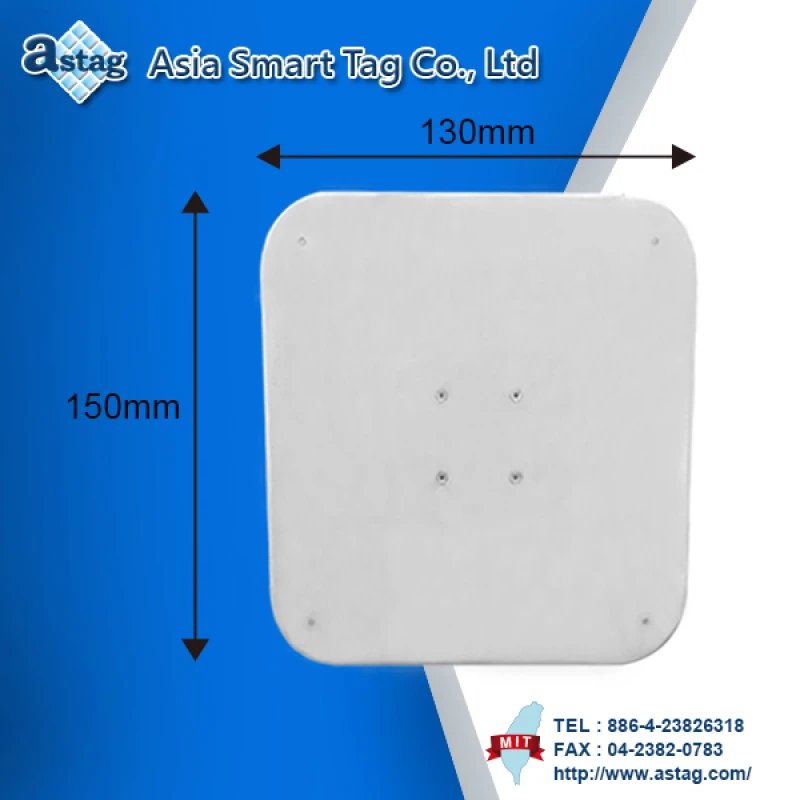

Size |
130 x150 x 26mm(L x W x H) |
Features
AT-15 Radiation pattern：
|

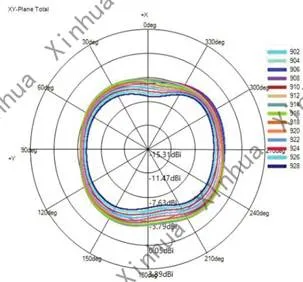

(1) X-Y Plane(unit:dBi): |

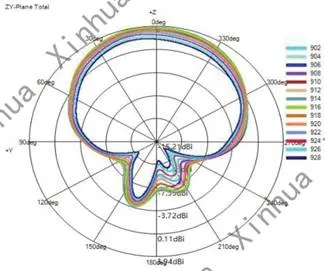

(2) Z-Y Plane(unit:dBi): |

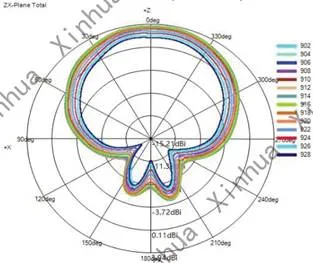

(3) Z-X Plane(unit:dBi): |
|
|
|
|
|

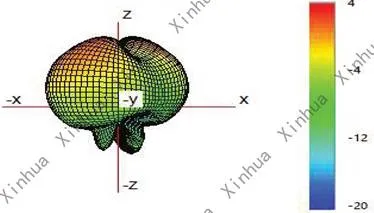

(4) Typicall Free Space 3D Radiation Pattern at 902MHz(unit:dBi): |

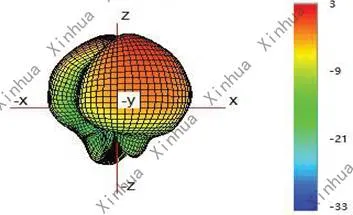

(5) Typicall Free Space 3D Radiation Pattern at 916MHz(unit:dBi): |

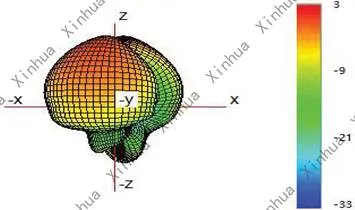

(6) Typicall Free Space 3D Radiation Pattern at 928MHz(unit:dBi): |
|
|
|
|
