Setting Transmitter
Specifications
| Frequency range |
315MHz; 320MHz; 434MHz (Can Customized) |
|
|---|---|---|
| Code | Hopping Code | |
| Consumptive current | 78 mA | |
| Keyboard | 12 Keys | |
| Noise equivalent BW NEB | 4KHz | |
| Voltage | DC 12V | |
| Battery | DC 9V | |
| Display device | 4 number LED Screen | |
| Weight | 160 g | |
| Size | 122 x 92 x 32mm(L x W x H) | |
- Can set Remote Control of 388T series, 388TA, 388TF, 388TM.
- Can set 388R with wireless network.
- Delete code: You can specify a specific remote control and delete it. The deleted remote control cannot be used.
- Learning (recode): Restore the deleted remote control.
- Copy: Add a new remote control.
- Search: Search for deleted remote controls.
- Timer: Set the number of seconds for the electric rolling door to close automatically after it is opened (e.g. 10~300 seconds).
- Upper and lower limits: Set the range of the remote control (for example, 200~2000, a total of 1800 numbers can be passed).
Applications
Can be used with the Lane Gate Control Receiver.
Can be used with the following Hopping Code Remote Controller.

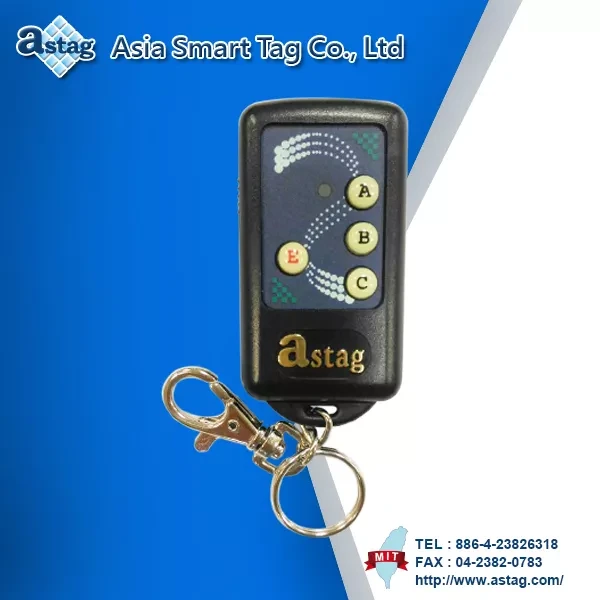

Remote Controller
RH388TF
Remote Controller
RH388TU
Remote Controller
RH388TN
Remote Controller
RH388TA
Remote Controller
RH388TM
Remote Controller
RH388TK
Remote Controller
RH388TB
