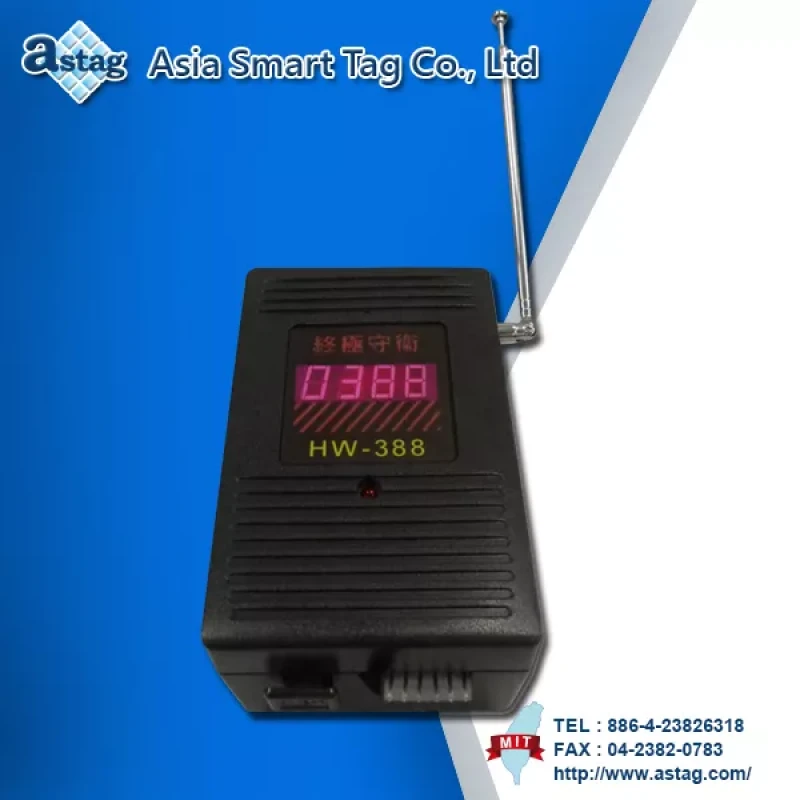

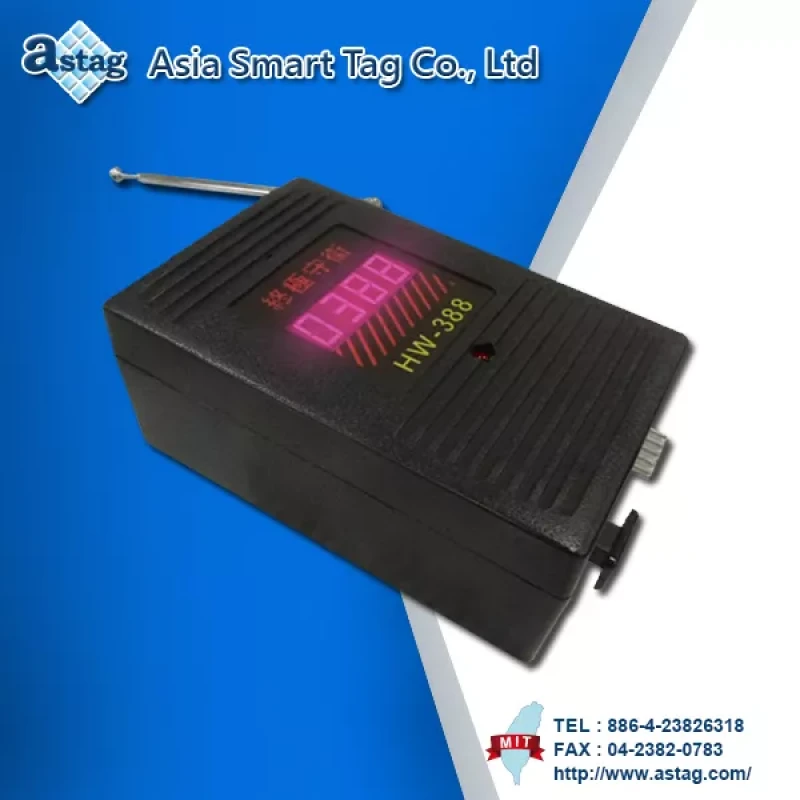

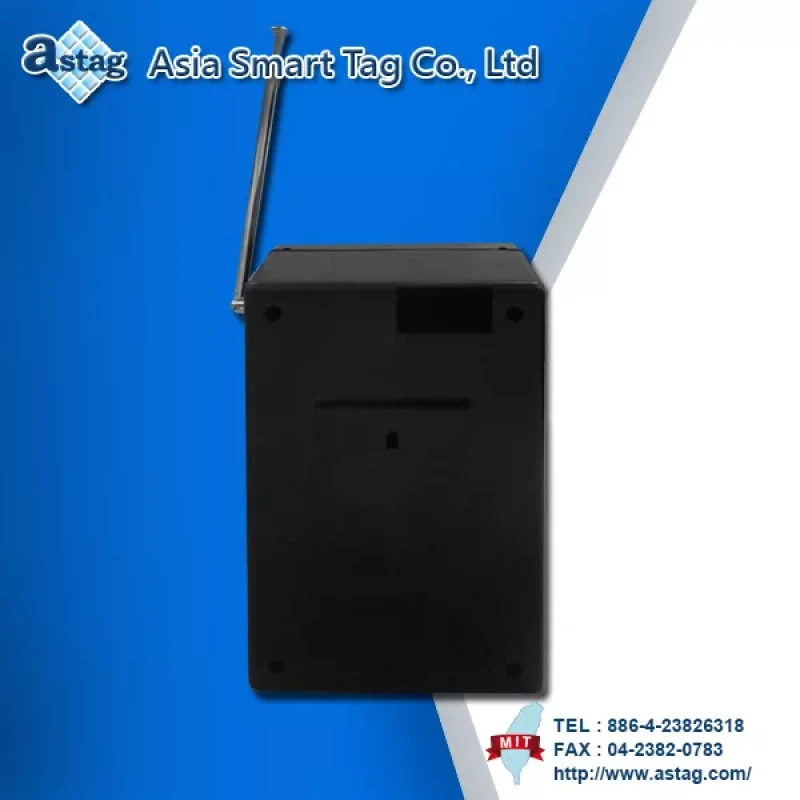

Lane Gate Control Receiver

Type：RH388R

Add to Inquiry

Specifications

Frequency range	315MHz ; 320MHz ; 434MHz (Can Customized)
Code	Hopping Code
Consumptive current	98 mA
Sensitivity	-106 dbm
Noise equivalent BW NEB	4KHz Max
Voltage	AC 110V / 220V
Display device	4 number LED Screen
Output method	2A1B ,3A ,4A (Can Customized)
Output interfance	RS-485 Link to computer
Baud rate	9600 Baud Rate
Capacity	9900 sets Transmitters Maximum
Memory	1000 Max
Color	Black
Size	138 x 86 x 57 mm(L x W x H)
Applications	Parking lot management, Garage door management, Access control management

Regulating the Parking Lot, and the Building Lane.
Avoiding the accident by connecting with an Infrared Ray.
Set up the time to control the gate.
HW-388 series is adopting the Hopping Code.
The Transmitter will change the different code by each use.
Furthermore, each Transmitter can set up the different number.
Preventing to be copied.
Each Transmitter can edit the unique number.
If the HW-388 receive the same number that is used by more than two Transmitters the whole Transmitters of same number that will be deleted.
If the transmitter was lost, the guard can delete the transmitter by HW-388S to regulate the access control system.
HW-388S and HW-388R is wireless, be convenient to your operation.

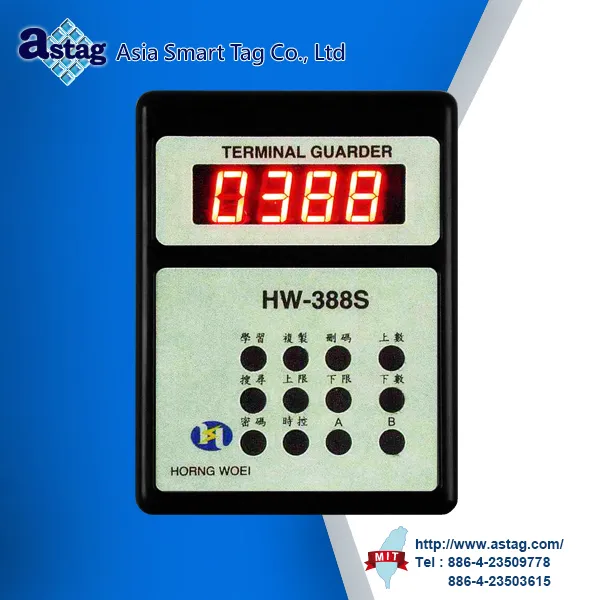

HW-388S can edit the code in the transmitter.
HW-388S can set up several functions as follow :
a. Deletion
b. Reset
c. The last transmitter number
d. The initial transmitter number
Connecting with PC to record the data of pass in and out.
Connecting with HW-5056 to make the Access Control System safer and easier.
Enhancing the remote-controlled distance.

Features

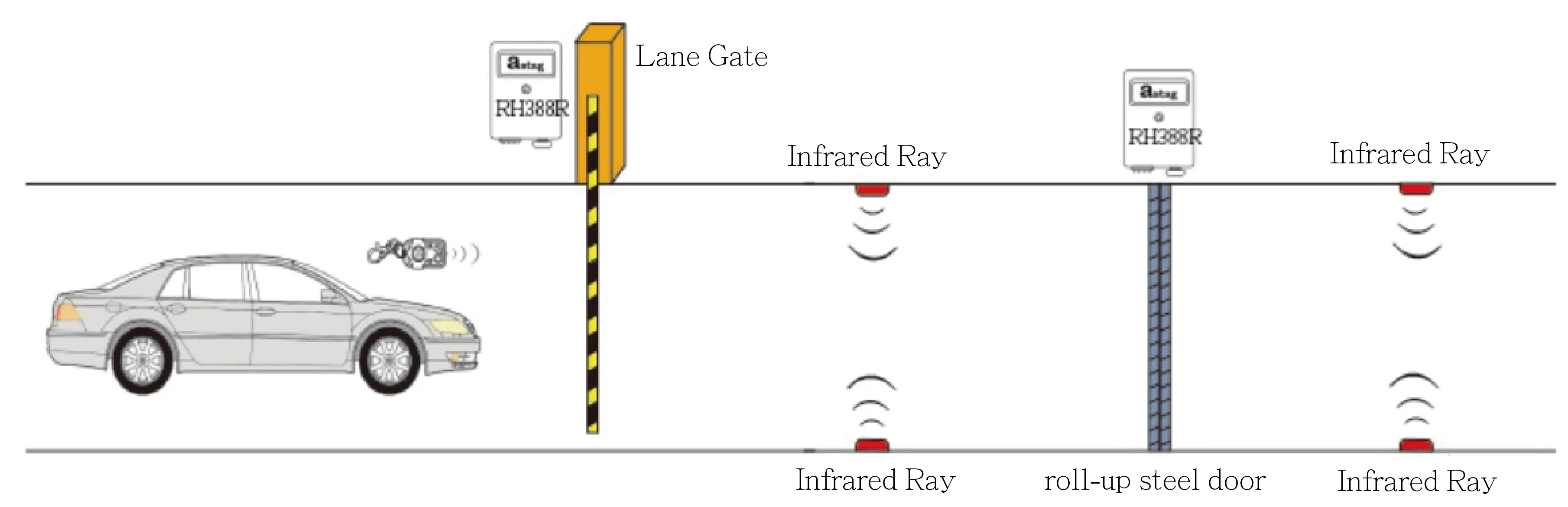

Lane Gate Security Control

To guarantee safety for men and car, the security function of Infrared Ray Sensor (NO
contact) is as below:

1.When the countdown of Time Control starts, if any side of Infrared Ray is obstructed,
   the countdown will stop and will only restart when the obstruction is solved.
2.Whether Time Control is installed or not: if Infrared ray sensor is obstructed while the
gate or roll-up steel door is descending, the gate or roll-up steel door will stop to
ascend. If Time Control function is open when infrared ray sensor is obstructed, the
   countdown will restart.
3.When Infrared Ray continues to be obstructed (man and car are right under the door),
   for safety, the transmitter will not be able to shut down the gate or the roll-up steel door.

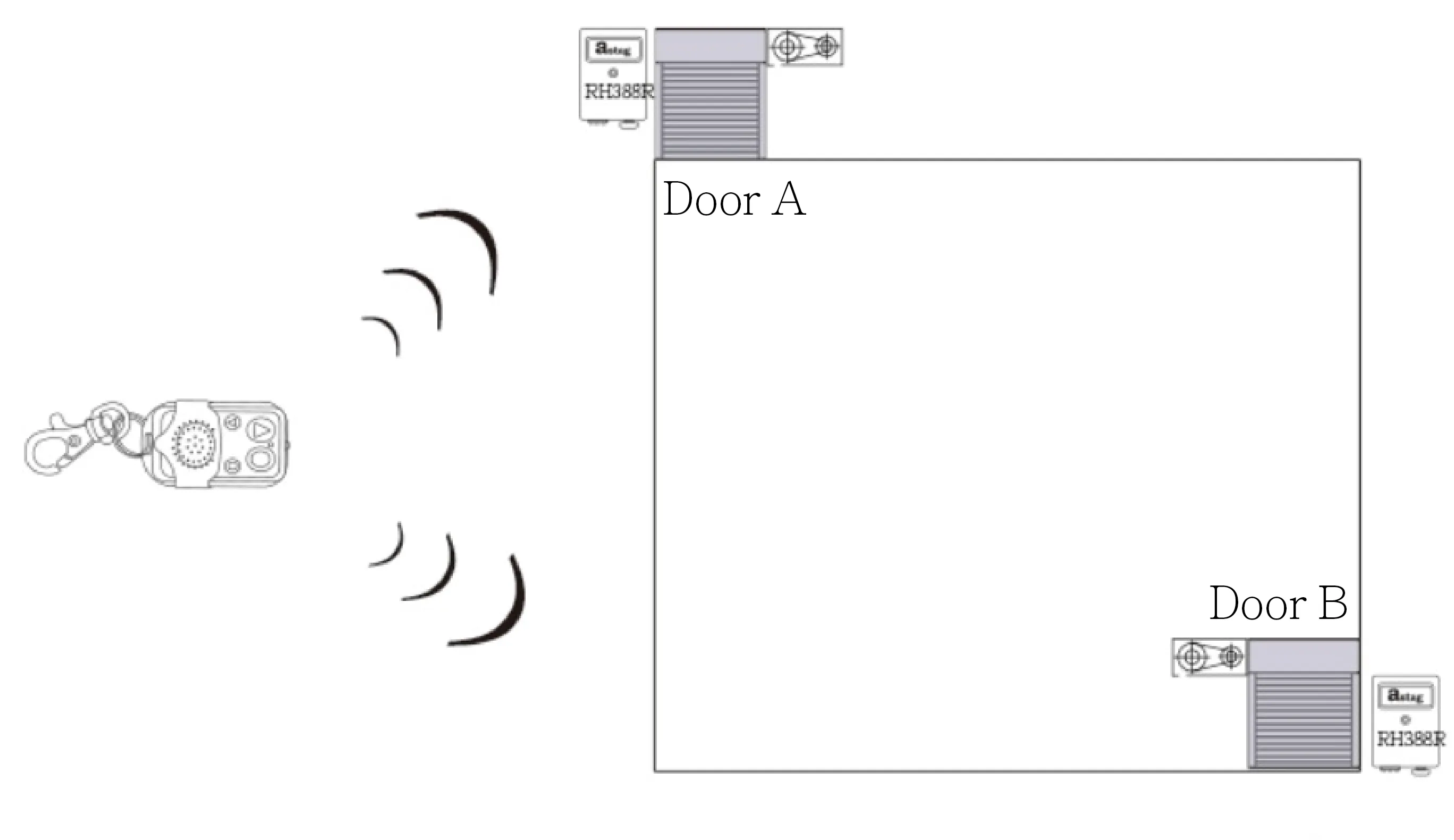

  Two-door Remote Control
