UHF RFID 4 Ports Reader
UHF RFID 4 Ports Reader
Type：PRUC4IR2
Frequency：860 ~ 960 MHz Band
Read range：Up to 10 m(depend on Tag)
Read range：Up to 10 m(depend on Tag)
Specifications
| Frequency band | 860 ~ 960 MHz | |
|---|---|---|
| Read range | Up to 10 m(depend on Tag) | |
| Host interface | RS-232 | |
| LAN | ||
| WiFi (Option) | ||
| Current consumption(Dynamic Mode) | 800 mA | |
| Current consumption(Standby) | ≤ 100 mA | |
| Radio-frequency power rising time | ≤ 500 μs | |
| Radio-frequency power droping time | ≤ 500 μs | |
| Working voltage | DC 12V | |
| ISO standard | EPC C1G2 | |
| ISO 18000-6C | ||
| Operating temperature | -20℃ to +75℃ | |
| Dimensions | 117 x 76 x 20 mm(L x W x H) | |
- UHF RFID Reader uses R2000 chips, It max power output is 30dBm.

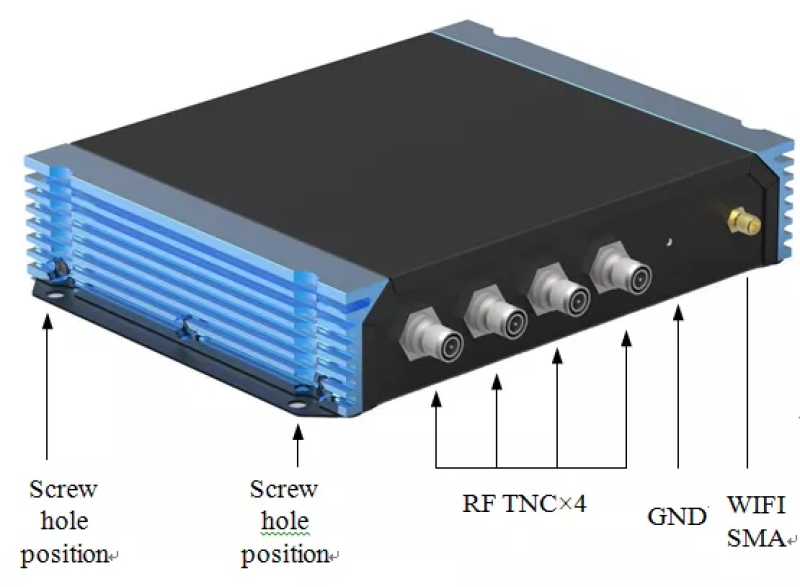

- RP TNC ports, with an 8dbi circular polarized antenna, reading distance can reach 10 meters maximum identifying speed can reach 400 tags/sec.
- 8 LED lights, real-time display working status.

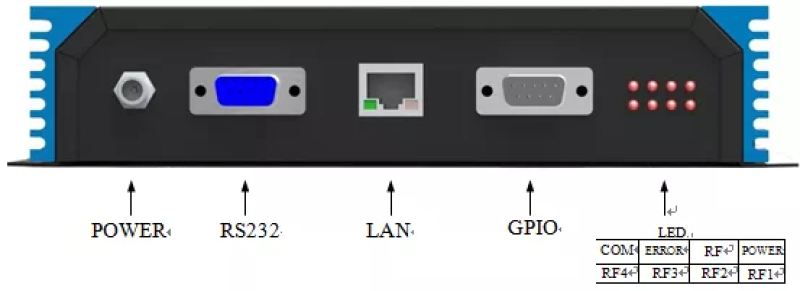

- Many external ports, Including network interface, RS-232, GPIO_IN*4, GPIO_OUT*4, LAN, WIFI(Option), can meet different client's requirement.
- Excellent read and write performance, it is suitable for complicated environment application, for example logistics, clothing, asset management etc.
