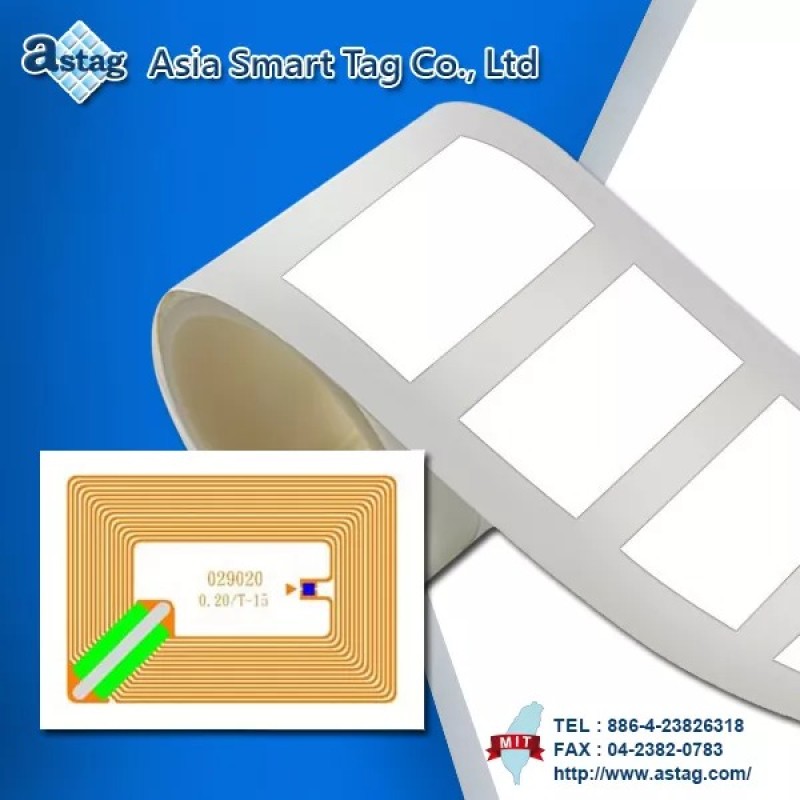

RFID Label
Specifications
| Product | RFID HF Label |
| Iteam number | PLH-033024 |
| Size | 33 x 24 mm(L x W) |
| Frequency band | 13.56 MHz ±3% |
| Read range (Depends on the reader) |
Up to 5cm |
| Testing reader | PRH578 |
| Transmission principle | passive |
| Antenna substrate | PET |
| Antenna material | Copper |
| Label Cover material | Glossy Paper (PP PEPA Paper) |
| Tube material | ABS |
| Tube size | 3 Inch |

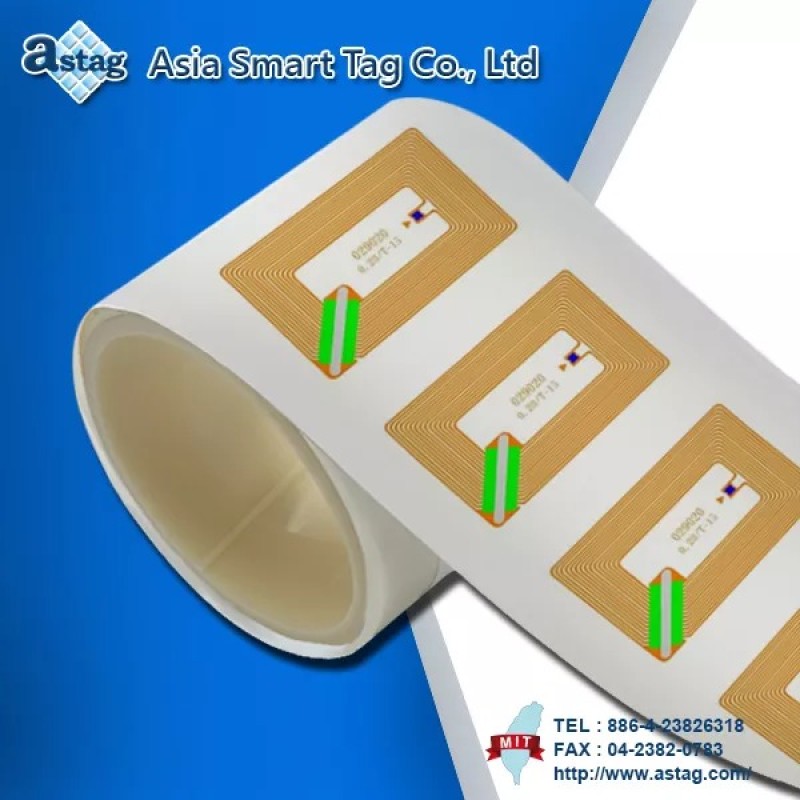

| Package | 1000 pcs/roll , 4 roll/carton |
| Operating temperature | -30°C ~ 75°C |
| Storage temperature | -20°C ~ 75°C |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 |
| IC item | Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable) |
Features

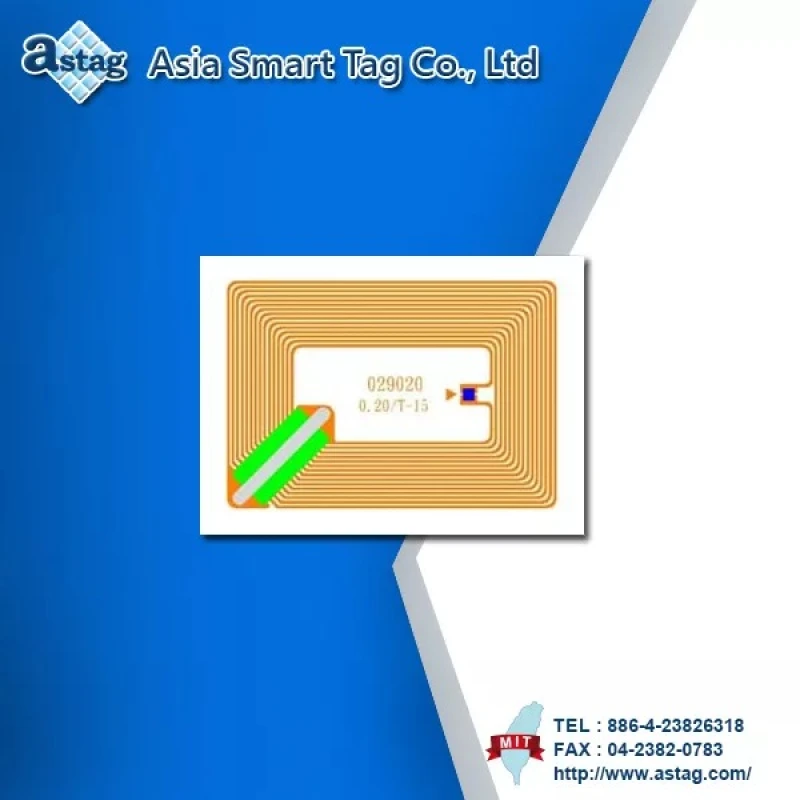

Dimensions
| Inlay Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 29 | ±0.2 | B | 20 | ±0.2 |
| C | 38 | ±0.3 | D | 40 | ±0.3 |
| E | 12.5 | ±0.25 | F | 10 | ±0.5 |
| G | 4 | ±0.1 | H | 4 | ±0.1 |
| I | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Label
| Label Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 29 | ±0.2 | B | 20 | ±0.2 |
| C | 33 | ±0.2 | D | 24 | ±0.2 |
| E | 42 | ±1.5 | F | 50 | ±1 |
| G | 2 | ±1.5 | H | 2 | ±1.5 |
| I | 9 | ±1.5 | J | 13 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
