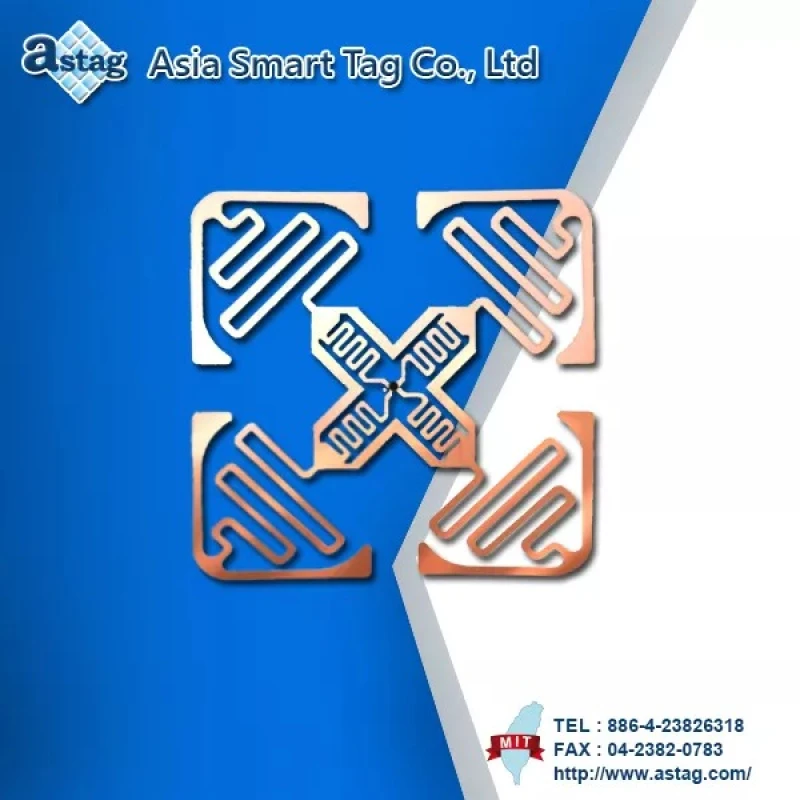

RFID Label
RFID Label
Frequency band：860 ~ 868 MHz；902 ~ 928 MHz
Size：43 x 43 mm,21.5 x 21.5 mm,30 x 30 mm
Size：43 x 43 mm,21.5 x 21.5 mm,30 x 30 mm
Specifications
| Frequency band | 860 ~ 868 MHz；902 ~ 928 MHz | ||
| Size | 43 x 43 mm | 21.5 x 21.5 mm | 30 x 30 mm |
| Read range (Depends on the reader) |
Up to 10M | Up to 6M | Up to 7M |
| Testing reader | 1PRU258A0R2 | ||
| Transmission principle | passive | ||
| Antenna substrate | PET | ||
| Antenna material | Copper | ||
| Tube size | 3 inch | ||
| Operating temperature | -30°C ~ 75°C | ||
| Storage temperature | -20°C ~ 75°C | ||
| UID | 96 bits | ||
| EPC | 128 bits | ||
| ISO standard | ISO 18000-6C / EPC-C1G2 | ||
| IC | Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9 |
||
Applications
- UHF far-end tag.
- Can be used in lane system, logistics, warehouse management, with wide practicality.
- Easy to carry and paste.
- Easy to track and manage.
