Handheld UHF Reader
Handheld UHF Reader
Type：1PRU-007-B025L
Frequency: 902~928 MHz
Interface: BLE
ISO standard: ISO 18000-6C、EPC C1G2
Interface: BLE
ISO standard: ISO 18000-6C、EPC C1G2
Specifications
| Frequency | 902~928 MHz |
| Interface | BLE |
| Read method | Read only、Read/Write |
| Reading range | 1 m, dependent on Tag type |

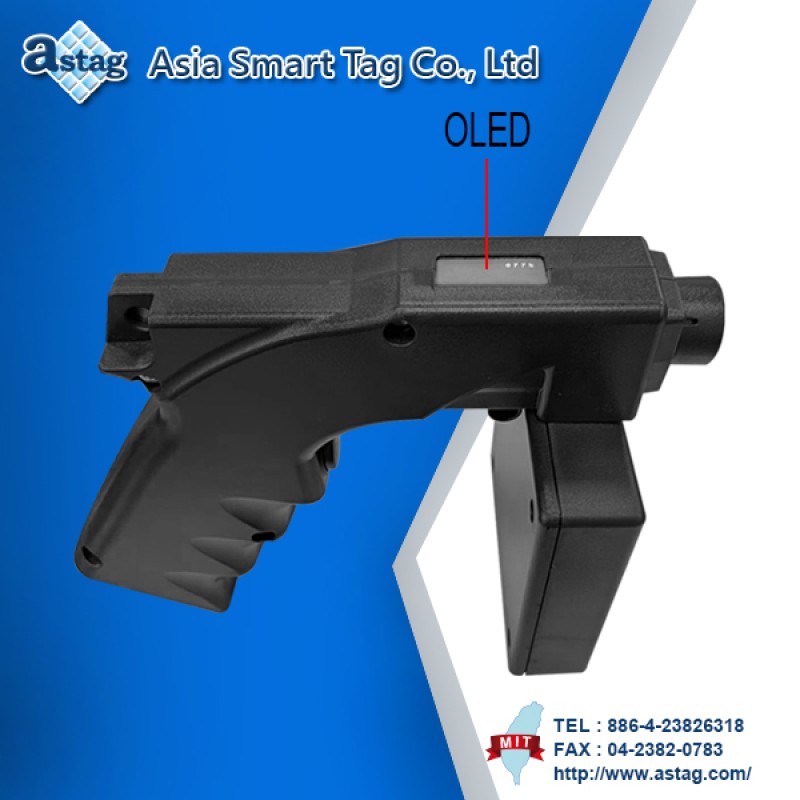

| OLED | UID、Data、Power |
| Battery | Built-in rechargeable battery (18650). |
| Charging | Supports Micro USB charging. |
| ISO standard | ISO 18000-6C、EPC C1G2 |
| Data Transmission | Standard mode or Customized |
| Dimension |

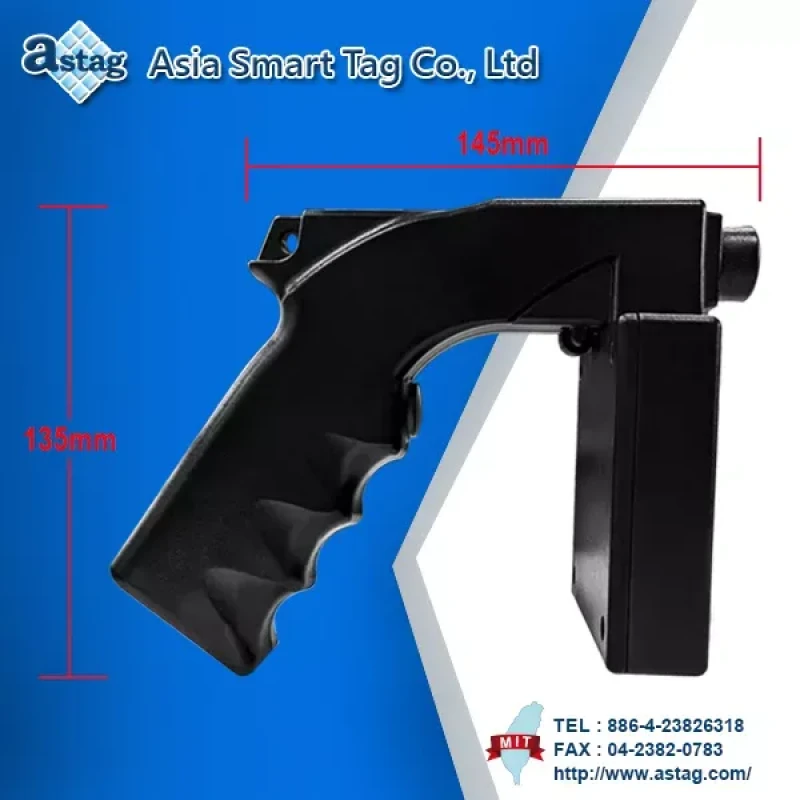

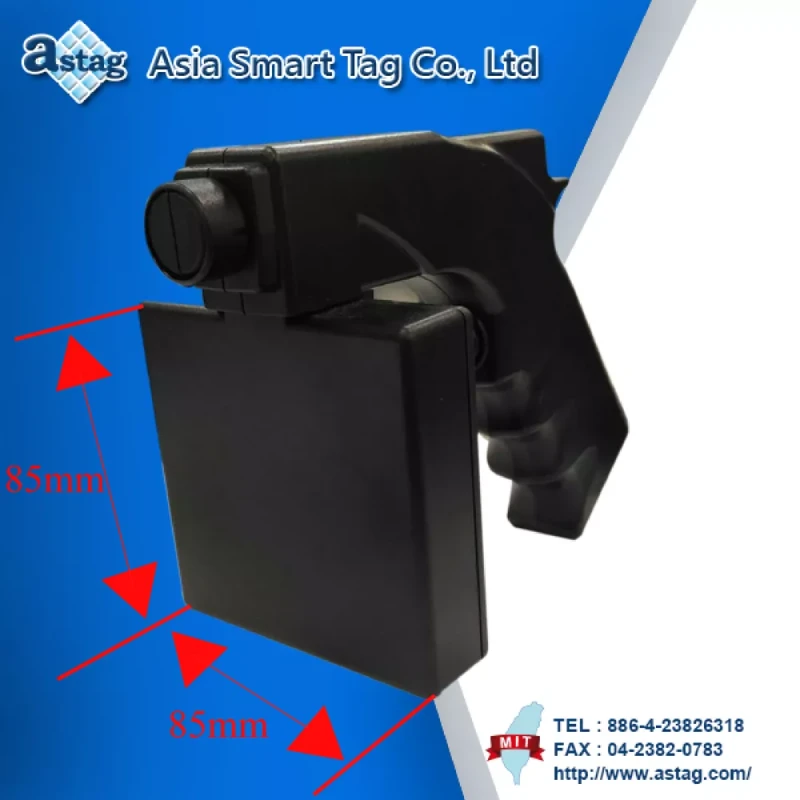

145 x 135mm (Please look the Figure 2) 85 x 85mm (Please look the Figure 3) |
| Thickness | 31 mm |
| Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | 0℃ ~ 70℃ |
| Applications |
1. Logistics management 2. Warehouse management 3. Animal management |
Features
- Can work on the move.
- Can transfer data to mobile devices such as smartphones, tablets, and laptops.
- Due to the high device compatibility, it can be easily paired to the back-end server.
- Easy to carry.
- Strong and durable.
- Long reading distance, Can read multiple objects.
- Reading speed fast and improved management efficiency.
Applications

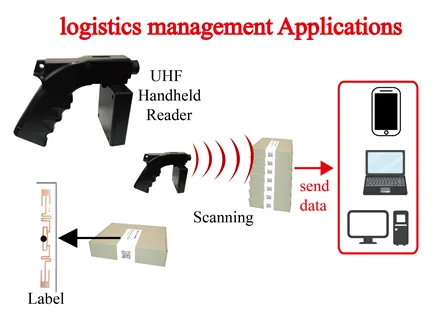

For example, in the application of logistics management, the handheld reader is matched with the label, and the back of the outer box sticker is affixed with a label. The handheld reader scans multiple outer box stickers at a time. After scanning, the relevant information of the goods will be send to the back-end server (such as mobile phone, laptop, computer), and the UHF handheld reader can read multiple objects, thereby speeding up work and reducing time costs, and is also suitable for library management.
