RFID HF Reader
Specifications
| Frequency | 13.56 MHz | |
|---|---|---|
| Reading Distance | 5 cm | |
| WiFi | 2.4GHz | |
| Interface | USB-HID | |
| UART | ||
| WiFi、BLE | ||
| I2C、SPI | ||
| RS-485 | ||
| Wiegand34/26 | ||
| ISO standard | ISO-14443A/B/C | |
| ISO-15693 | ||
| Power Supply | DC 12V~24V | |
| Language Supports |
English、Germany、French、Netherland、Italian、 Spanish、 Dutch、Swedish、 Danish、Portuguese |
|
| Encode | 16H、10D (Can customized) | |
| I/O | Buzzer, Relay*1, Input*1, Output*4 | |
| Software Supports | Windows 10/11 | |
| Function | It can be used as a transfer station for two-way communication through WiFi. It also has an action indicator light and a signal strength indicator light. | |
| Station Number | Use software to set station number via USB. | |
| Support IC | Mifare standard series、Mifare desfire series、I-Code series、NFC series | |
| Number of used | 5000 | |
| Record capacity | 10000 | |
| Waterproof | IP68 | |
| Size | 119 x 110 x 20 mm(L x W x H) | |
Applications
1. Signal communication relay station
2. Single point of control
3. Access management
4. Access Control
5. Inventory Management
6. Asset Tracking
Product Inquiry
| Image | Product Name |
|---|---|
|

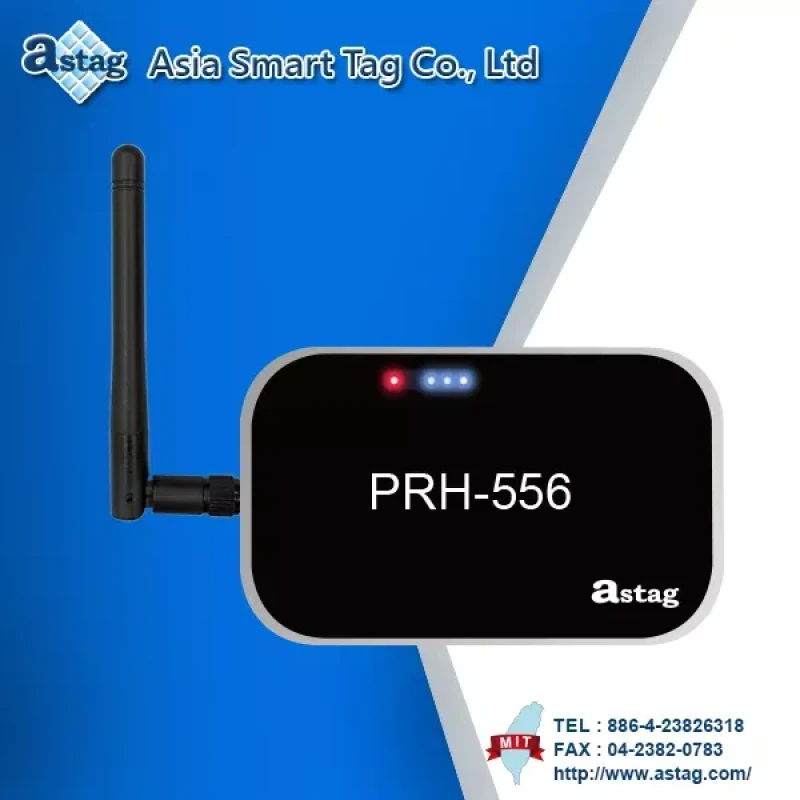

RFID HF Reader PRH-556 |
