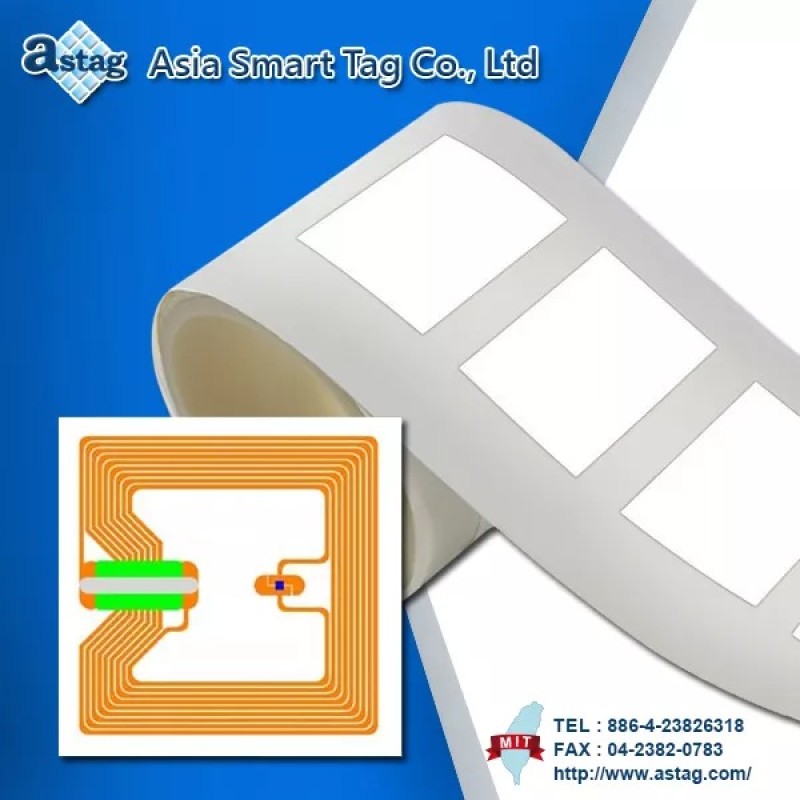

RFID Label
Specifications

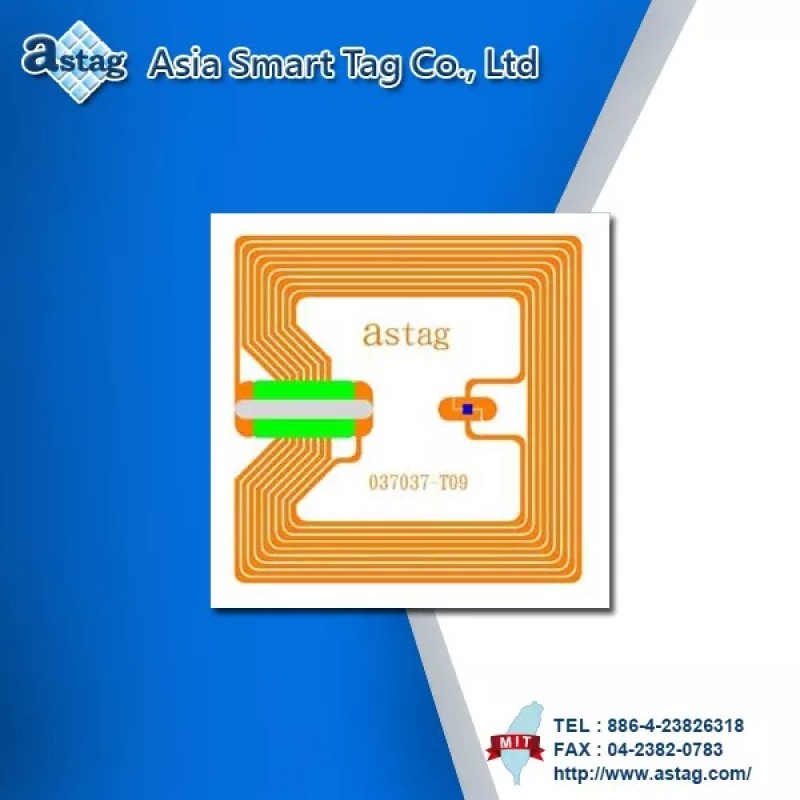

| Inlay | Label | |
| Iteam number | PIH037037-T09 | PLH041041 |
| Size | 37 x 37 mm(L x W) | 41 x 41 mm(L x W) |
| Frequency band | 13.56 MHz ±3% | |
| Read range (Depends on the reader) |
Up to 8cm | |
| Testing reader | PRH578 | |
| Transmission principle | passive | |
| Antenna substrate | PET | |
| Antenna material | Copper | |
| Label Cover material | - | Glossy Paper (PP PEPA Paper) |
| Tube material | ABS | |
| Tube size | 3 Inch | |

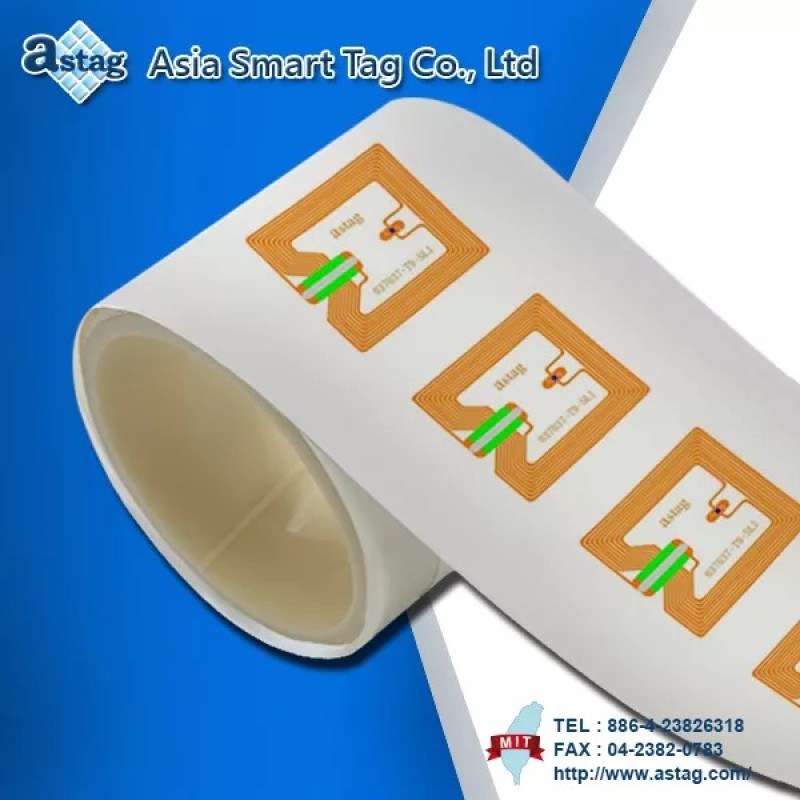

| Package | 1000 pcs/roll , 4 roll/carton | |
| Operating temperature | -30°C ~ 75°C | |
| Storage temperature | -20°C ~ 75°C | |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC item | Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable) |
|
Features
Dimensions
| Inlay Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 37 | ±0.2 | B | 37 | ±0.2 |
| C | 56 | ±0.3 | D | 48 | ±0.3 |
| E | 19 | ±0.2 | F | 5.5 | ±0.5 |
| G | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Label
| Label Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 37 | ±0.2 | B | 37 | ±0.2 |
| C | 41 | ±0.2 | D | 41 | ±0.2 |
| E | 60 | ±1.5 | F | 60 | ±1 |
| G | 2 | ±1.5 | H | 2 | ±1.5 |
| I | 19 | ±1.5 | J | 9.5 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | ±3% |
Applications
- Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
- Stable quality.
- Easy to track and manage.
- Customized service.
