UHF Label
Specifications

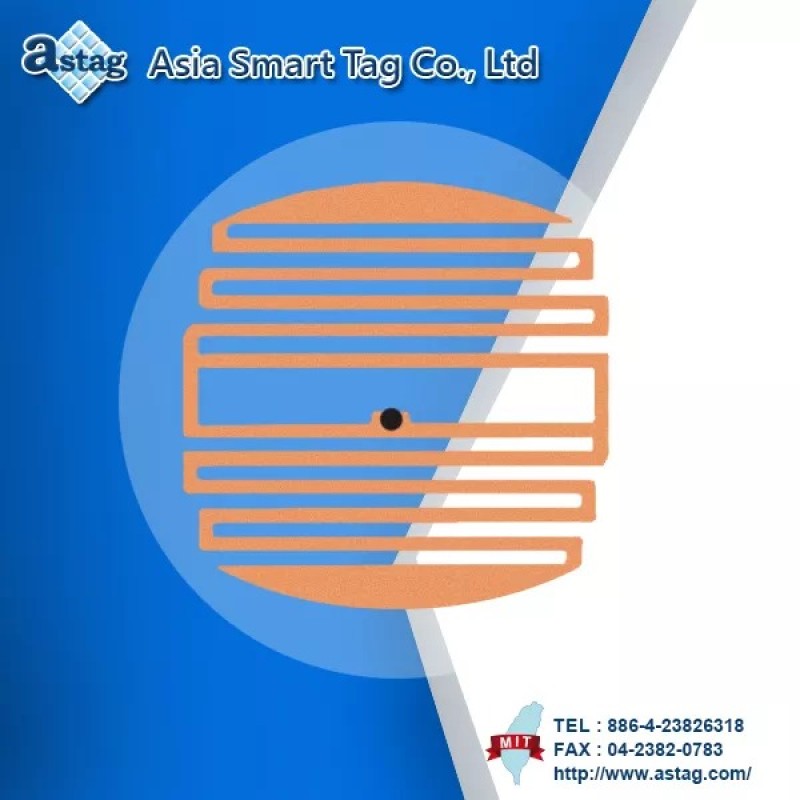

| Inlay | |
| Iteam number | PLU-Q020 |
| Size | Ø20mm |
| Frequency band | 860 ~ 868 MHz；902 ~ 928 MHz |
| Read range (Depends on the reader) |
Up to 3M |
| Testing reader | 1PRU258A0R2 |
| Transmission principle | HDX(Half Duplex) |
| EPC | 96-bits EPC Memory, extensible to 480-bits |
| Functionality | Read / Write |
| Modulation | ASK |
| Antenna material | Copper |
| Label Cover material | Glossy Paper (PP PEPA Paper) |
| Label cover color * | White(Can color printing, marking) |
| Tube material | ABS |
| Tube size | 3 Inch |

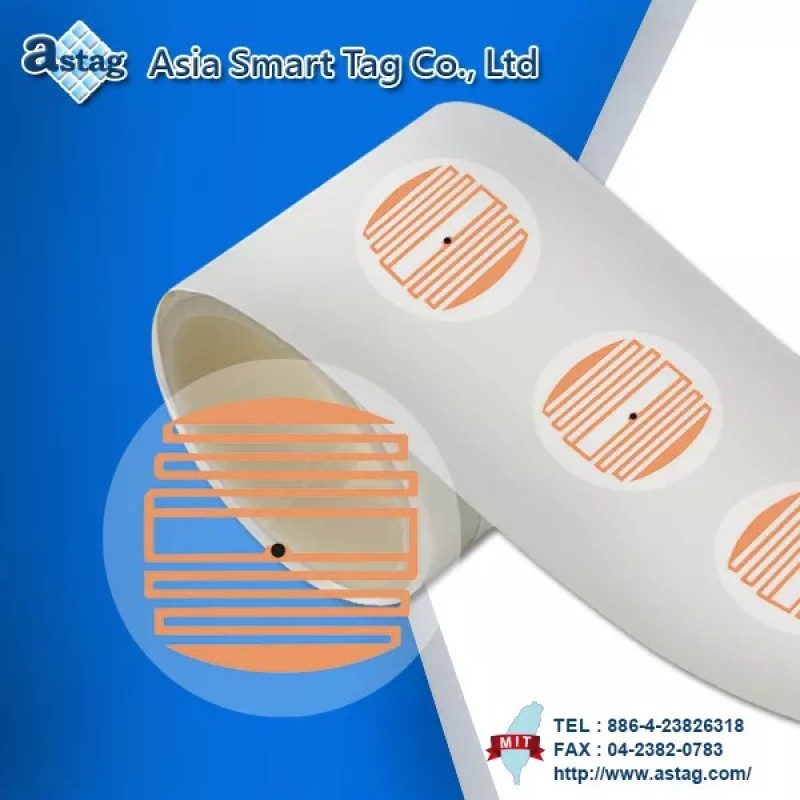

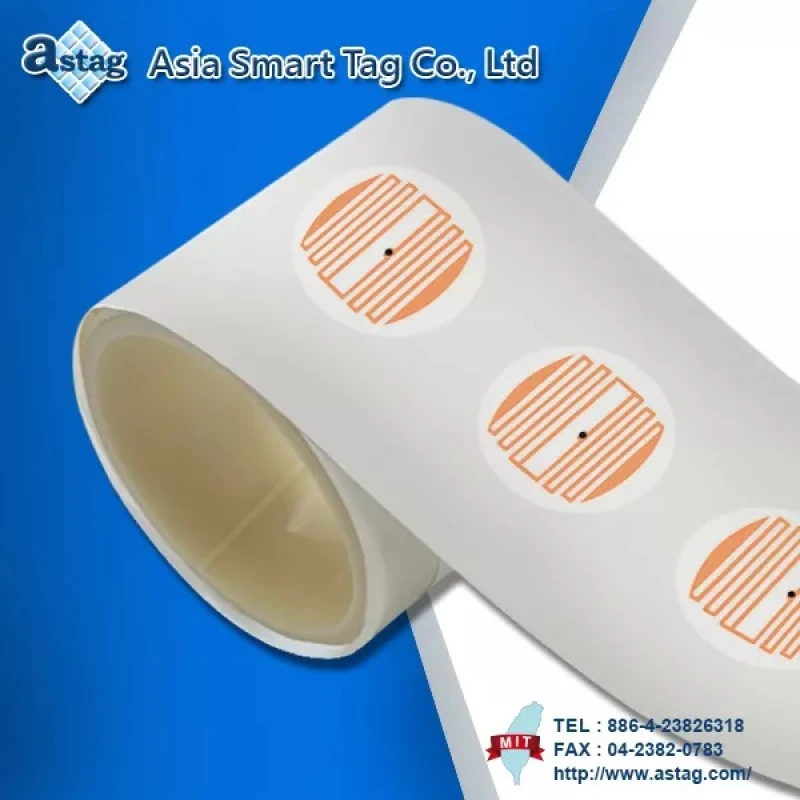

| Package | 1000 pcs/roll , 4 roll/carton |
| Operating temperature | -30°C ~ 75°C |
| Storage temperature | -20°C ~ 75°C |
| ISO standard | SO 18000-6C / EPC-C1G2 |
| IC item | Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9 |
Applications
- UHF far-end tag.
- Can be used in lane system, logistics, warehouse management, with wide practicality.
- Easy to carry and paste.
- Easy to track and manage.
