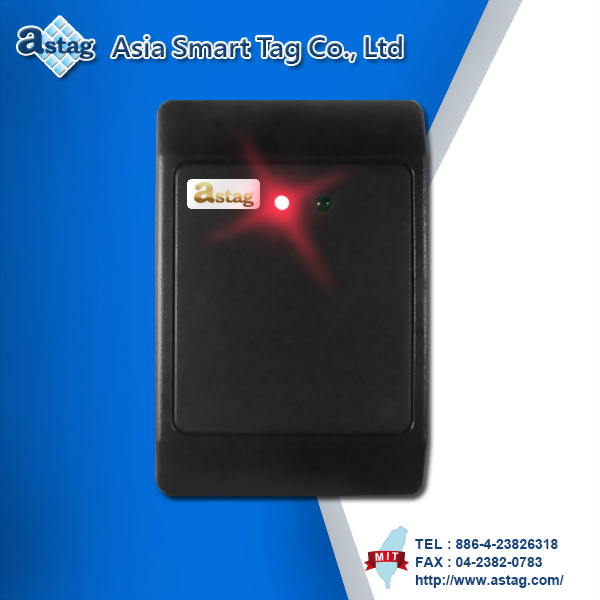

RFID LF Reader

RFID LF Reader – UART

　
Frequency：125 KHz
Read range：Up to 15 cm(PCL-05)

Model : PRL-578R

Q'ty :

Frequency band	125 KHz
Read range	Up to 15 cm(PCL-05)
Host interface	UART
	Wiegand
	RS-232
	RS-485
	BLE
	WiFi (option)
	Virtual Com Port
ISO standard	ISO 11785
Modulation	ASK
	FSK
	PSK
UART data rate	57600, N, 8, 1(customizable)
Input voltage range	DC 12V
Operating temperature	-30℃ to +75℃
Dimensions	117 x 76 x 20 mm(L x W x H)

．UART interface.
．Wiegand，RS-232，RS-485，BLE，WiFi can be option.
．Data transmission can customizable.

Supports：

1. EM standard series, station number setting.

2. These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.

Function：

1. It can be identified through proximity card and tag sensing.

2. Continuous transmission or single data transmission.

3. The low-frequency band has stronger penetration and is less affected by external interference.
