Anti-theft Label
Specifications
| Inlay | Label | |
| Frequency | 13.56 MHz ±3% | |
|---|---|---|
| Size | 39 x 39 mm(L x W) | 50 x 50 mm(L x W) |
| Transmission principle | Passive | |
| Antenna substrate | PET | |
| Antenna material | Copper | |
| Label cover material | Glossy Paper (PP PEPA Paper) | |
| Tube material | ABS | |
| Tube size | 3 Inch | |
| Operating temperature | -20℃~ +75℃ | -20℃~ +75℃ |
| Package | 1000 pcs / roll | |
| 4 roll / carton | ||
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 | |
| IC item(IC can be customized) | I-Code series / NFC series / ST25T series | |
Features
Dimensions

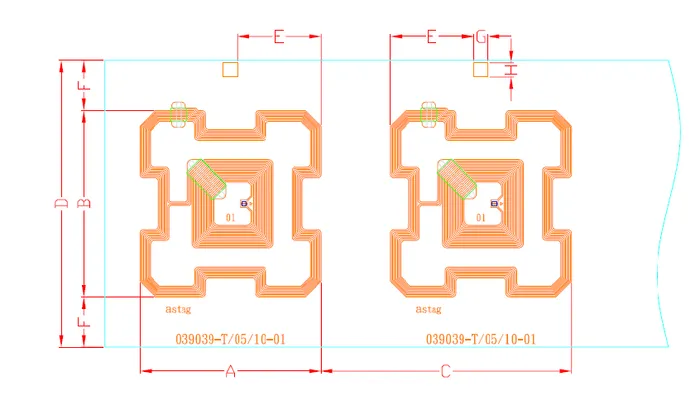

Inlay
Roll Dimension
| Inlay Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 39 | ±0.2 | B | 39 | ±0.2 |
| C | 54 | ±0.3 | D | 60 | ±0.3 |
| E | 18 | ±0.2 | F | 10.5 | ±0.5 |
| G | 3 | ±0.1 | H | 3 | ±0.1 |
| I | 76.2 | ±0.5 | Frequency | 13.90Mhz | ±3% |

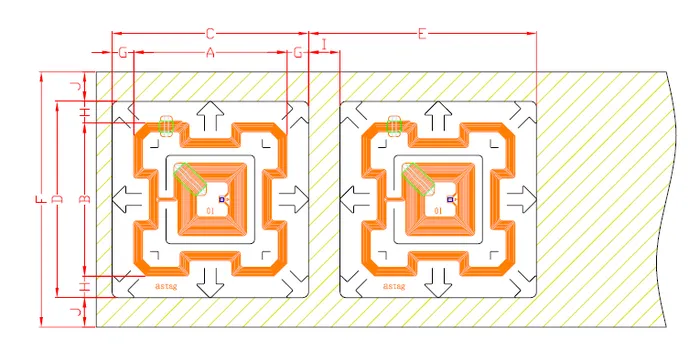

Label
Roll Dimension
| Label Size Information (Unit:mm) | |||||
| X axis | Y axis | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 39 | ±0.2 | B | 39 | ±0.2 |
| C | 50 | ±0.2 | D | 50 | ±0.2 |
| E | 58 | ±1.5 | F | 65 | ±1.0 |
| G | 5.5 | ±1.5 | H | 5.5 | ±1.5 |
| I | 8 | ±1.5 | J | 7.5 | ±1.5 |
| K | 76.2 | ±0.5 | Frequency | 13.56Mhz | |
Applications
- RFID Security Label.
- Theft Protection Label.
- Anti-Theft Label.
- Disposable label can be tamper resistan.
