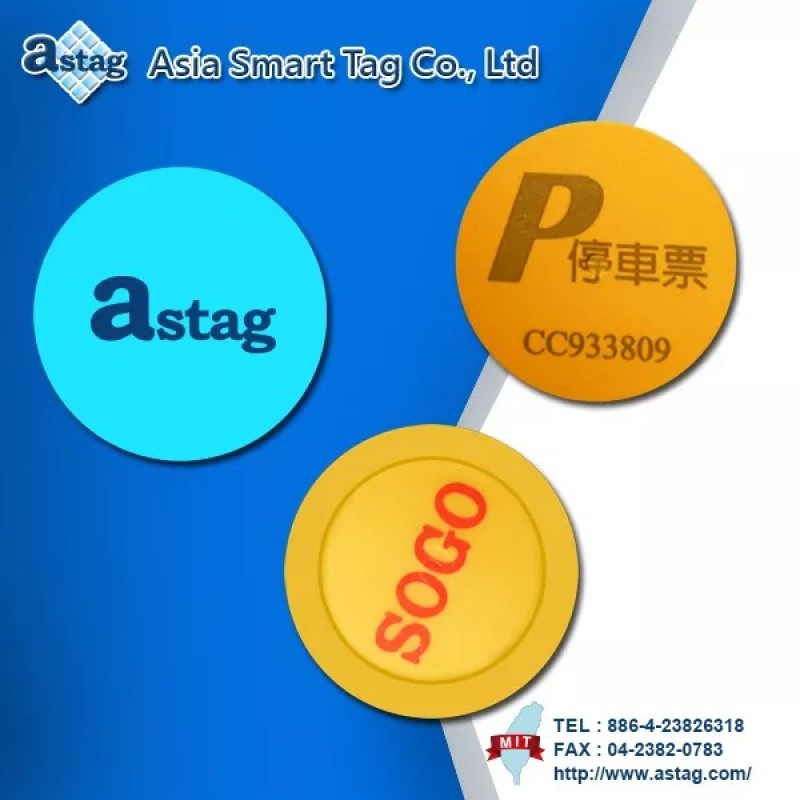

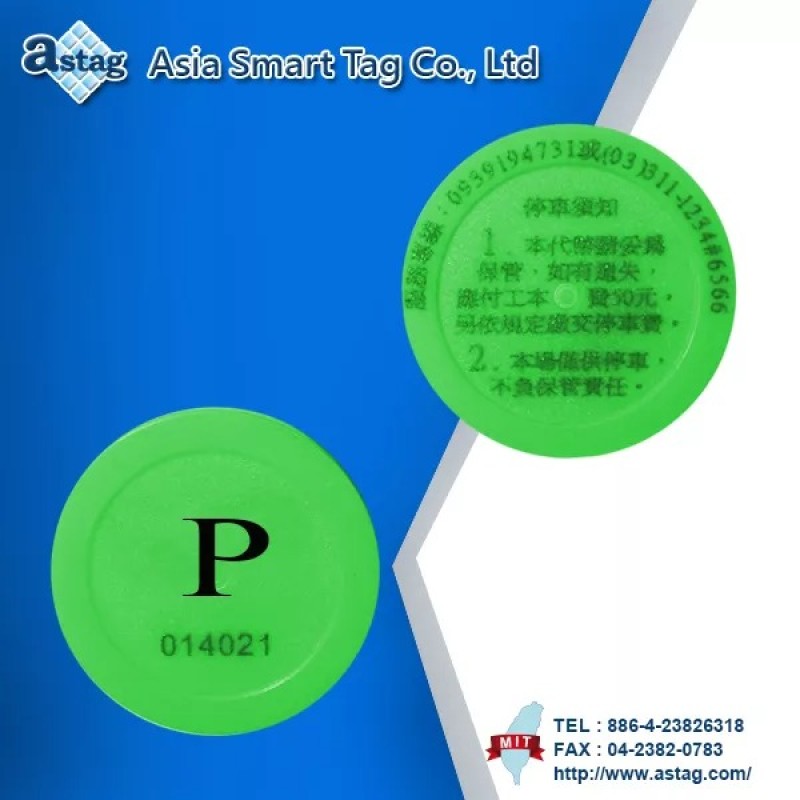

Proximity Token - 30mm
Proximity Token - 30mm
Type：PTL07MRead range：120 mm
Frequency：125 KHz ± 3%
Color：Customized color available
Specifications
| Frequency | 125 KHz ± 3% |
| Item number | PTL07MLA |

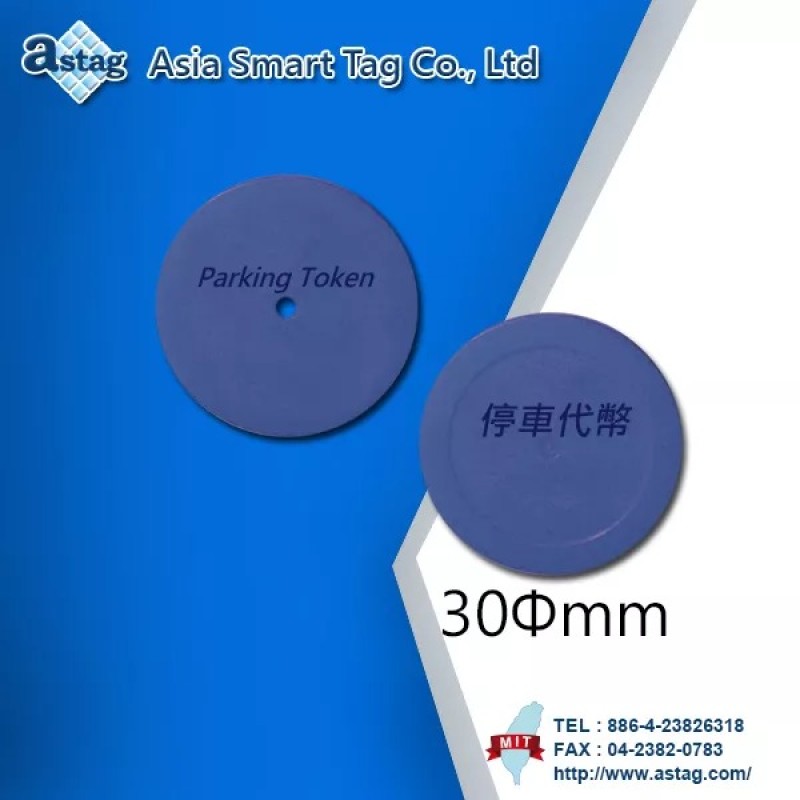

| Size | 30Φ mm |
| Thickness | 3.4 mm |
| Read range | 120 mm |
| Weight | 2.8 g |
| Testing reader | PRL578 |
| Color | Red、Blue、Black、Yellow、Gray (Customized color available) |
| Material | ABS |
| Waterproof | IP68 |
| Operating temperature | -20℃ ~ 75℃ |
| Storage temperature | 0℃ ~ 70℃ |
| Process | Secondary Penetration Injection Molding |
| Package | 50 pcs / box |
| IC ITEM | EM4100 |
| EM4200 | |
| EM4305 | |
| EM4069 | |
| EM4450 | |
| TEMIC 5530 | |
| TEMIC 5567 | |
| TEMIC 5577 | |
| HiTAGⅠ | |
| HiTAGⅡ | |
| HiTAG S2048 | |
| TK4100 |
| Frequency | 125 KHz ± 3% |
| Item number | PTL07MLP |
| Size | 30Φ mm |
| Thickness | 3.4 mm |
| Read range | 120 mm |
| Weight | 2.95 g |
| Testing reader | PRL578 |
| Color | Black |
| Material | PPL |
| Waterproof | IP68 |
| Operating temperature | -20℃ ~ 180℃ |
| Storage temperature | 0℃ ~ 70℃ |
| Process | Secondary Penetration Injection Molding |
| Package | 50 pcs / box |
| IC ITEM | EM4100 |
| EM4200 | |
| EM4305 | |
| EM4069 | |
| EM4450 | |
| TEMIC 5530 | |
| TEMIC 5567 | |
| TEMIC 5577 | |
| HiTAGⅠ | |
| HiTAGⅡ | |
| HiTAG S2048 | |
| TK4100 |
Features
LASER CARVING
Laser carving is the new customization service. With provided pictures and carving specification, we can create your desired image or number with laser technology. (Single color and gradient colors are not available)
INKJET PRINTING
Using inkjet printer, we can print the UID/identification number on the card and tag. Customized or standard printing are both available.
COLOR PRINTING
Artwork or graphic design will be provided by client’s side (*.AI、*.CDR、*.JPG), and we will print this and manufacture. (Any further details will be discussed before manufacturing).
OTHER

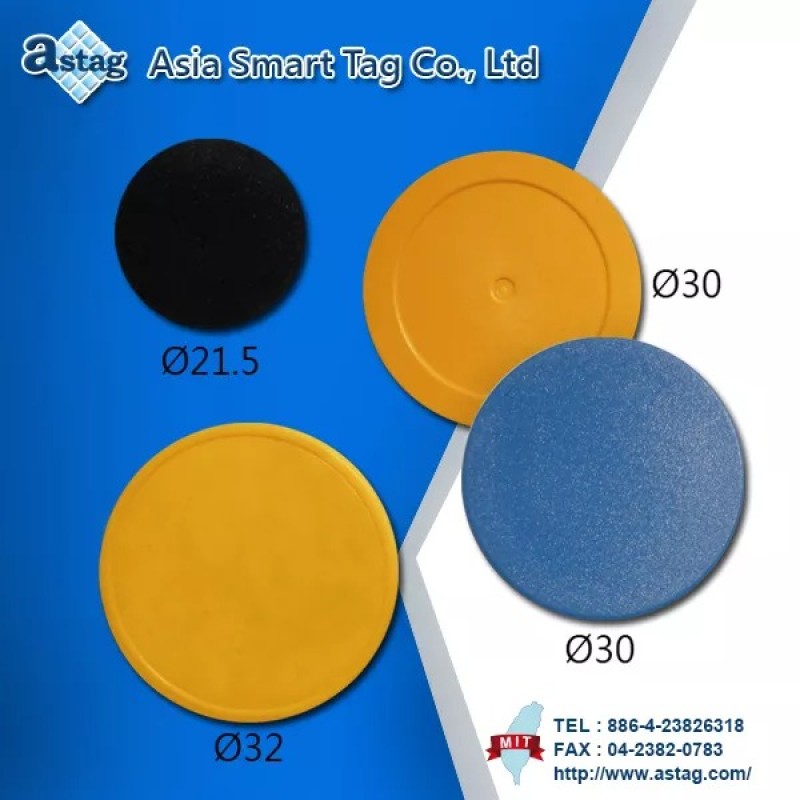

Tag size、colors and frequency can be customized.
Applications
RFID CARD & THE DUAL BAND INTEGRATEDCAR ENTERANCE CONTROL
By using proximity reader and remote control to monitor and identify parking lot access or building access. RFID also applies in car security parking access, identification, and monitoring.
