Handheld RFID Reader - 125K
Handheld RFID Reader - 125K
Type：1PML-007-DD18L
Frequency: 125KHz
Interface: BLE
ISO standard: ISO 11785
Interface: BLE
ISO standard: ISO 11785
Specifications
| Frequency | 125KHz |
| Interface | BLE |
| Read method | Read only |
| Reading range | Around 3cm, dependent on Tag type |
| Battery level | OLED 0 ~ 100% battery level display |

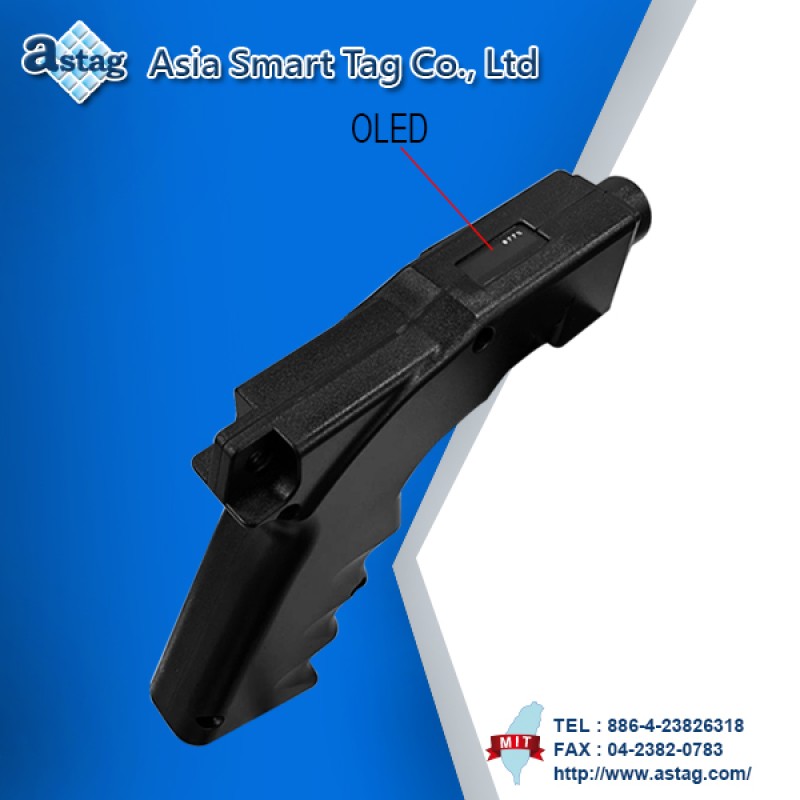

| UID Display | OLED 24 characters (customizable) |
| Battery | Built-in rechargeable battery (18650). |
| Charging | Supports Micro USB charging. |
| ISO standard | ISO 11785 |
| Support IC | EM、Temic |

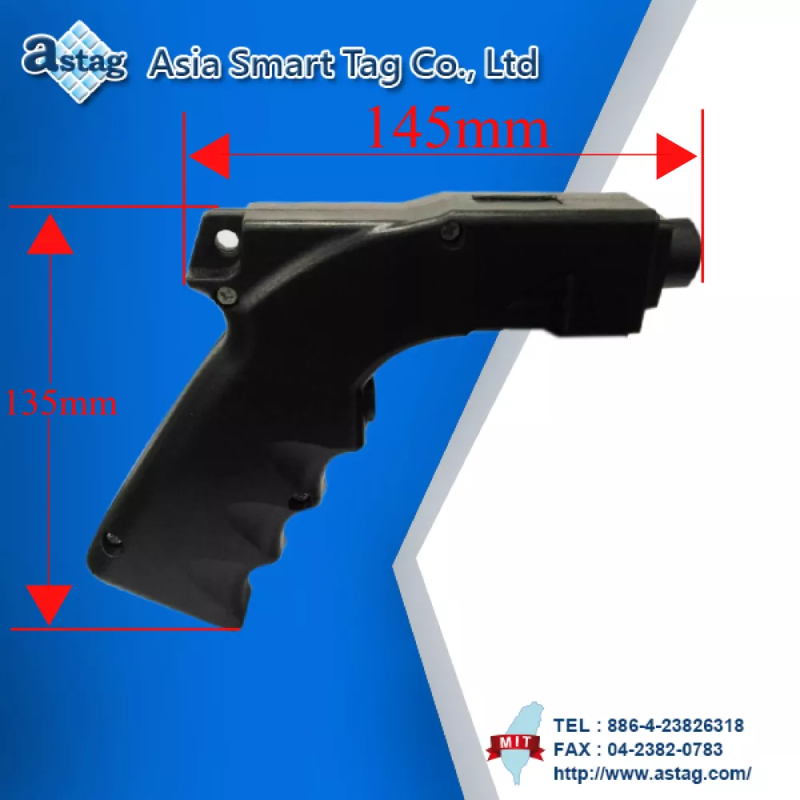

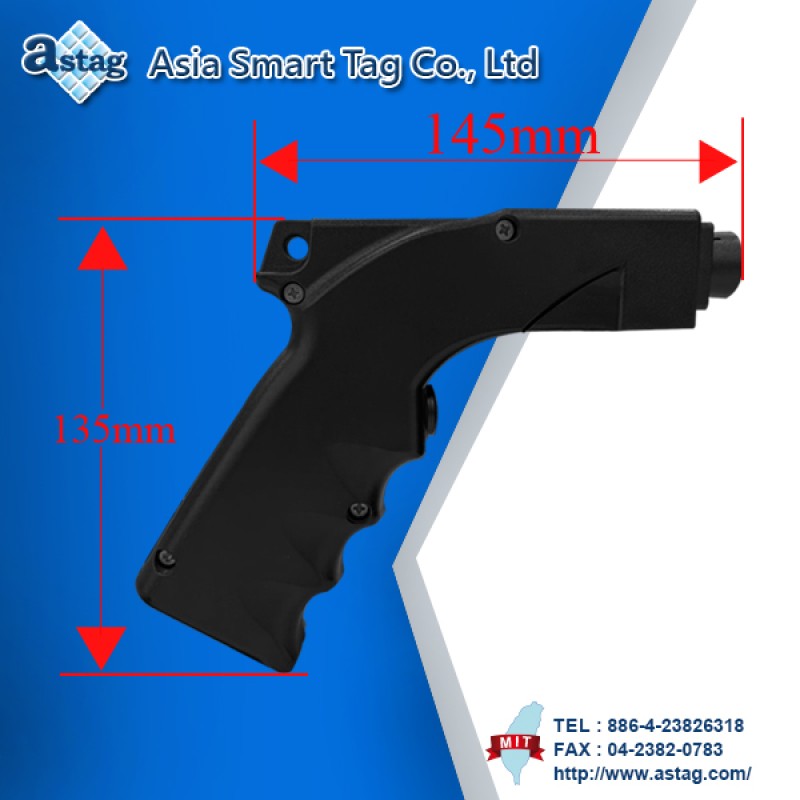

| Dimension | 145 x 135mm (Please look the Figure 2) |
| Thickness | 31 mm |
| Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | 0℃ ~ 70℃ |
| Applications |
1. Data reading 2. Logistics management 3. Warehouse management 4. Animal management 5. Inspection management |
Features
- Can work on the move.
- Can transfer data to mobile devices such as smartphones, tablets, and laptops.
- Due to the high device compatibility, it can be easily paired to the back-end server.
- Easy to carry.
- Strong and durable.
- low-price.
Applications
For example, in applications related to animal management, the handheld reader is paired with the tag, and the tag is implanted into the dog's collar, and the collar is scanned through the handheld reader. After scanning, the relevant information of the animal will be send to the back-end server (such as mobile phone, laptop, computer), which can improve management efficiency and are also suitable for cargo management.
