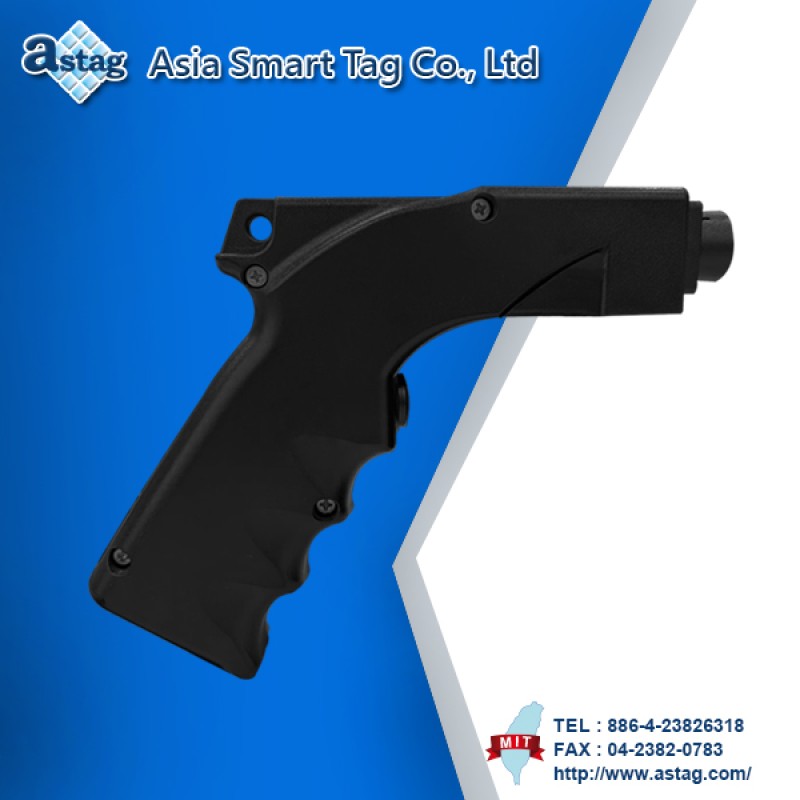

Handheld HF Reader
Handheld HF Reader
Type：1PMH-007-NR38L
Frequency: 13.56 MHz
Interface: BLE
ISO standard: ISO-14443A/B/C、ISO-15693
Interface: BLE
ISO standard: ISO-14443A/B/C、ISO-15693
Specifications
| Frequency | 13.56 MHz |
| Interface | BLE |
| Read method | Read only、Read/Write |
| Reading range | 1 ~ 2 cm, dependent on Tag type |
| Battery level | OLED 0 ~ 100% battery level display |

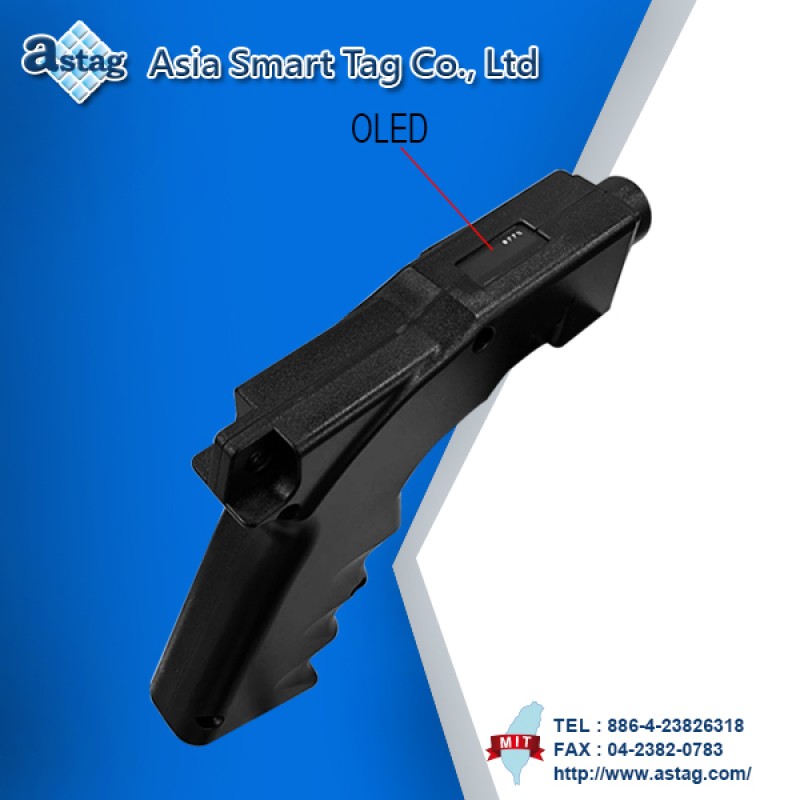

| UID Display | OLED 24 characters (customizable) |
| Battery | Built-in rechargeable battery (18650). |
| Charging | Supports Micro USB charging. |
| ISO standard | ISO-14443A/B/C、ISO-15693 |
| Data Transmission | Standard mode or Customized |

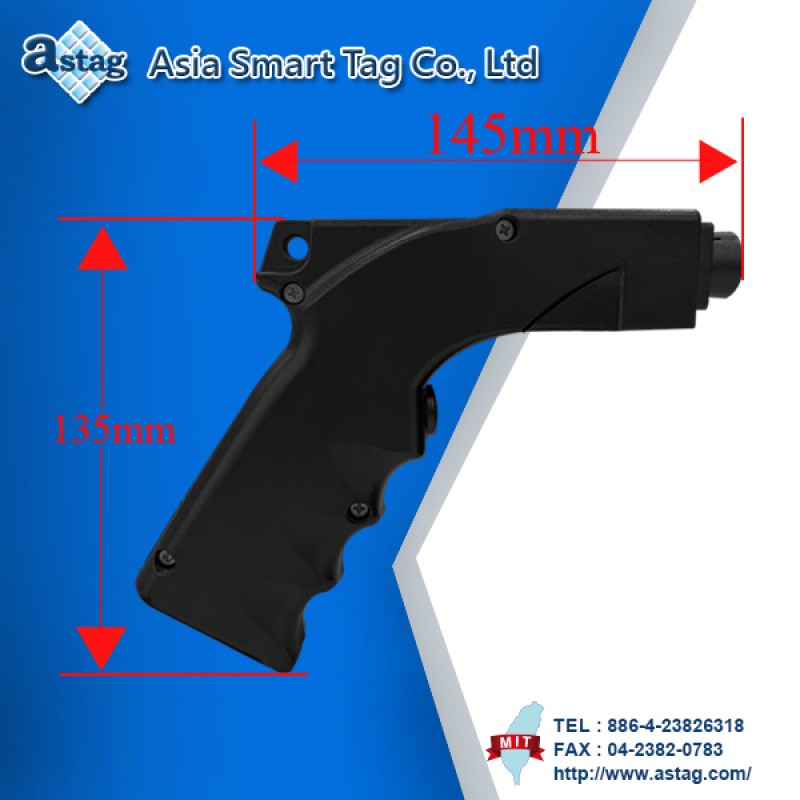

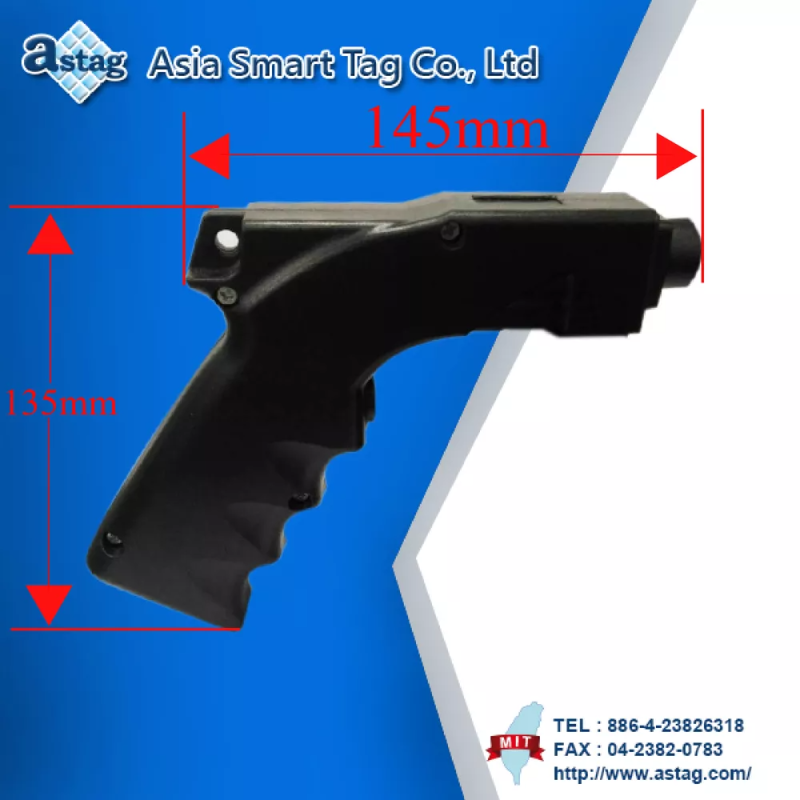

| Dimension | 145 x 135mm (Please look the Figure 2) |
| Thickness | 31 mm |
| Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | 0℃ ~ 70℃ |
| Applications |
1. Logistics management 2. Warehouse management 3. Animal management |
Features
- Can work on the move.
- Can transfer data to mobile devices such as smartphones, tablets, and laptops.
- Due to the high device compatibility, it can be easily paired to the back-end server.
- Easy to carry.
- Strong and durable.
- low-price.
Applications

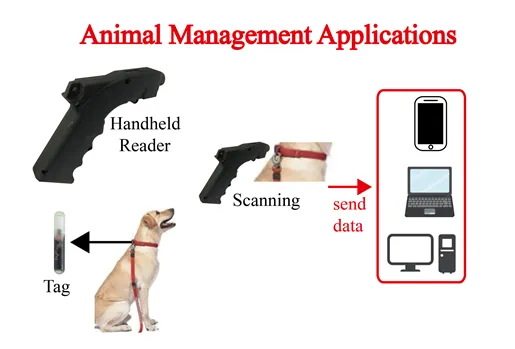

For example, in applications related to animal management, the handheld reader is paired with the tag, and the tag is implanted into the dog's collar, and the collar is scanned through the handheld reader. After scanning, the relevant information of the animal will be send to the back-end server (such as mobile phone, laptop, computer), which can improve management efficiency and are also suitable for cargo management.
