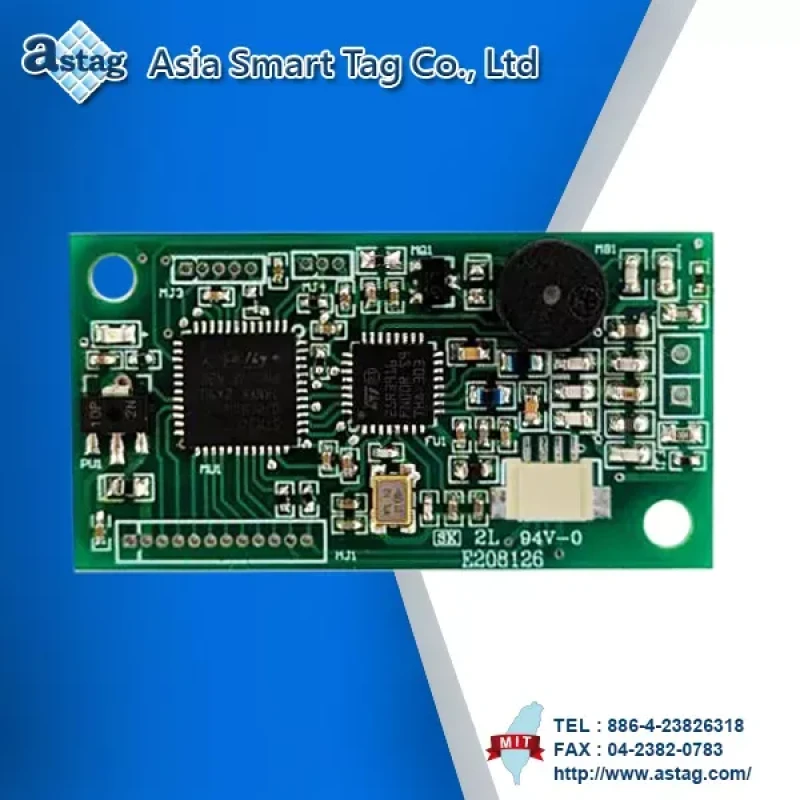

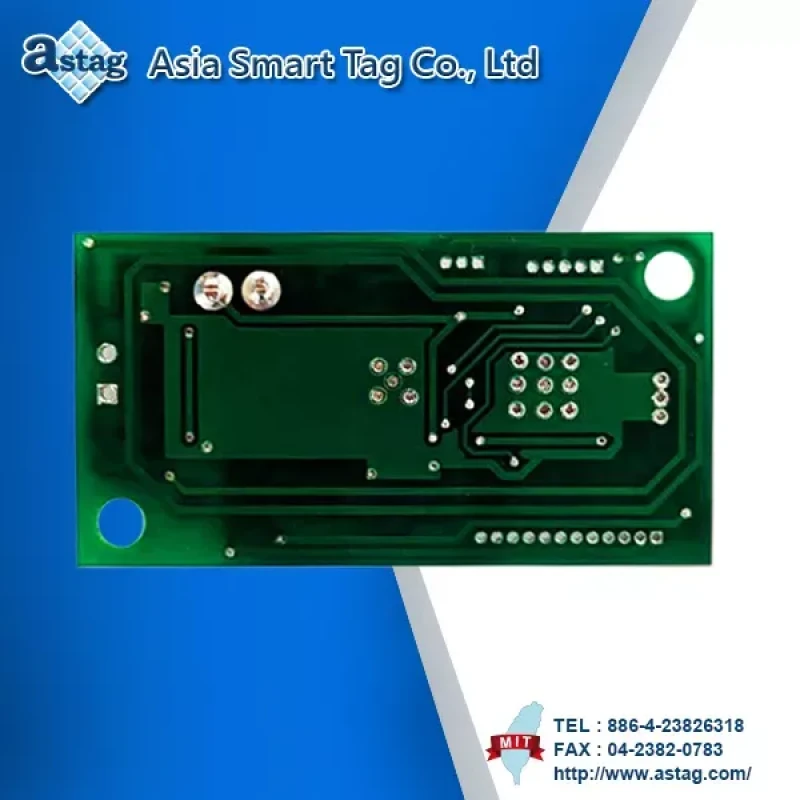

RFID HF Module
Description
- UART / USB-HID / SPI / I2C interface.
- Frequency Reader Module 13.56 MHz (frequency band).
- Data transmission can customizable.
- Support：Read/Write, On-board Antenna, can be connected to external antenna, buzzer and LED.
- Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
Specifications
| Product Name | RFID HF Module |
| Product No. | PMH-566 |
| Frequency band | 13.56 MHz |
| Read range |
5cm ±1 cm (Antenna On Board) |
| Interface |
UART / USB-HID / SPI / I2C |
| Baud-Rate | 115200, N, 8, 1 (customizable) |
| Input Voltage Range | DC 5V |
| UART Interface Voltage | 3.3 VDC |
| Dynamic mode | 93 mA |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature |
-30℃ ~ 70℃ |
| Dimensions | 20(L) x 41(W) x 8(H) mm |
| Audio / Visual Indication | Buzzer、LED |
| P2P |
AP2P mode：Initiator & Target PP2P mode：Initiator & Target |
|
HF reader supports |
ISO-14443A/B/C |
| ISO-15693 |
Interface
| Product No. | PMH-566R | PMH-566H |
| Interface | UART | USB-HID |
| Product No. | PMH-566S | PMH-566I |
| Interface | SPI | I2C |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
| Mifare desfire series | Y | Y | Y | |
| Mifare Ultralight series | Y | Y | Y | |
| Mifare Plus series | Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
Applications
- Industry
- Logistics Management
- Identity Recognition
- Payment EMVCo 3.0
