RFID Laundry Tag (UHF)
Specifications

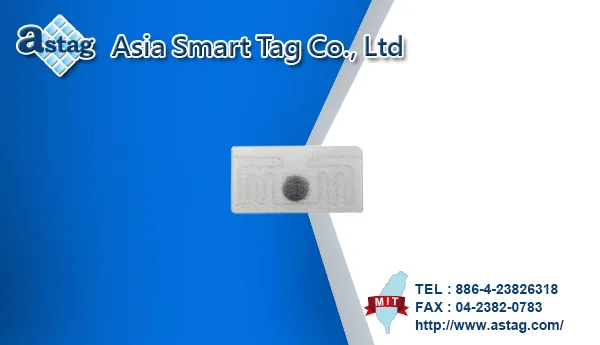

PTUW7-B2038
| Operating frequency | 860 ~ 868 MHz；902 ~ 928 MHz |
| Tested read range | 2 M |
| Tested reader | 1PRU258A0R2 |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC | ALIEN H3 / ALIEN H9 |
| NXP U Code 7 / NXP U Code 8 | |
| Monza 4E / Monza R6 / Monza 730 | |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read / Write |
| EPC-extended temperature |
-40°C ~ 200°C |
| Waterproof | IP66 |

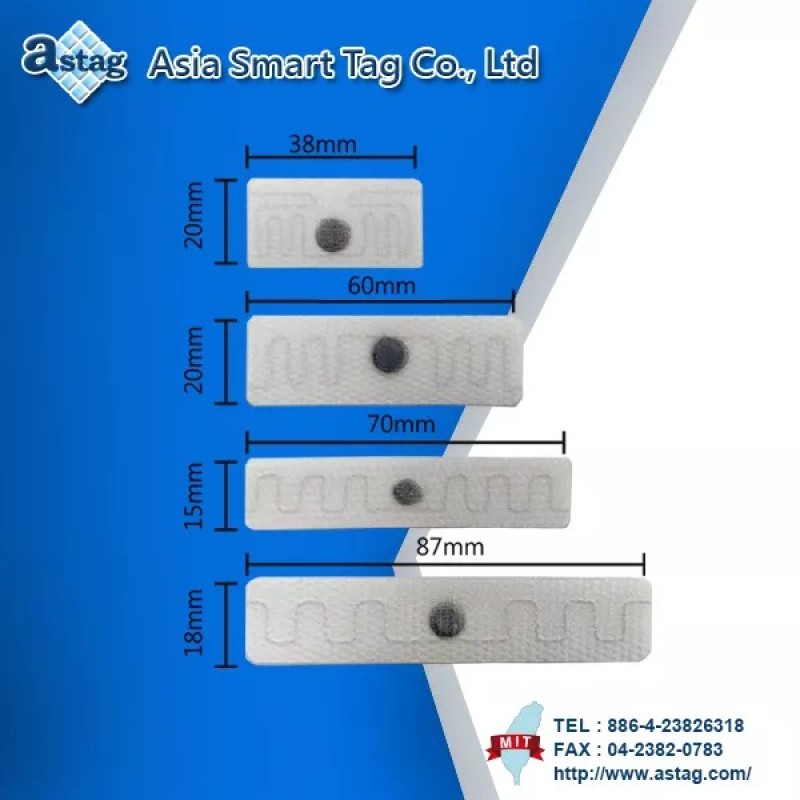

| size | 20 x 38 mm |
| Washing cycles | More than 200 times |
| Material | Cloth |

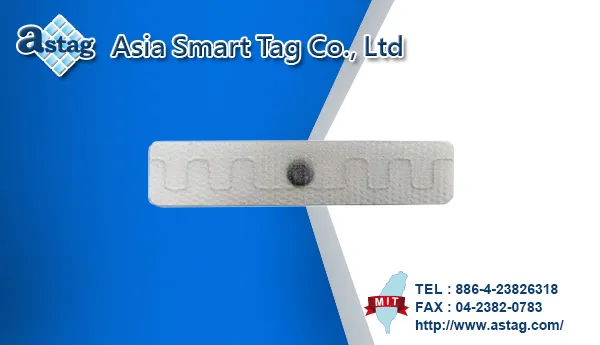

PTUW7-B2060
| Operating frequency | 860 ~ 868 MHz；902 ~ 928 MHz |
| Tested read range | 5 M |
| Tested reader | 1PRU258A0R2 |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC | ALIEN H3 / ALIEN H9 |
| NXP U Code 7 / NXP U Code 8 | |
| Monza 4E / Monza R6 / Monza 730 | |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read / Write |
| EPC-extended temperature |
-40°C ~ 200°C |
| Waterproof | IP66 |
| size | 20 x 60 mm |
| Washing cycles | More than 200 times |
| Material | Cloth |

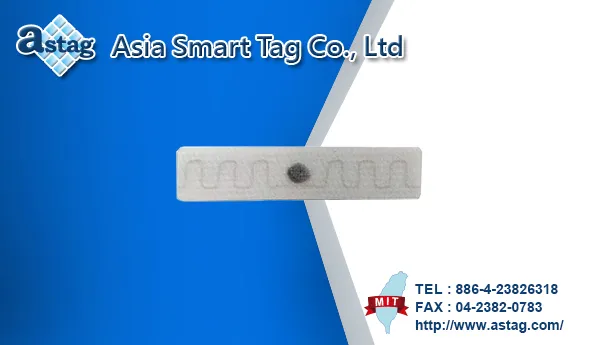

PTUW7-B1570
| Operating frequency | 860 ~ 868 MHz；902 ~ 928 MHz |
| Tested read range | 5 M |
| Tested reader | 1PRU258A0R2 |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC | ALIEN H3 / ALIEN H9 |
| NXP U Code 7 / NXP U Code 8 | |
| Monza 4E / Monza R6 / Monza 730 | |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read / Write |
| EPC-extended temperature |
-40°C ~ 200°C |
| Waterproof | IP66 |
| size | 15 x 70 mm |
| Washing cycles | More than 200 times |
| Material | Cloth |

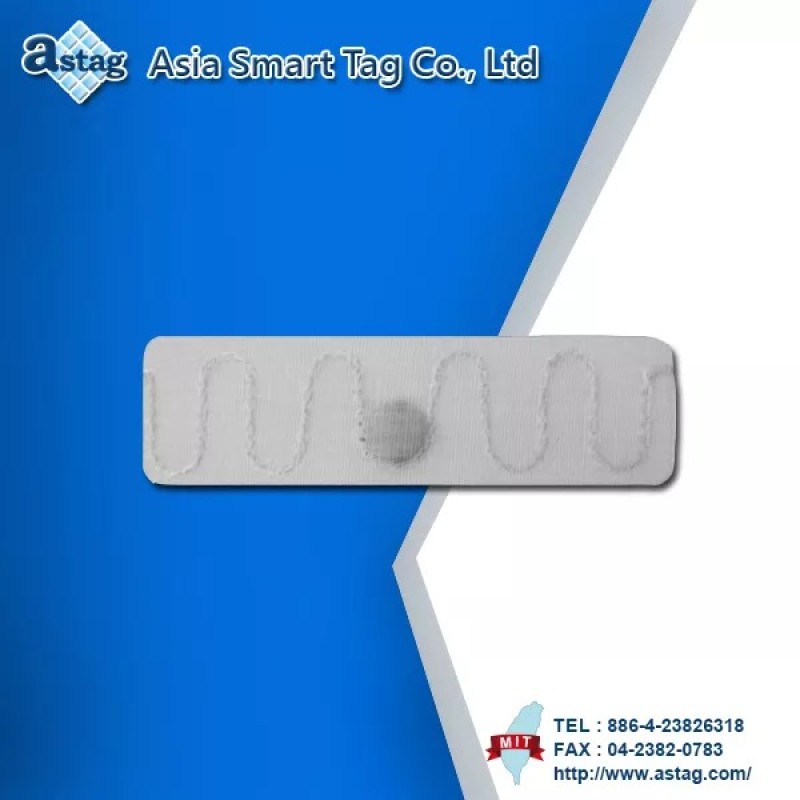

PTUW7-B1887
| Operating frequency | 860 ~ 868 MHz；902 ~ 928 MHz |
| Tested read range | 6 M |
| Tested reader | 1PRU258A0R2 |
| Power source | Passive |
| Transmission principle | HDX (Half Duplex) |
| ISO standard | ISO 18000-6C |
| EPC-C1G2 | |
| IC | ALIEN H3 / ALIEN H9 |
| NXP U Code 7 / NXP U Code 8 | |
| Monza 4E / Monza R6 / Monza 730 | |
| IC memory(Bits) | 800 |
| EPC memory(Bits) | 96 |
| TID memory(Bits) | 96 |
| Programming cycles | 100000 |
| Functionality | Read / Write |
| EPC-extended temperature |
-40°C ~ 200°C |
| Waterproof | IP66 |
| size | 18 x 87 mm |
| Washing cycles | More than 200 times |
| Material | Cloth |
Features
- Waterproof and washable.
- Light and cute appearance.
- Easy to track clothing/cloth.
- Widely usable.
