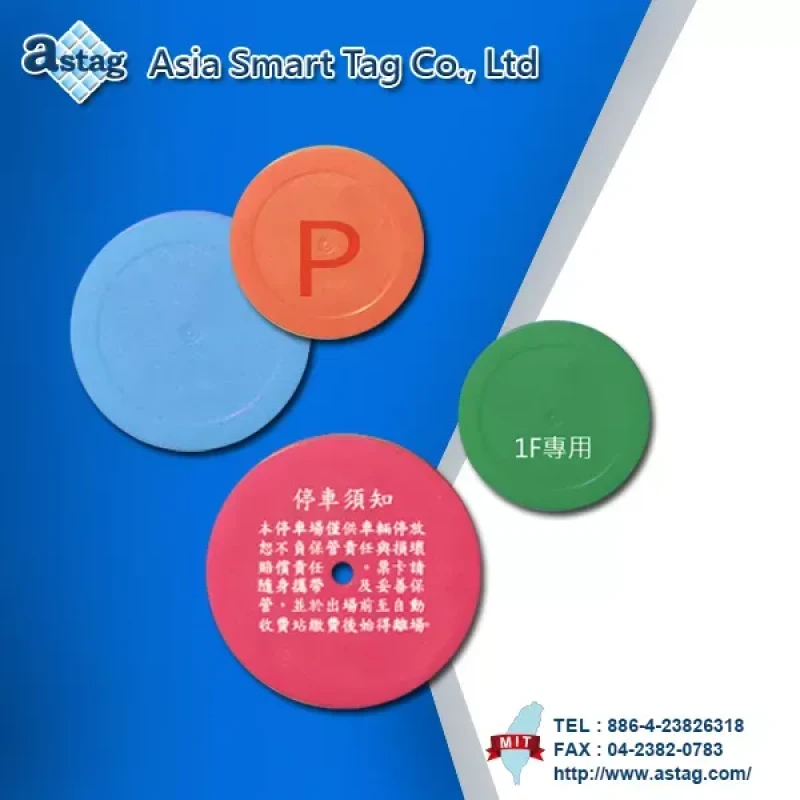

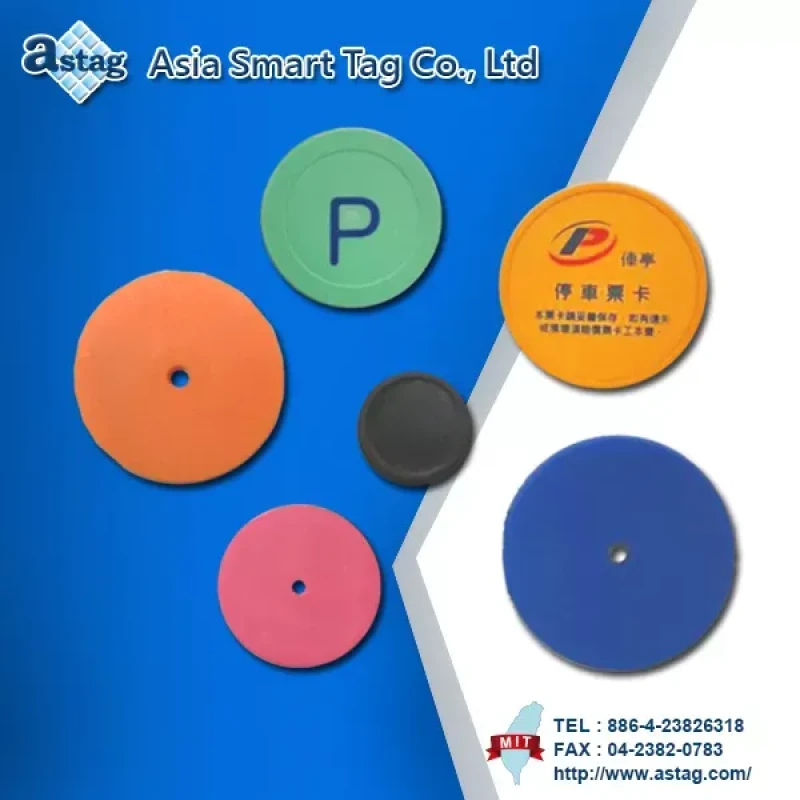

RFID Token - 32mm
RFID Token - 32mm
Type：PTH07MMARead range：50 mm
Frequency：13.56 MHZ ± 3%
Color：Customized color available
Specifications
| Frequency | 13.56 MHZ ± 3% |
| Item number | PTH07MMA |
| Size | 32Φ mm |
| Thickness | 3 mm |
| Read range | 50 mm |
| Weight | 3.2 g |
| Testing reader | PRH578 |
| Color | Red、Blue、Black、Yellow、Gray (Customized color available) |
| Material | ABS |
| Waterproof | IP68 |
| Operating temperature | -20℃ ~ 75℃ |
| Storage temperature | 0℃ ~ 70℃ |
| Process | Secondary Penetration Injection Molding |
| Package | 50 pcs / box |
| IC ITEM | MSR3200 |
| I-Code SLI | |
| I-Code SLI-S | |
| I-Code SLI-X | |
| I-Code SLI-X2 | |
| I-Code EPC | |
| EM4233 | |
| ST LRI2K | |
| TI Tag-it HF-I Standard | |
| Mifare S50 | |
| Mifare S50 UID 7 Byte | |
| Mifare S70 | |
| Mifare Ultralight | |
| Mifare desfire | |
| Mifare desfire2K | |
| Mifare desfire8K | |
| Mifare plus |
| Frequency | 13.56 MHZ ± 3% |
| Item number | PTH07MMP |
| Size | 32Φ mm |
| Thickness | 3 mm |
| Read range | 50 mm |
| Weight | 3.2 g |
| Testing reader | PRH578 |
| Color | Black |
| Material | PPL |
| Waterproof | IP68 |
| Operating temperature | -20℃ ~ 180℃ |
| Storage temperature | 0℃ ~ 70℃ |
| Process | Secondary Penetration Injection Molding |
| Package | 50 pcs / box |
| IC ITEM | MSR3200 |
| I-Code SLI | |
| I-Code SLI-S | |
| I-Code SLI-X | |
| I-Code SLI-X2 | |
| I-Code EPC | |
| EM4233 | |
| ST LRI2K | |
| TI Tag-it HF-I Standard | |
| Mifare S50 | |
| Mifare S50 UID 7 Byte | |
| Mifare S70 | |
| Mifare Ultralight | |
| Mifare desfire | |
| Mifare desfire2K | |
| Mifare desfire8K | |
| Mifare plus |
Features

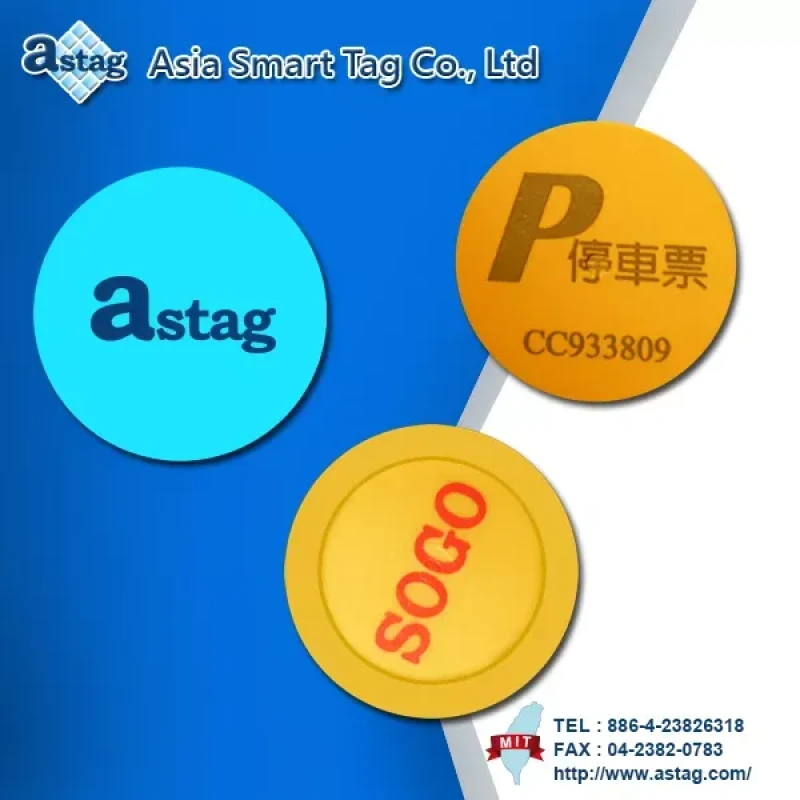

LASER CARVING
Laser carving is the new customization service. With provided pictures and carving specification, we can create your desired image or number with laser technology. (Single color and gradient colors are not available)
INKJET PRINTING
Using inkjet printer, we can print the UID/identification number on the card and tag. Customized or standard printing are both available.
COLOR PRINTING
Artwork or graphic design will be provided by client’s side (*.AI、*.CDR、*.JPG), and we will print this and manufacture. (Any further details will be discussed before manufacturing).
OTHER
Tag size、colors and frequency can be customized.
Applications
RFID CARD & THE DUAL BAND INTEGRATEDCAR ENTERANCE CONTROL
By using proximity reader and remote control to monitor and identify parking lot access or building access. RFID also applies in car security parking access, identification, and monitoring.
