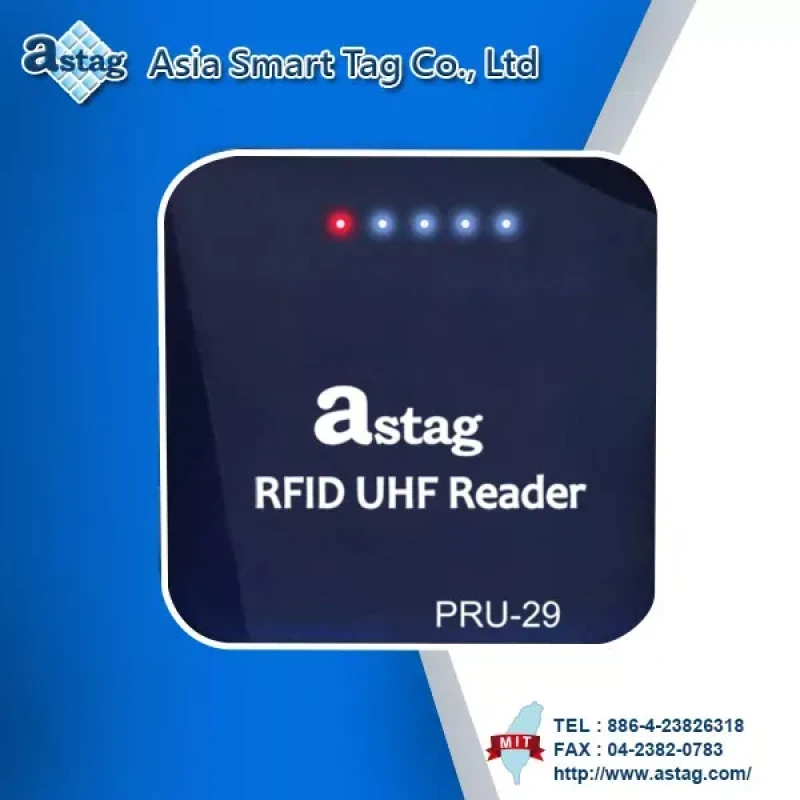

RFID UHF Reader
Specifications
| Model | PRU-29R |
| Frequency | NA: 902~928 MHz Eu: 865~868 MHz Tw: 922~928 MHz |
| Interface | USB-HID、Wiegand34/26、RS-485、SPI、I2C |
| ISO standard | ISO 18000-6C、EPC C1G2 |
| Reading Distance | 15 m |
| Input Power | DC 12V～24V/2A |
| Output Power | 30dbm / 1W |
| Card used | 6000 |
| Memory | 12000 |

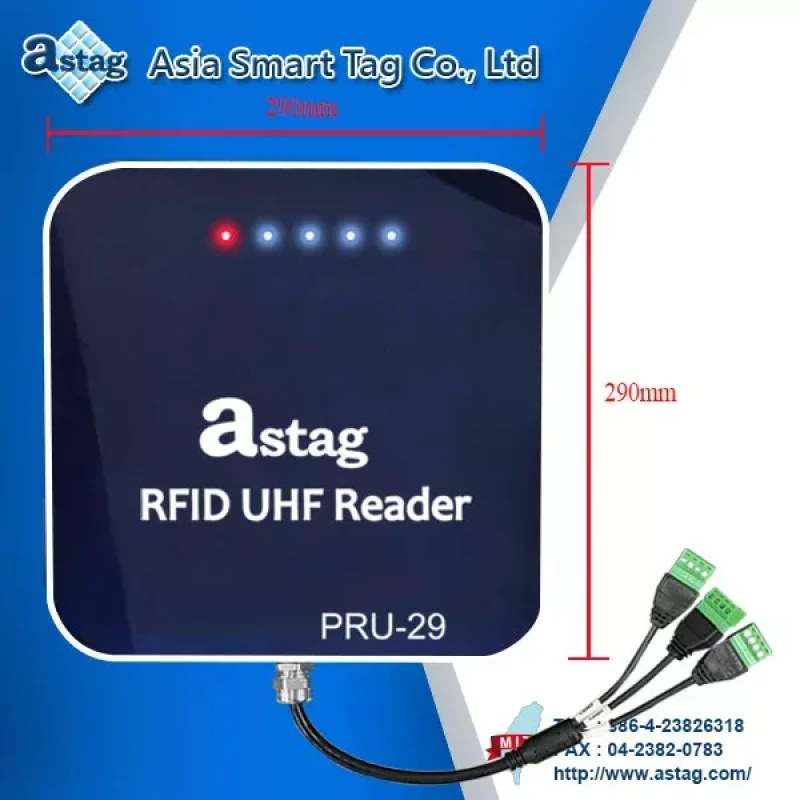

| Size | 290 x 290 x 37mm (L x W x H) |
| I/O |
Relay*1, Input*1, Output*4 |
| Software Supports | Windows 10/11 |
| Metal casing | Durable, impact-resistant, and anti-interference. |
| Waterproof rating | IP68 |
| Model | PRU-29T |
| Frequency | NA: 902~928 MHz Eu: 865~868 MHz Tw: 922~928 MHz |
| Interface | USB-HID、TCP/IP(PoE)、Wiegand34/26、RS-485、SPI、I2C |
| ISO standard | ISO 18000-6C、EPC C1G2 |
| Reading Distance | 15 m |
| Input Power | DC 12V～24V/2A |
| Output Power | 30dbm / 1W |
| Card used | 6000 |
| Memory | 12000 |
| Size | 290 x 290 x 37mm (L x W x H) |
| I/O |
Relay*1, Input*1, Output*4 |
| Software Supports | Windows 10/11 |
| Metal casing | Durable, impact-resistant, and anti-interference. |
| Waterproof rating | IP68 |
Features
Function：
1. Station number.
2. Can Read/Write.
3. On-board Antenna.
Advantages：
1. Longer read ranges.
2. Higher data transfer rates.
3. The ability to read multiple tags.
Supports：
1.Read tags from specific areas.
2.Automatic identification and filtering function.
3.Automatically adjust the tag reading speed according to the temperature of the reader.
Other Supports：
1.Host thermal regulation.
2.Built-in I/O control.
3.Signal strength indicator light.
4.Operation response indicator light.
PRU-29 Radiation pattern：
|

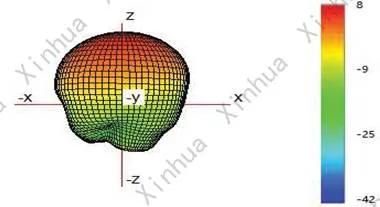

(1) Typicall Free Space 3D Radiation Pattern at 902MHz(unit:dBi): |

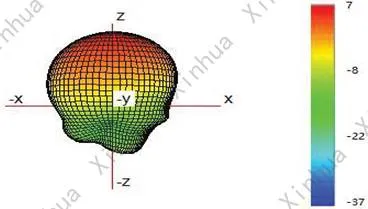

(2) Typicall Free Space 3D Radiation Pattern at 916MHz(unit:dBi): |

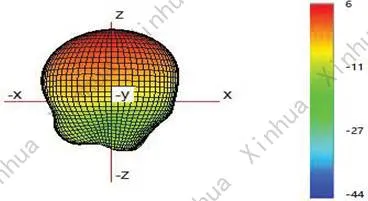

(3) Typicall Free Space 3D Radiation Pattern at 928MHz(unit:dBi): |
|
|
|
|
Applications
1. Industry 4.0
2. Industrial manufacturing
3. Smart warehouse
4. Smart agriculture
5. Container management
