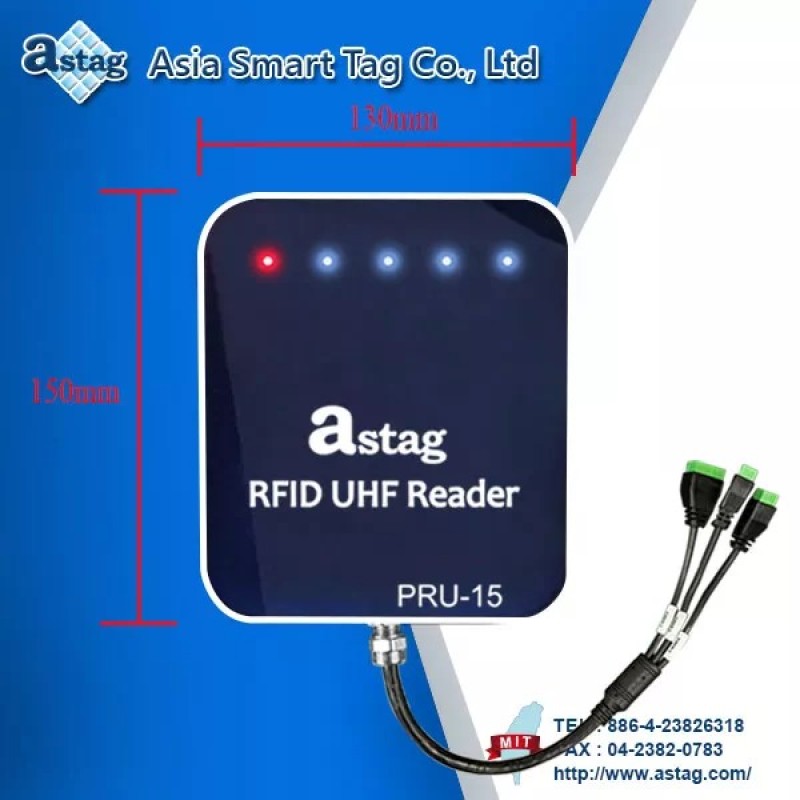

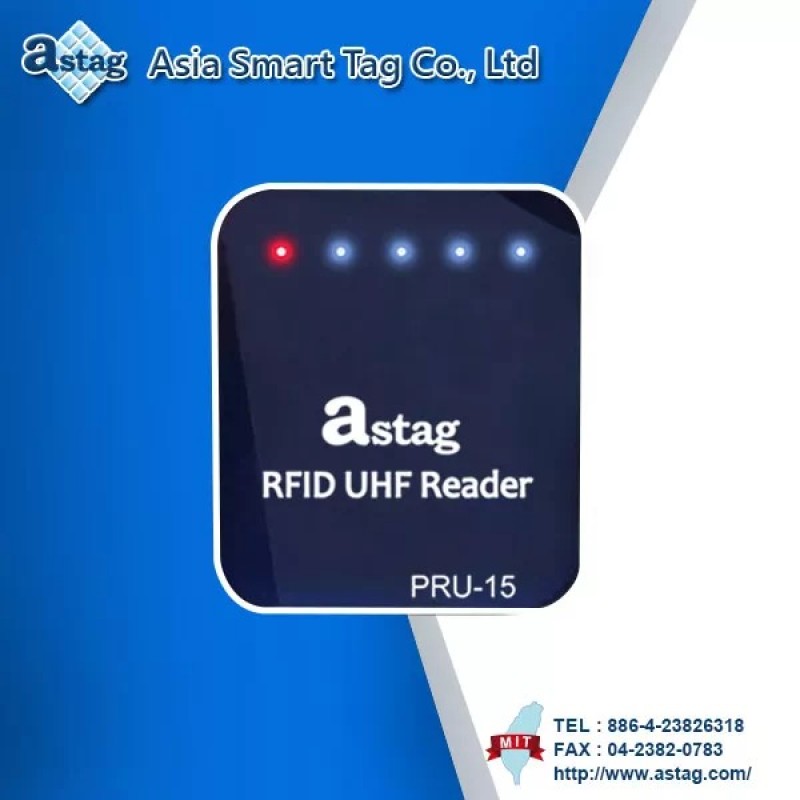

RFID UHF Reader
Specifications
| Model | PRU-15R |
| Frequency |
NA: 902~928 MHz |
| Interface | USB-HID、Wiegand34/26、RS-485、SPI、I2C |
| ISO standard | ISO 18000-6C、EPC C1G2 |
| Reading Distance | 8m |
| Input Power | DC 12V～24V/2A |
| Output Power | 30dbm / 1W |
| Card used | 6000 |
| Memory | 12000 |
| Size | 130 x 150 x 34mm (L x W x H) |
| I/O | Output: Relay*1、Input: Optocoupler*1、Output/Input*2 |
| Software Supports | Windows 10/11 |
| Metal casing | Durable, impact-resistant, and anti-interference. |
| Waterproof rating | IP68 |
| Model | PRU-15T |
| Frequency | NA: 902~928 MHz Eu: 865~868 MHz Tw: 922~928 MHz |
| Interface | USB-HID、TCP/IP(PoE)、Wiegand34/26、RS-485、SPI、I2C |
| ISO standard | ISO 18000-6C、EPC C1G2 |
| Reading Distance | 8m |
| Input Power | DC 12V～24V/2A |
| Output Power | 30dbm / 1W |
| Card used | 6000 |
| Memory | 12000 |
| Size | 130 x 150 x 34mm (L x W x H) |
| I/O | Output: Relay*1、Input: Optocoupler*1、Output/Input*2 |
| Software Supports | Windows 10/11 |
| Metal casing | Durable, impact-resistant, and anti-interference. |
| Waterproof rating | IP68 |
Features
Supports：
1. Station number、Can External Antenna、Control Switch connection.
2. These interfaces allow the module to communicate with external devices such as computers, microcontrollers, or network servers.
Function：
1. Can Read/Write.
2. On-board Antenna.
3. Impact-resistant.
Advantages：
1. Longer read ranges.
2. Higher data transfer rates.
3. The ability to read multiple tags.
Applications
Applications：
1. Supply chain management
2. Storage management
3. Library management
