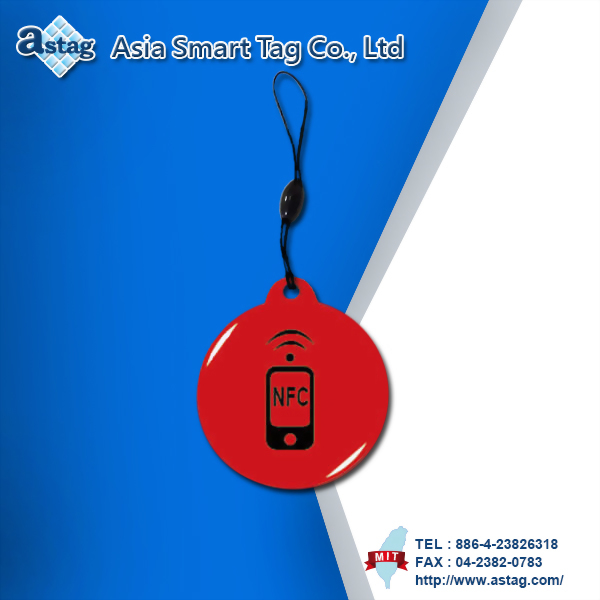

NFCTag PCH16I
Frequency band：13.56 MHz Band
Size：28 Φmm
Model :
PCH-16I
| Frequency band | 13.56 MHz Band |
| Size | 28 Φmm |
| Read range | Up to 5cm(Depends on the reader) |
| Testing reader | PRH578 |
| Tag weight | 2.3 g |
| Material | PVC + Poly |
| Interface | NFC type 2 |
| Serial number | 7 byte UID |
| Color | Customized color available |
| EEPROM memory read times | About 10 million times |
| EEPROM memory retention | About 10 years |
| Operating temperature | -40°C ~ 60°C |
| Set a password | Yes |
| Package |
50 pcs / box 20 box / carton |
| Anti-collision | true |
|
Memory |
144 Byte,512 Byte,1K Byte |
| ISO standard | ISO-14443A / ISO-14443B / ISO 15693 |
|
IC ITEM |
Mifare standard series / I-Code series Mifare desfire series / NFC series / ST25T series |
Format Chart
| Format Chart (H=HEX,D=DEC) | |
| Coding Format | Number |
| 6H8D | 05492794 |
| 8H10D | 0022270010 |
| WEG24 | 083,53306 |
| WEG32 | 00339,53306 |
| 10H10D | 4446779450 |
| 10H14D | 00064446779450 |
| 8H | 0153D03A |
| 10H | 0F-0153D03A |
| 12H | 07215230* |
|
65535- WEG24 five figures at the back |
12229 |
If you want to customiz, please provided Us AI file.
Customized projects
LASER CARVING
Laser carving is the new customization service. With provided pictures and carving specification, we can create your desired image or number with laser technology. (Single color and gradient colors are not available)
INKJET PRINTING
Using inkjet printer, we can print the UID/identification number on the card and tag. Customized or standard printing are both available.
COLOR PRINTING
Artwork or graphic design will be provided by client’s side (*.AI、*.CDR、*.JPG), and we will print this and manufacture. (Any further details will be discussed before manufacturing).
OTHER
Tag size、colors and frequency can be customized.
．NFC wake up devices/appliances
．Bluetooth pairing
．Wi-Fi setting
．Smart poster
．Toys
．Anti-tampering sticker/label

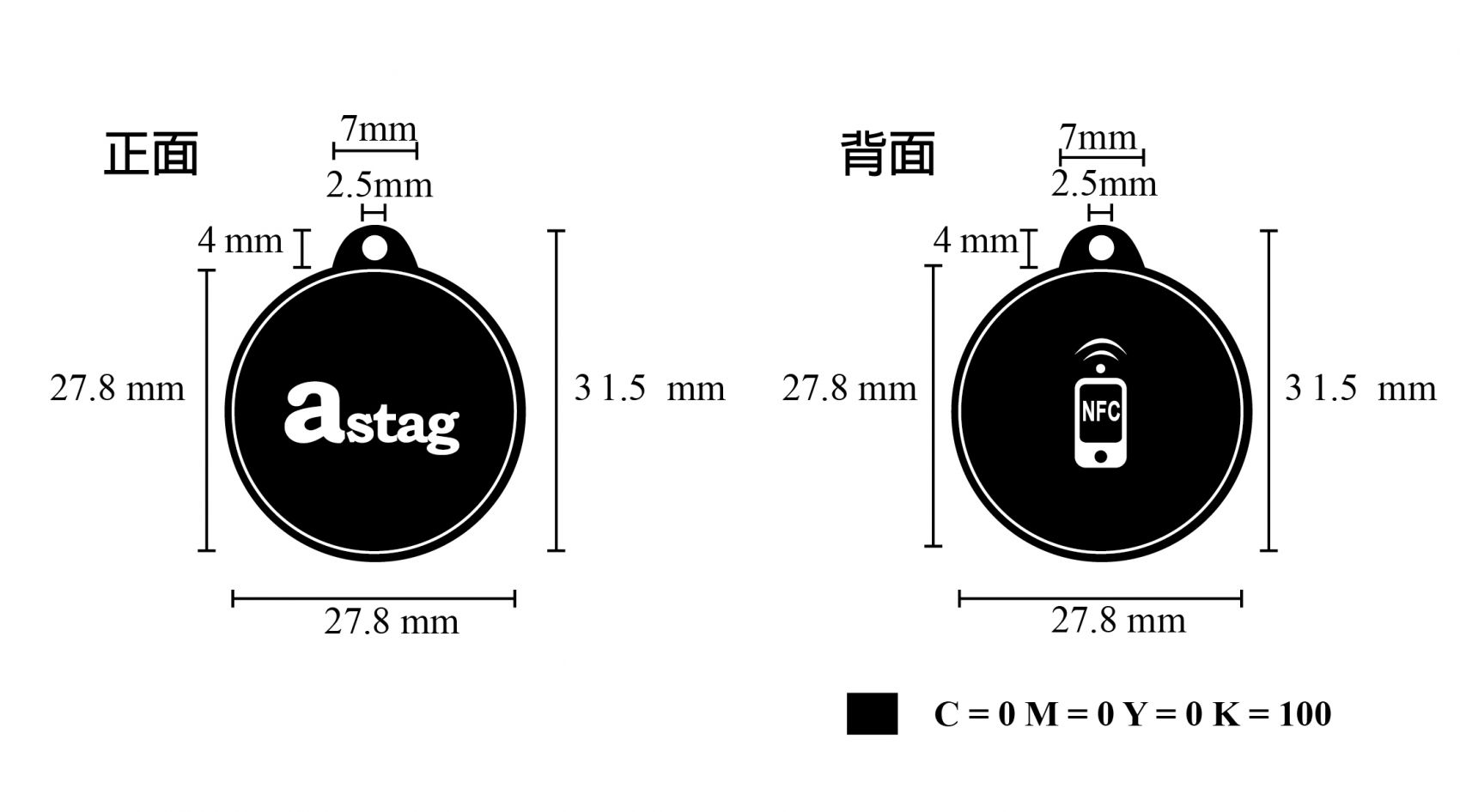

Dimensions
