UHF RFID 4 Ports Reader

　
Frequency：860 ~ 960 MHz Band
Read range：Up to 10 m(depend on Reader)
Model : PRUC4IR2

Frequency band 840 ~ 960 MHz
Read range Up to 10 m(depend on Reader)
Host interface RS232
LAN
WiFi (Option)
Current consumption(Dynamic Mode) 800 mA
Current consumption(Standby) ≤ 100 mA
Radio-frequency power rising time ≤ 500 μs
Radio-frequency power droping time ≤ 500 μs
Working voltage 12 V
Tag protocol EPC C1G2
ISO18000-6C
Operating temperature -20℃ to +35℃
Dimensions 117 x 76 x 20 mm(L x W x H)

  • ．UHF RFID Reader uses R2000 chips, It max power output is 30dBm

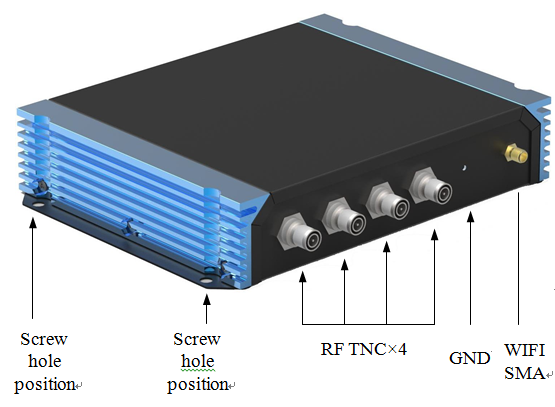

  • ．RP TNC ports, with an 8dbi circular polarized antenna, reading distance can reach 10 meters maximum identifying speed can reach 400 tags/sec
  • ．8 LED lights, real-time display working status
  • ．Many external ports, Including network interface, RS232, GPIO_IN*4, GPIO_OUT*4, LAN, WIFI(Option), can meet different client’s requirement
  • ．Excellent read and write performance, it is suitable for complicated environment application, for example logistics, clothing, asset management etc
