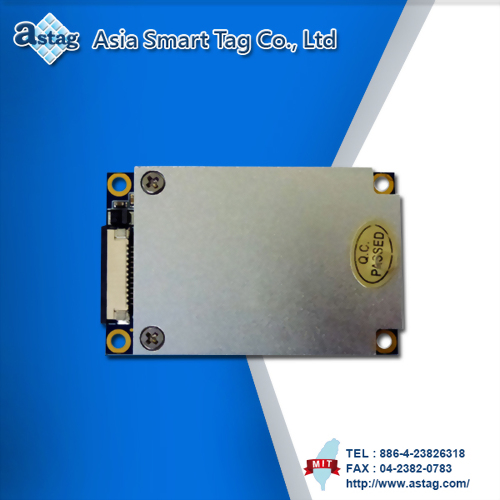

RFID UHF Reader Module - UART

Model : PRUM1IR2RP1
  • Interface RFID UHF Reader Module - UART
    Part number PRUM1IR2RP1
    Host interface UART
    RS-232
    RS-485
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency hopping
    speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags 400/s
    Working voltage 12 V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 800 mA
    Current consumption
    (Standby)     		≤ 100 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 157(L) x 50(W) x 8.7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM1IR2RP1 PRUM1IR2BP1 PRUM1IR2DP1 PRUM1IR2WP1
    Interface UART RS232 RS485 Wiegand
  • Interface RFID UHF Reader Module - UART
    Part number PRUM1IR2BP1
    Host interface UART
    RS-232
    RS-485
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency hopping
    speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags 400/s
    Working voltage 12 V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 800 mA
    Current consumption
    (Standby)     		≤ 100 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 157(L) x 50(W) x 8.7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM1IR2RP1 PRUM1IR2BP1 PRUM1IR2DP1 PRUM1IR2WP1
    Interface UART RS232 RS485 Wiegand
  • Interface RFID UHF Reader Module - UART
    Part number PRUM1IR2DP1
    Host interface UART
    RS-232
    RS-485
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency hopping
    speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags 400/s
    Working voltage 12 V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 800 mA
    Current consumption
    (Standby)     		≤ 100 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 157(L) x 50(W) x 8.7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM1IR2RP1 PRUM1IR2BP1 PRUM1IR2DP1 PRUM1IR2WP1
    Interface UART RS232 RS485 Wiegand
  • Interface RFID UHF Reader Module - UART
    Part number PRUM1IR2WP1
    Host interface UART
    RS-232
    RS-485
    Wiegand (option)
    Channel bandwidth 250 KHz(customizable)
    Frequency hopping
    speed     		≤ 2 s
    Tag protocol EPC C1G2
    ISO18000-6C
    Muti-tags 400/s
    Working voltage 12 V
    Max TX power 30 dBm
    Stepping interval 1 dB
    Working current 800 mA
    Current consumption
    (Standby)     		≤ 100 mA
    Operating temperature -30℃ ~ 65℃
    Storage temperature 0℃ ~ 30℃
    Dimensions 157(L) x 50(W) x 8.7(H) mm
    ．UHF RFID Reader uses R2000 chips,it max power output is 30dBm.
    ．Maximum identifying speed can reach 400 tags/sec.
    ．Many external ports, Including RS232, GPIO*3, can meet different client’s                  requirement.
    ．Excellent read and write performance, it is suitable for complicated environment        application, for example logistics, clothing, asset management etc.

    Interface
    Product
    number     		PRUM1IR2RP1 PRUM1IR2BP1 PRUM1IR2DP1 PRUM1IR2WP1
    Interface UART RS232 RS485 Wiegand
