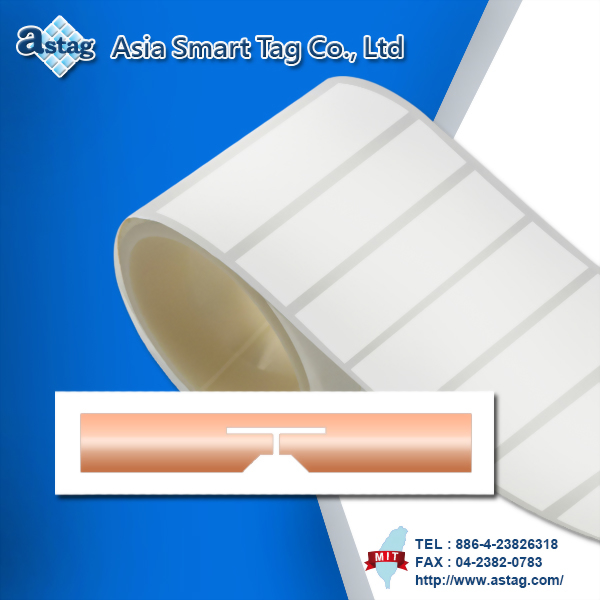

Label
Model :
PLU025105-2
| Inlay | Label | |
| Iteam number | PIU020094-2 | PLU025105-2 |
| Size | 20 x 94 mm(L x W) | 25 x 105 mm(L x W) |
| Frequency band | 866~928 MHz Band | |
| Read range (Depends on the reader) | Up to 13M | |
| Testing reader | 1PRU258A0R2 | |
| Transmission principle | HDX(Half Duplex) | |
| EPC | 96-bits EPC Memory, extensible to 480-bits | |
| Functionality | Read / Write | |
| Modulation | ASK | |
| Antenna material | Copper | |
| Label Cover material | - | Glossy Paper (PP PEPA Paper) |
| Label cover color * | - | White(Can color printing, marking) |
| Tube material | ABS | |
| Tube size | 3 Inch | |
| Package | 1000 pcs/roll , 4 roll/carton | |
| Operating temperature | -30°C ~ 75°C | |
| Storage temperature | -20°C ~ 35°C | |
| ISO standard | ISO 18000 - 6C(EPC C1 G2) | |
| IC item |
Alien Higgs 4 Alien Higgs 9 ※Any IC is acceptable | |
Dimensions
Label
