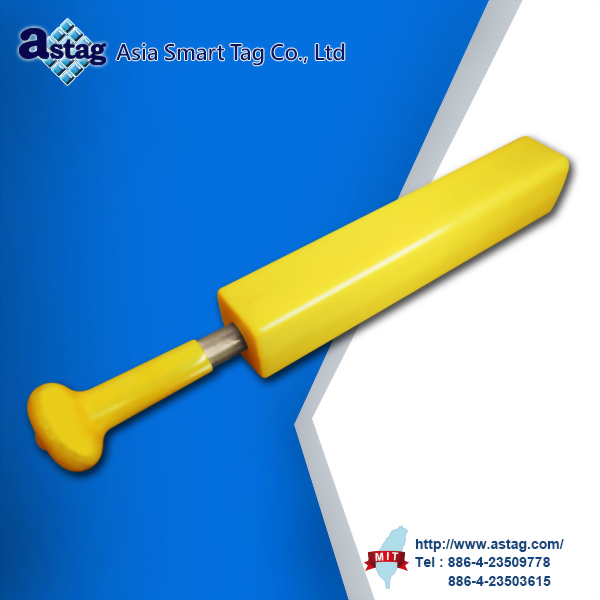

Seal PTUI7

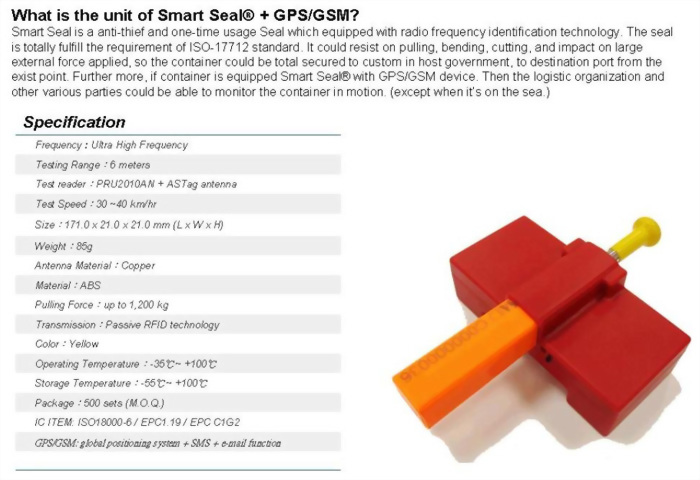

Model : PTUI7
Frequency UHF（902 ~ 928 MHz）
Read range 6 m
Testing reader Standard PRU2010BR、PRU461
Testing velocity 70 km
Size 171 x 21 x 21 mm(L x W x H)
Weight 85 g
Shell material Copper、Iron
Antenna material Copper
Material ABS
Transmission Passive
Max pulling force Conform to ISO-17772
Color Red、Yellow、Black、Gray、Green(can be customized)
Operating temperature -20℃ ~ +70℃
Storage temperature 0℃ ~ +30℃
Package 500 sets（M.O.Q.）
Protocol ISO 18000 - 6C(EPC C1 G2)
IC ITEM TI / NXP UCODE EPC G2 / Impinj Monza 4 / Alien H3
GPS / GSM Global Positioning System / SMS + E-mail Function

This will increase the safety of container movement and ensure the safety of container movement, thereby effectively reducing the customs clearance cost of the industry, while preventing illegal smuggling and creating a safe and convenient customs clearance environment.


．Can not be reused.

．Prevent tampering with data.

．Prevent counterfeiting.

．Fast pass.



TRANSPORTATION　MANAGEMENT

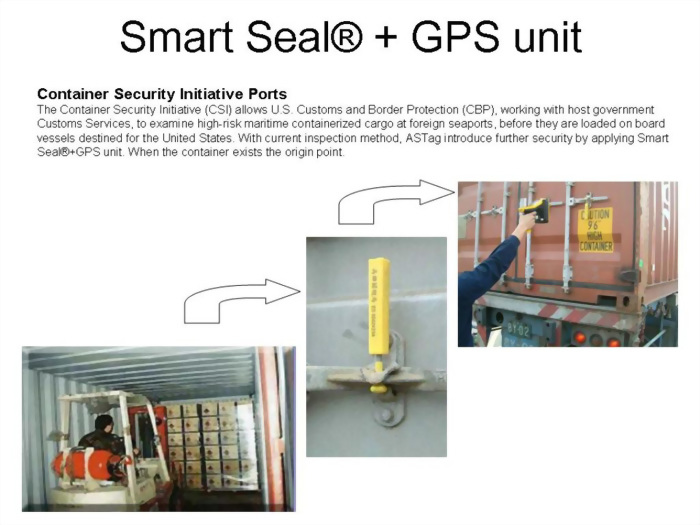

Since the tragic September 11 attacks, there's a highlighted need from US government for terrorist attacks prevention and security. In the US government security plan, it includes RFID H/W, smart seal, etc. to prevent destruction of container or illegal smuggling at safe and scalable solution. These technologies are also used at Taiwan's custom border. Other application: prisoners transportation, oil transportation, or any other transportation that require extreme high level security protection.
