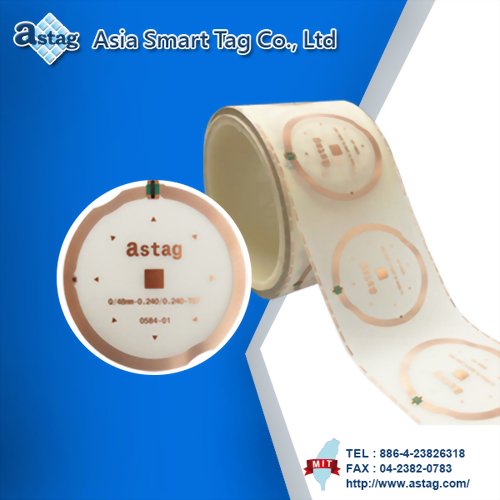

Inlay | Label | |
Iteam number | PIHQ02128 | PLHQ025 |
Size | Ø21.3 mm | Ø25 mm |
Frequency band | 13.56 MHz ±3% | |
Read range (Depends on the reader) |
Up to 3cm | |
Testing reader | PRH578 | |
Transmission principle | passive | |
Antenna substrate | PET | |
Antenna material | copper | |
Label Cover material | - |
Glossy Paper (PP PEPA Paper) |
Tube material | ABS | |
Tube size | 3 Inch | |
Package | 1000 pcs/roll , 4 roll/carton | |
Operating temperature | -30°C ~ 75°C | |
Storage temperature | -20°C ~ 35°C | |
ISO standard | ISO-14443B | |
IC item |
SRI X 4K ※Any IC is acceptable |
Dimensions
Inlay Size Information (Unit:mm)
X axis
Y axis
Position
Size
Tolerance
Position
Size
Tolerance
A
21.28
±0.2
B
21.28
±0.2
C
34
±0.3
D
48
±0.3
E
12.72
±0.2
F
13.36
±0.5
G
76.2
±0.5
Frequency
13.56Mhz
±3%
Label Size Information (Unit:mm)
X axis
Y axis
Position
Size
Tolerance
Position
Size
Tolerance
A
21.28
±0.2
B
21.28
±0.2
C
21.28
±0.2
D
25
±0.2
E
38
±1.5
F
60
±1
G
2.36
±1.5
H
2.36
±1.5
I
12
±1.5
J
17
±1.5
K
76.2
±0.5
Frequency
13.56Mhz
±3%
