Remote Control Transmitter
Model :
RH268R
| Frequency range | 315MHz ; 320MHz ; 434MHz (Can Customized) | |
|---|---|---|
| Code | Hopping Code | |
| Output current | 2A1B , 3A(Can Customized) | |
| Consumptive current | 98 mA | |
| Sensitivity | -106 dbm | |
| Noise equivalent BW NEB | 4KHz Max | |
| Max loading power | 0.3 W | |
| Input voltage | AC 110V / 220V | |
| Output salf loading | AC 6A / 120V | |
| Color |
Black、Green (Customized color available) |
|
| Weight | 400 g | |
| Size | 185 x 95 x 48 mm(L x W x H) | |
．Coded system: Hopping code system.
．Every Remote Control Transmitter owns unique independent
code.
．Easy installation & easy to use.
．Hopping code system can prevent Remote
Control from being copied: high security.
．Can be utilized with electric roll-up shutter &
electric high-speed door.
．AC Input voltage range: AC 110V / 220V.
Interface
．The coding method of the RH268R is a Hopping Code system. Each Remote Control Transmitter has its own independent code. The Hopping Code system can prevent the remote control from being copied, and has high security.
．This product uses a microcomputer password combination with an anti-scanning and anti-copying design. There is no need to worry about password duplication to maintain the safety of residents.
．It has AC power supply 110V/220V, automatic jump function, and up and down interchange function.
．The RH268R has high induction reception and long remote control distance; the shell is sturdy and durable, and the wiring is simple.
．The RH268R has a memory device, so if there is a power outage or power failure, the records stored in the host will not be lost.

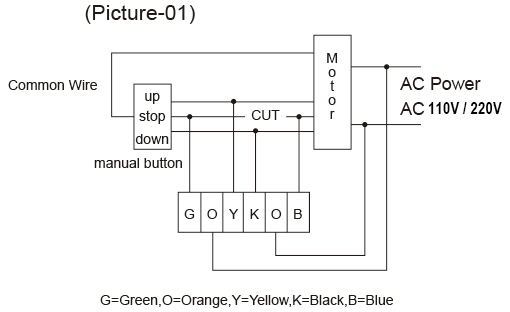

RH268R Wiring Installation Manual

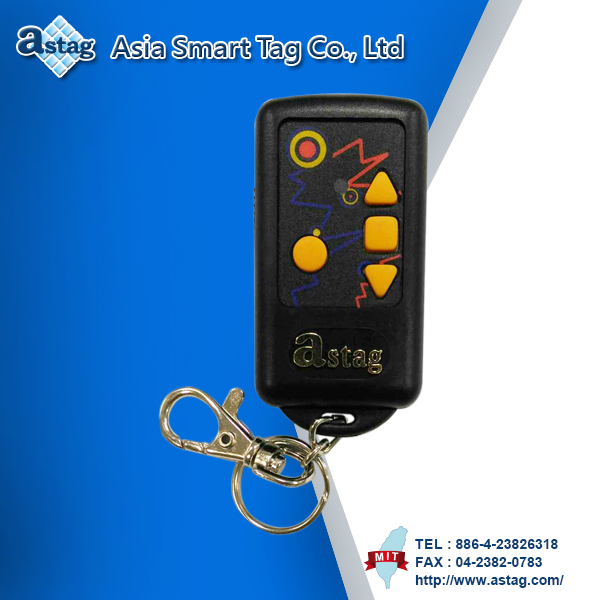

Can be used with the following Hopping Code Remote Controller.
|
|
|
|
|
|
|
|
