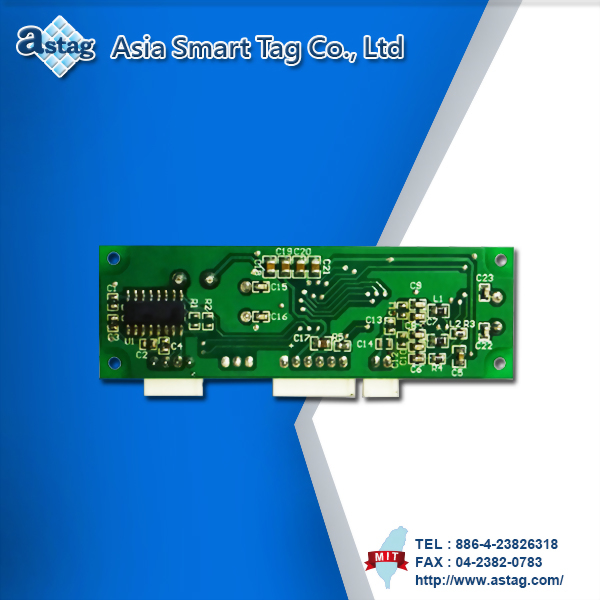

HF RFID Reader Module – USB

Model : PMH-NR12U-01
  • ．High power sawing
  • ．USB interface Virtual com port
  • ．External antenna connectivity
  • Interface HF RFID Reader Module – USB
    Part number PMH-NR12U-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface USB
    Modulation ASK
    FSK
    PSK
    Serial protocol 115200, N, 8, 1(customizable)
    Data output Continuous transmission
    Only send data once
    Power Bus powered
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 5.2(H) mm

    Interface
    Product
    number     		PMH-NR12U-01 PMH-NR12V-01
    Interface USB Virtual com port

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
  • Interface HF RFID Reader Module – USB
    Part number PMH-NR12V-01
    Frequency band 13.56 MHz
    Read range Up to 30 mm(depend on Tag)
    Host interface Virtual com port
    Modulation ASK
    FSK
    PSK
    Serial protocol 115200, N, 8, 1(customizable)
    Data output Continuous transmission
    Only send data once
    Power Bus powered
    Operating temperature -30℃ to +65 ℃
    Dimensions 70.8(L) x 22.6(W) x 5.2(H) mm

    Interface
    Product
    number     		PMH-NR12U-01 PMH-NR12V-01
    Interface USB Virtual com port

    Supported
    Standard Manufacturer Tag Brand UID Read Write Applications
    ISO 14443A Mifare S50 Y Y Y Transportation
    Access Control
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S50 UID 7 Byte Y Y Y
    Mifare S70 Y Y Y
    Mifare Ultralight Y Y Y
    Mifare Ultralight EV 1 Y N N
    Mifare Ultralight C Y N N
