RFID Label

RFID Label

Model : PLU-099049

Q'ty :

Product	RFID UHF Label
Iteam number	PLU-099049
Size	99 x 49 mm(L x W)
ISO standard	ISO 18000-6C / EPC-C1G2
Frequency band	860 ~ 868 MHz；902 ~ 928 MHz
Antenna substrate	PET
Antenna material	aluminum
EPC Memory	128 bit
TID Memory	96 bit
Operating temperature	-20°C ~ 60°C
Storage temperature	-20°C ~ 75°C

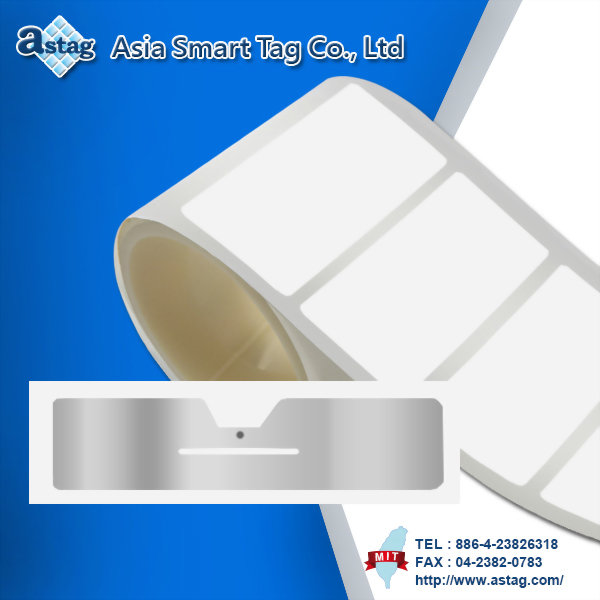

Package	2000 pcs/roll , 4 roll/carton
IC item	Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9 ※Any IC is acceptable (customizable)

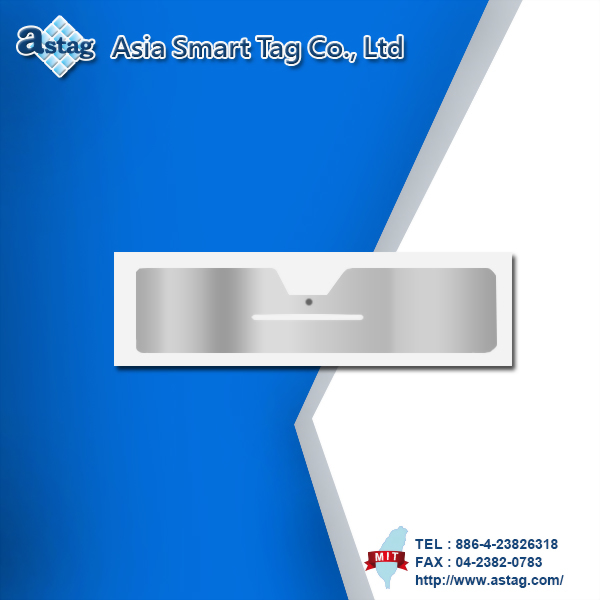

Inlay Size Information				(Unit:mm)
Position	Size	Tolerance	Position	Size	Tolerance
A	93	± 0.2	D	8.5	± 0.2
B	19	± 0.2	E	8.5	± 0.2
C	39	± 0.2	F	110	± 0.2

Label Size Information				(Unit:mm)
Position	Size	Tolerance	Position	Size	Tolerance
A	99	± 0.2	E	4.5	± 0.2
B	49	± 0.2	F	110	± 0.2
C	9.5	± 0.2	G	2.5	± 0.2
D	4.5	± 0.2	H	15.5	± 0.2

. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.
