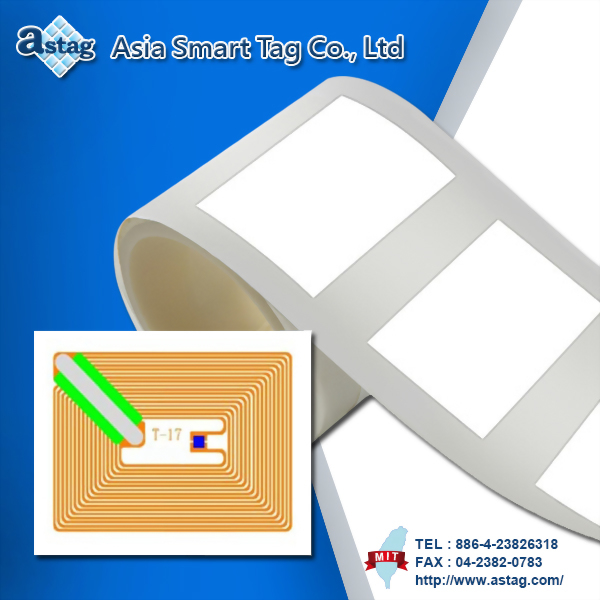

Label

Model : PLH026020

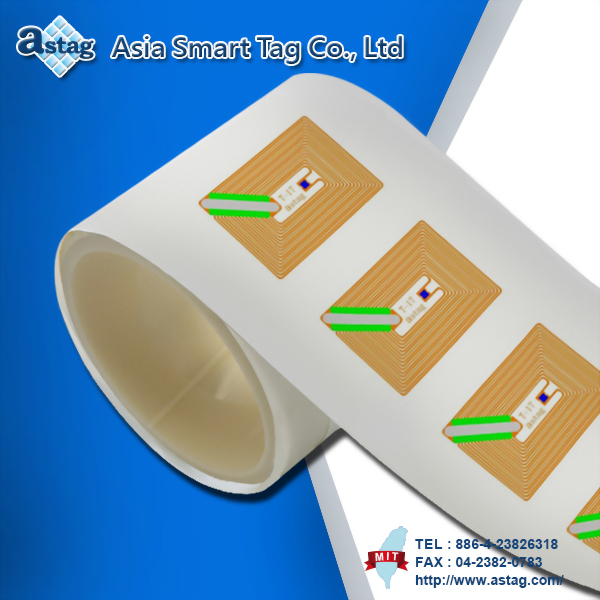

Inlay Label
Iteam number PIH022016 PLH026020
Size 22 x 16 mm(L x W) 26 x 20 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 4cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 15693
IC item I-code SLI series
※Any IC is acceptable

Dimensions


Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 22 ±0.2 B 16 ±0.2
C 34 ±0.3 D 48 ±0.3
E 21 ±0.2 F 16 ±0.5
G 4 ±0.1 H 4 ±0.1
I 76.2 ±0.5 Frequency 13.56Mhz ±3%


Labe


Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 22 ±0.2 B 16 ±0.2
C 26 ±0.2 D 20 ±0.2
E 38 ±1.5 F 60 ±1
G 2 ±1.5 H 2 ±1.5
I 12 ±1.5 J 20 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%
