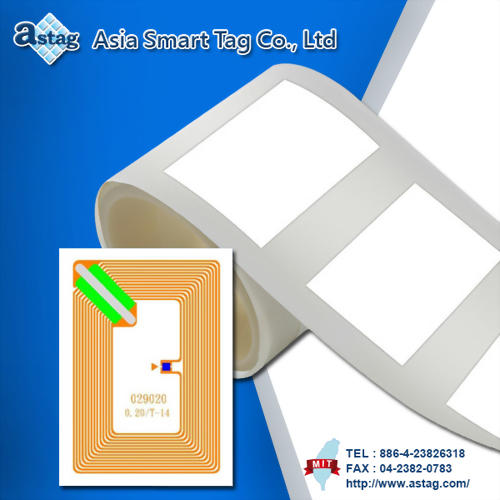

Label

Model : PLH033024
Label
Iteam number PLH033024
Size 33 x 24 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 5cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 14443A
IC item Mifare S50
Mifare S50 UID 7 Byte
Mifare series
※Any IC is acceptable

Dimensions



Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 29 ±0.2 B 20 ±0.2
C 38 ±0.3 D 40 ±0.3
E 12.5 ±0.25 F 10 ±0.5
G 4 ±0.1 H 4 ±0.1
I 76.2 ±0.5 Frequency 13.56Mhz ±3%


Label




Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 29 ±0.2 B 20 ±0.2
C 33 ±0.2 D 24 ±0.2
E 42 ±1.5 F 50 ±1
G 2 ±1.5 H 2 ±1.5
I 9 ±1.5 J 13 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%


RFID Label
