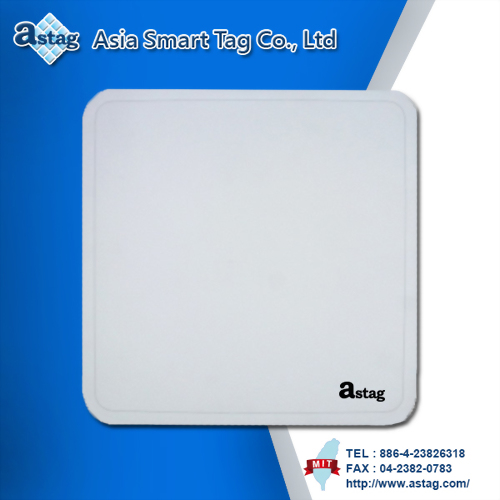

CS772

Model : PAU772

Frequency range 865-868 MHz
Mounting 2 x 2 mounting stud, horizontal separation 5.875 inches, vertical
separation 2.75 inches, 1/4 x 0.625 inch studs with 20 threads/inch threading
Polarization Linear
Peak gain 9 dBiL
Front-to-back ratio 20 dB
Input power 10 Watts
Beamwidth(3 dB) 54 degrees
Impedance 50 ohms
ESD 10 kV (no ESD sensitive components)
Operating temperature -20°C ～ +55°C
Storage temperature 0°C ～ +30°C
Humidity +5 to 95%, Non-Condensing
Size 30 x 30 x 4 cm (LxWxH)
Weight 5 lbs
Application Reader PRU461

  • ．Single antenna element
  • ．Linear Polarization
  • ．Excellent matching for best RFID reading
  • ．Ruggedized operation


  •
  • Introduction
  • ．CS772 is a linear polarized UHF RFID Far Field antenna for long range operation where the tag polarization is known and controllable.
  • ．The antenna connects via a 3 meter cable to a TNC Reverse Polarity plug connector that is compatible with CS461 fixed reader.
