Label
Model :
PLH4747
| IC Protocol | ISO-15693 |
| Frequency | 13.56MHz Band |
| IC |
I-code SCI , I-code SCIX , I-code SCIx2 , Mifanr S50 , st-25TV02K , Ti-pius |
| Antenna Size | 47*47 mm |
| Operating Temperature | -30℃ ~80℃ |
| Storage temperature | 25℃ ~70℃ |
| Package | 2000pcs,4rolls/ctn |

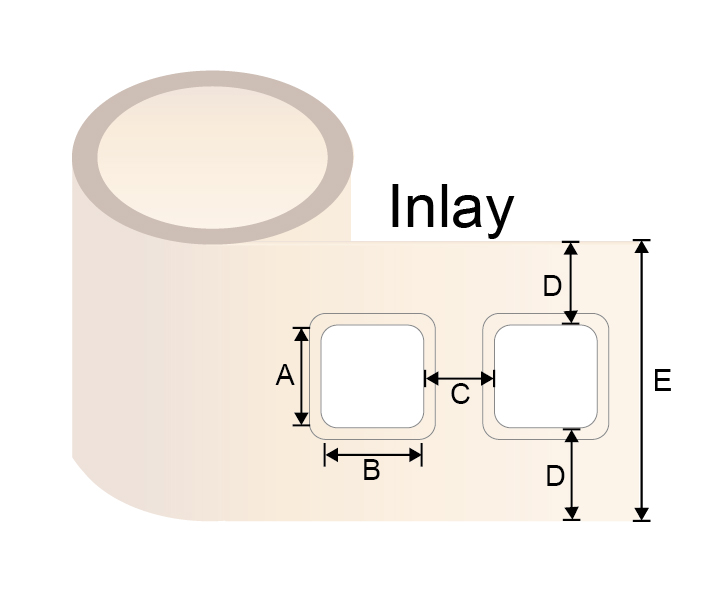

| Inlay Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 47 | ± 0.2 | D | 5 | ± 0.2 |
| B | 47 | ± 0.2 | E | 56 | ± 0.2 |
| C | 7.5 | ± 0.2 | |||
| Label Size Information | (Unit:mm) | ||||
| Position | Size | Tolerance | Position | Size | Tolerance |
| A | 50 | ± 0.2 | D | 3.5 | ± 0.2 |
| B | 50 | ± 0.2 | E | 56 | ± 0.2 |
| C | 5 | ± 0.2 | F | 1.5 | ± 0.2 |
. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.
. Stable quality.
. Easy to track and manage.
. Customized service.
