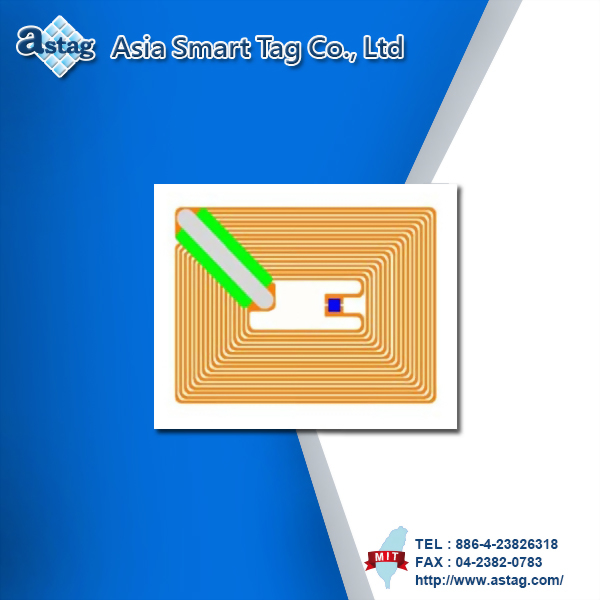

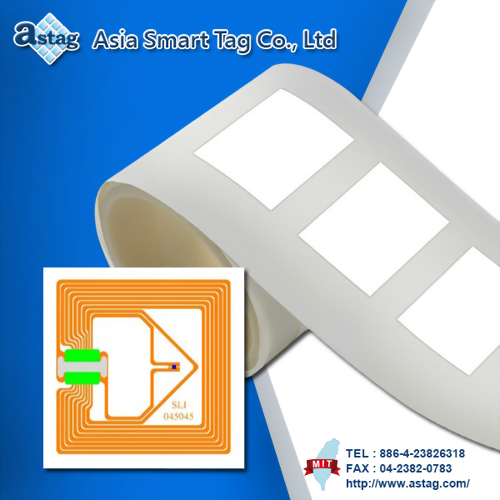

RFID Label

Model : PLH-028022
Inlay Label
Iteam number PIH024018 PLH028022
Size 24 x 18 mm(L x W) 28 x 22 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 4cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material Copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 75°C
ISO standard ISO-14443A / ISO-14443B / ISO 15693
IC item Mifare standard series / I-Code series                          Mifare desfire series /NFC series / ST25T series
※Any IC is acceptable   (customizable)

Dimensions


Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 24 ±0.2 B 18 ±0.2
C 42 ±0.3 D 48 ±0.3
E 10 ±0.2 F 15 ±0.5
G 4 ±0.1 H 4 ±0.1
I 76.2 ±0.5 Frequency 13.56Mhz ±3%





Label

Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 24 ±0.2 B 18 ±0.2
C 28 ±0.2 D 22 ±0.2
E 46 ±1.5 F 60 ±1
G 2 ±1.5 H 2 ±1.5
I 18 ±1.5 J 19 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%
