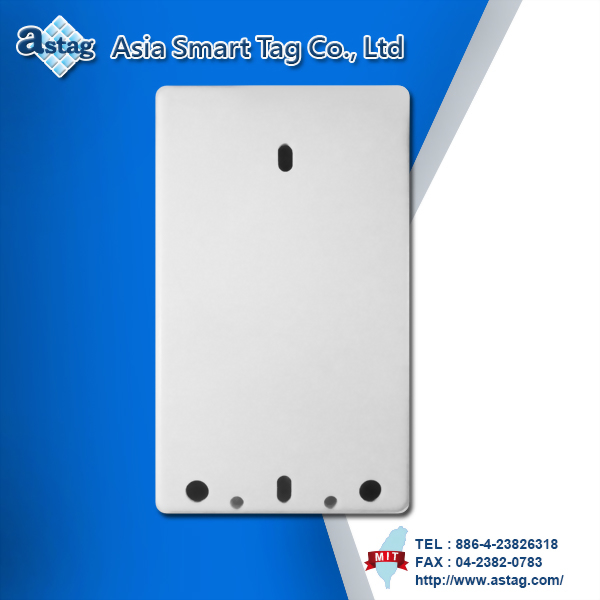

Access Control Reader
Frequency：13.56 MHz
Read range：5 ~ 10 cm
Model :
PRH5088
| Frequency band | 13.56 MHz | |
|---|---|---|
| Read range | 5 ~ 10 cm | |
| Reading time | 0.1 Sec | |
| Operating time | 0.6 Sec | |
| P.I.N.code | 4 Digital | |
| Communication interface | RS-485 | |
| Wiegand 26bits | ||
| Output relay | DC 5 A / 12 V | |
| Power supply input | DC 10 ~ 16 V | |
| Stand by current | 67 mA | |
| Operating current | 127 mA | |
| Card max capacity | 2000 | |
| 6000 | ||
| 10000 | ||
| Memory max capacity | 3000 | |
| 5000 | ||
| 7000 | ||
| 9000 | ||
| Baud rate | 9600, 8, N, 1 | |
| Operating temperature | -30°C ~ +55°C | |
| Storage temperature | 0°C ~ +30°C | |
| Weight | 240 g | |
| Size | 154 x 88 x 33mm(L x W x H) | |
．Maximum reading ranges 14-20cm.
．The capacity is 2000/ 6000/ 10000/ three installation.
．Random card numbers is available.
．Large LCD screen and 16 keypads. Displaying 16
characters x 2 lines.
．LCD screen can display the Model, Date and Time
when standby.
．Reader can record the data of come in and go out.
．The Original installation is 1000 records.
．Set up 3000/ 5000/ 7000/ 9000/ records that depend
on the customers.
．Inquiring the data from Reader directly.
．Built-in the watch output. Compatible with the
monitor system.
．Built-in tamper switch detects if case is under force.
．Increasing and deleting card numbers by keyboard
directly.
．Set up the functions by keyboard directly. LCD
display.
．Reader's memories are never deleted even if power
failure.
．Sensor and Alarm will be started when the door is
unlocked or under force.
．Compatible with the Reader (Wiegand 26 bit).
．Separating HW-5078 and Reader (Wiegand 26 bit)
too indoors and outdoors.
．Controlling the time of pass in and out.
．Controlling the time of pass in and out on
Holiday/Weekdays.
．Avoiding stealing into the building.
．Displaying the immediate message in the LED
screen.
．Record, watch and inquiry of the data that pass in
and out but also are saved.
．Increasing and deleting the cards by PC.
．Reader can compatible with RS232 <一> RS485
switch that can connect with PC to monitor the
access.
Supported
Standards
Manufacturer Tag Brand
UID
Read
Write
NXP I-Code 2(SLI)
Y
Y
Y
TI / Tag - it
Y
Y
Y
Other ISO15693
Y
Y
Y
NXP Mifare Ultralight
Y
Y
Y
NXP Mifare standard
NXP Mifare S50 4byte
NXP Mifare S50 7byte
NXP Mifare S70 4byte
NXP Mifare S70 7byte
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
NXP Mifare Desfire EV1
NTAG213
NTAG215
NTAG216
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
ISO 14443B
ATMEL
Y
Y
N
ISO 15693
ISO 14443A
ATTENDENCE / ACCESS CONTROL
RFID application is very popular in access and attendance control for convenience and security purposes. With proximity reader (sensor and standalone), access and security management is possible with proximity card and key chain. Information such as attendance, access data tracking and monitoring is stored and can be printed for analysis.
