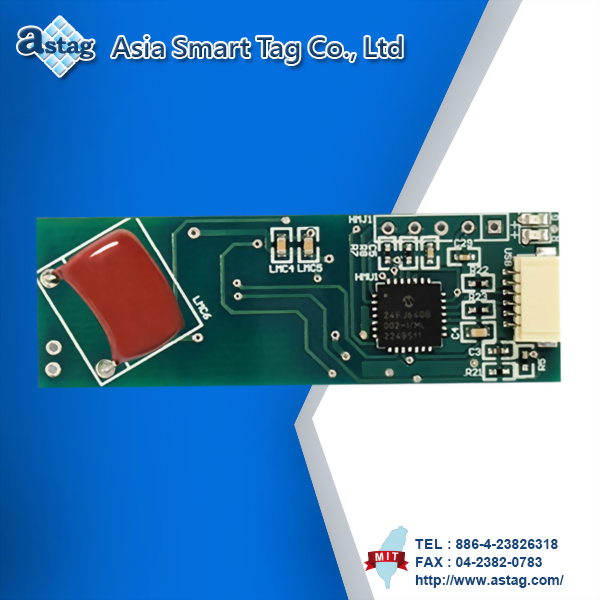

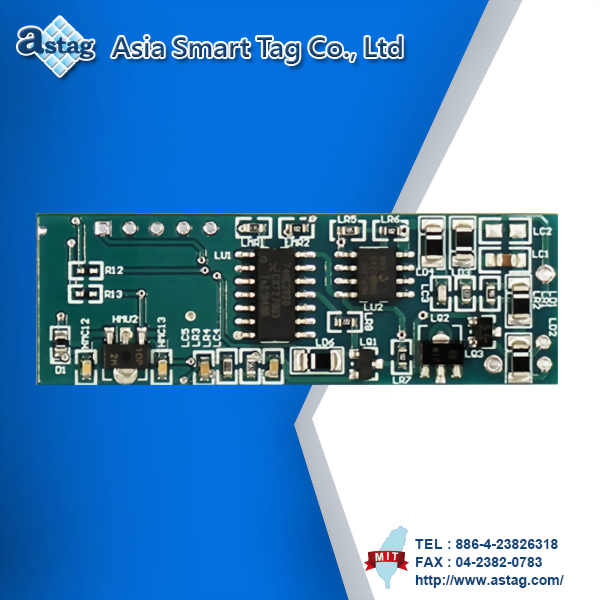

RFID LF Module
Model :
PMLDD12K_APL
- ．USB Keyboard Wedge Interface.
- ．Frequency Reader Module 125KHz.
- ．External antenna connection.
- ．Data transmission can customizable.
| Product Name | RFID LF Module |
| Product No. | PMLDD12K_APL |
| Frequency band | 125 KHz |
| Read range |
10cm ±1 cm (External Antenna) |
| Interface |
USB-HID / USB Keyboard Wedge
|
|
Power supply |
DC 5V |
| Dynamic mode | 93 mA |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 50 x 16.5 x 7.6mm (L x W x H) |
| Support | LED |
|
ISO standard |
ISO 11785 |
Interface
| Product No. | PMLDD12H_APL | PMLDD12K_APL |
| Interface | USB-HID | USB Keyboard Wedge |
