RFID Label

RFID Label

Model : PLH-019019

Q'ty :

	Inlay	Label
Iteam number		PLH019019
Size	15 x 15 mm(L x W)	19 x 19 mm(L x W)
Frequency band	13.56 MHz ±3%
Read range (Depends on the reader)	Up to 3cm
Testing reader	PRH578
Transmission principle	passive
Antenna substrate	PET
Antenna material	Copper
Label Cover material	-	Glossy Paper (PP PEPA Paper)
Tube material	ABS
Tube size	3 Inch
Package	1000 pcs/roll , 4 roll/carton
Operating temperature	-30°C ~ 75°C
Storage temperature	-20°C ~ 75°C
ISO standard	ISO-14443A / ISO-14443B / ISO 15693
IC item	Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable)

Dimensions

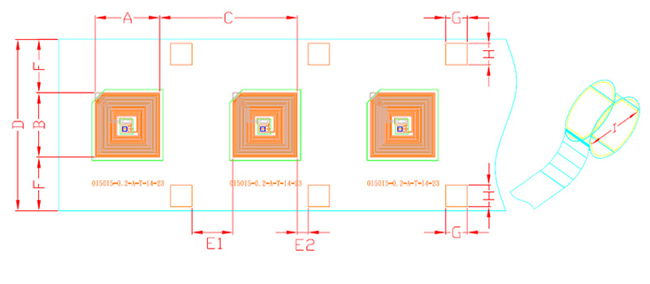

Inlay Size Information　　　　　　　　(Unit:mm)
X axis			Y axis
Position	Size	Tolerance	Position	Size	Tolerance
A	15	±0.2	B	15	±0.2
C	32	±0.3	D	40	±0.3
E1	9.5	±0.2	F	12.5	±0.5
E2	2.5	±0.2	H	5	±0.1
G	5	±0.1	Frequency	13.56Mhz	±3%
I	76.2	±0.5

Label

Label Size Information　　　　　　　　(Unit:mm)
X axis			Y axis
Position	Size	Tolerance	Position	Size	Tolerance
A	15	±0.2	B	15	±0.2
C	19	±0.2	D	19	±0.2
E	36	±1.5	F	50	±1
G	2	±1.5	H	2	±1.5
I	17	±1.5	J	15.5	±1.5
K	76.2	±0.5	Frequency	13.56Mhz	±3%

. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.
