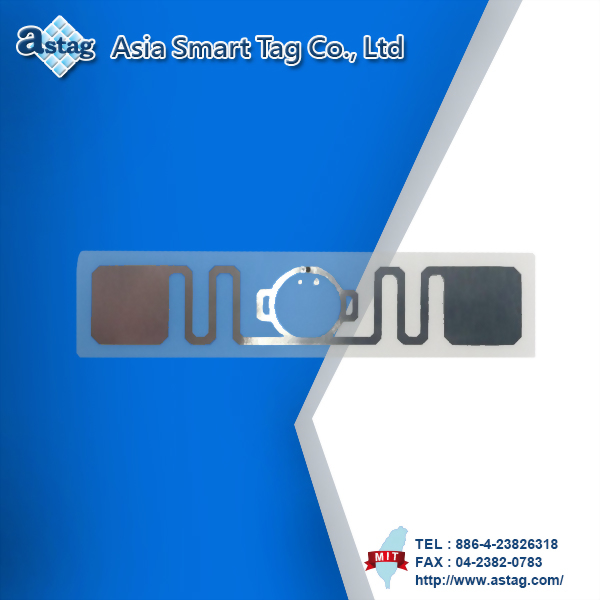

RFID Label

RFID Label

Model : PLU-058013

Q'ty :

Product	RFID UHF Label
Iteam number	PLU-058013
Size	58 x 13 mm(L x W)
ISO standard	ISO 18000-6C / EPC-C1G2
Frequency band	860 ~ 868 MHz；902 ~ 928 MHz
Antenna substrate	PET
Antenna material	aluminum
EPC Memory	128 bit
TID Memory	96 bit
Operating temperature	-20°C ~ 60°C
Storage temperature	-20°C ~ 75°C
Package	2000 pcs/roll , 4 roll/carton
IC item	Monza 4E / Monza R6 ALIEN H3 / ALIEN H9 NXP U Code 8 / NXP U Code 9 ※Any IC is acceptable (customizable)

Inlay Size Information				(Unit:mm)
Position	Size	Tolerance	Position	Size	Tolerance
A	55	± 0.2	D	4	± 0.2
B	10	± 0.2	E	3	± 0.2
C	10	± 0.2	F	62	± 0.2

Label Size Information				(Unit:mm)
Position	Size	Tolerance	Position	Size	Tolerance
A	58	± 0.2	E	1	± 0.2
B	13	± 0.2	F	62	± 0.2
C	7	± 0.2	H	2	± 0.2
D	3	± 0.2	H	2	± 0.2

. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.
