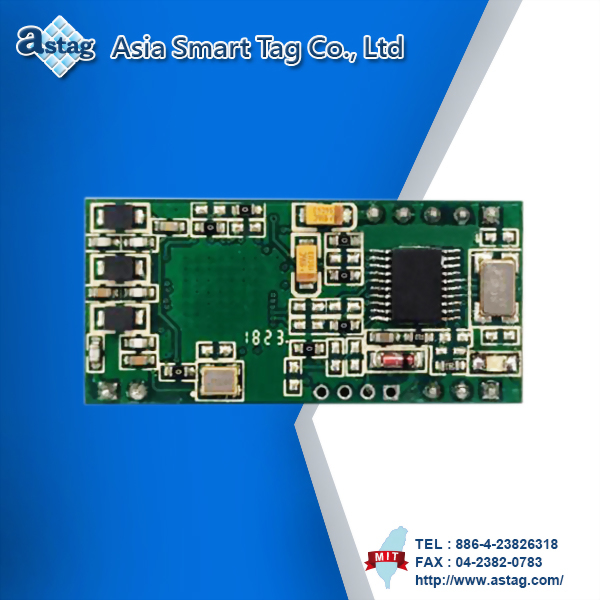

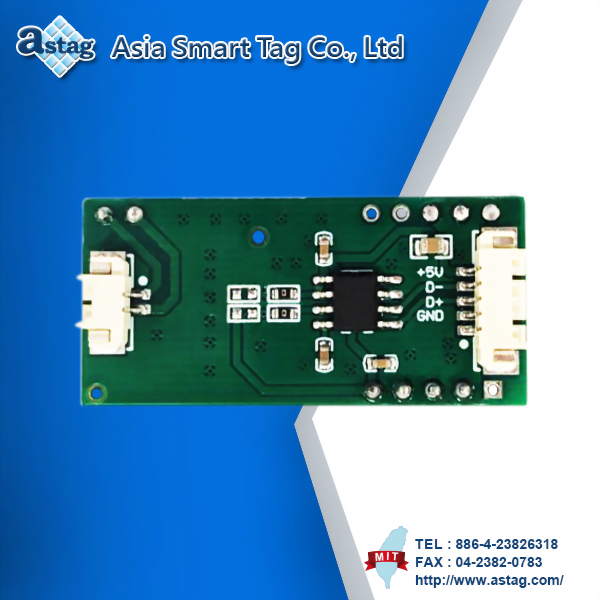

RFID HF Module
Model :
PMH-LL12-K
- ．USB Keyboard wedge、TTL interface.
-
．Frequency Reader Module 13.56 MHz (frequency band).
-
-
-
- ．On-board Antenna.
- ．Data transmission can customizable.
-
- ．Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
| Product Name | RFID HF Module |
| Product No. | PMH-LL12-K |
| Frequency band | 13.56 MHz |
| Read range |
8cm ±1 cm (Antenna On Board)
|
| Interface |
USB Keyboard wedge /TTL (customizable)
|
| Baud-Rate | 115200, N, 8, 1 (customizable) |
|
Input Voltage Range |
DC 5V |
| Operating temperature | -30℃ ~ 70℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Dimensions | 39(L) x 18(W) x 11(H) mm |
| Support |
Legic series card |
|
HF reader supports
|
ISO-14443A/B |
| ISO-15693 |
Interface
| Product No. | PMH-LL12-K | PMH-LL12-T |
| Interface | USB Keyboard wedge |
TTL |
Supported
| Standard | Manufacturer Tag Brand | UID | Read | Write |
| ISO 15693 | I-Code series | Y | Y | Y |
| TiTag series | Y | Y | Y | |
| Suitable ISO 15693 series | Y | Y | Y | |
| ISO 14443A | NFC series | Y | Y | Y |
| Mifare standard series | Y | Y | Y | |
|
Mifare desfire series |
Y | Y | Y | |
|
Mifare Ultralight series |
Y | Y | Y | |
|
Mifare Plus series |
Y | Y | Y | |
| Suitable ISO 14443A series | Y | Y | Y | |
| ISO 14443B | ATMEL series | Y | Y | Y |
．Access Control
．Inventory Management
．Asset Tracking
．Identity Recognition
．Data Access
