Label

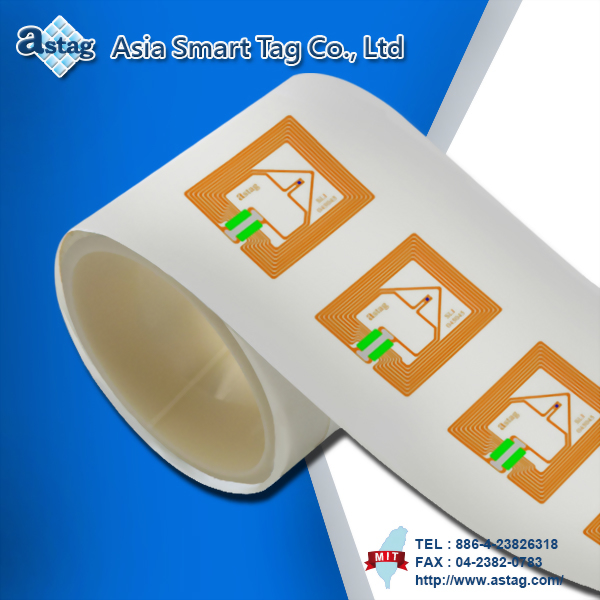

Model : PLH050050
Inlay Label
Iteam number PIH045045-SLI PLH050050
Size 45 x 45 mm(L x W) 50 x 50 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 10cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 15693
IC item I-code-SLI series
※Any IC is acceptable

Dimensions



Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 45 ±0.2 B 45 ±0.2
C 56 ±0.3 D 48 ±0.3
E 11 ±0.2 F 1.5 ±0.5
G 76.2 ±0.5 Frequency 13.56Mhz ±3%

Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 45 ±0.2 B 45 ±0.2
C 50 ±0.2 D 50 ±0.2
E 60 ±1.5 F 60 ±1
G 2.5 ±1.5 H 2.5 ±1.5
I 10 ±1.5 J 5 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%
