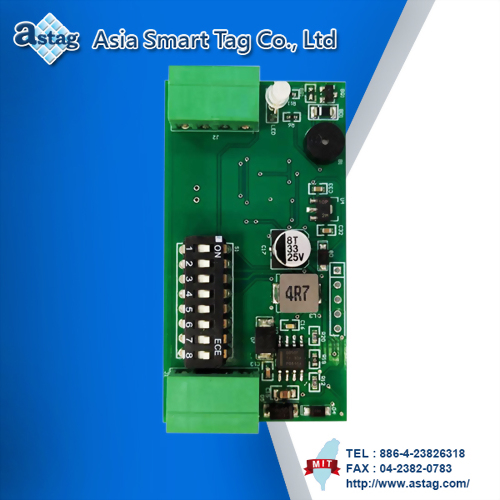

RFID HF Module

Model : PMH-CS41-R-3080
  • ．UART interface.
  • ．Frequency Reader Module 13.56 MHz (frequency band).
  • ．Data transmission can customizable.
    • ．Supports：These interfaces allow the reader module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.
      • ．Support IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.
        • ．Other support：On-board Antenna, can be connected to external Antenna and LED.
Product Name RFID HF Module
Product No. PMH-CS41-R-3080
Frequency band 13.56 MHz
Read range

5cm ±1 cm (Antenna On Board)

Interface

UART  (customizable)

Baud-Rate  115200, N, 8, 1  (customizable)
Input Voltage Range
 DC 5V
UART Interface Voltage
 3.3 VDC
Dynamic mode 93 mA
Operating temperature -30℃ ~ 70℃
Storage temperature -30℃ ~ 70℃
Dimensions 80(L) x 30(W) x 3(H) mm
Audio / Visual Indication

Buzzer(External)、LED(On Board)


HF reader supports


ISO-14443A/B/C
ISO-15693


Interface

Product No.
 PMH-CS41-R-3080
Interface
 UART




Supported

Standard Manufacturer Tag Brand UID Read Write
ISO 15693 I-Code series Y Y Y
TiTag series Y Y Y
Suitable ISO 15693 series Y Y Y
ISO 14443A NFC series Y Y Y
Mifare standard series Y Y Y
Mifare desfire series
 Y Y Y
Mifare Ultralight series
 Y Y Y
Mifare Plus series
 Y Y Y
Suitable ISO 14443A series Y Y Y
ISO 14443B ATMEL series Y Y Y

．Data access.

．Can read Passports, ID cards, Driver's licenses.

．Can be used in medical equipment and POS (point of sale) systems.
