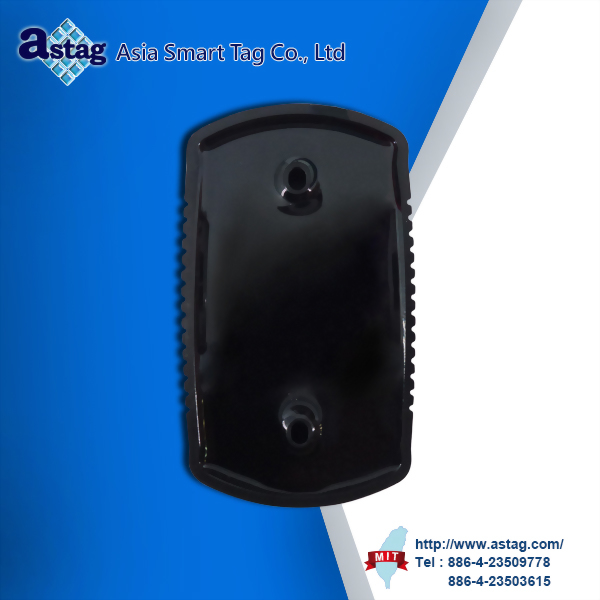

RFID HF Reader - RS-485

　
Frequency：13.56 MHz
Read range：5 cm (depend on Tag)
Model : PRH-588D
Frequency band 13.56 MHz
Read range Up to 5cm (depend on Tag)
Host interface UART
Wiegand
RS-232
RS-485
BLE
WiFi (option)
ISO standard ISO-14443A/B/C
ISO-15693
Modulation ASK
FSK
PSK
Transfer rate Up to 848 Kbit/s in both directions
UART data rate 57600, N, 8, 1(customizable)
Input voltage range DC 5V
Current consumption
(Dynamic Mode) 		93 mA
Current consumption
(Standby) 		4 mA
Operating temperature -30℃ ~ 75℃
Dimensions 78 x 45 x 17mm (L x W x H)

1. Supports：These interfaces allow the module to communicate with external devices such as computers(Windows 10/11), microcontrollers, or network servers.

2. Supports IC：Mifare standard series、Mifare desfire series、I-Code series、NFC series.

3. Advantages：HF RFID readers play a crucial role in enabling efficient and automated identification and tracking processes across various industries.


Interface

Product number PRH588R PRH588U PRH588I PRH588W
Interface UART USB I2C Wiegand
Product number PRH588B PRH588D PRH588L PRH588F
Interface RS232 RS485 BLE WIFI


Supported

Standard Manufacturer Tag Brand UID Read Write
ISO 15693 I-Code series Y Y Y
TiTag series Y Y Y
Suitable ISO 15693 series Y Y Y
ISO 14443A NFC series Y Y Y
Mifare standard series Y Y Y
Mifare desfire series
 Y Y Y
Mifare Ultralight series
 Y Y Y
Mifare Plus series
 Y Y Y
Suitable ISO 14443A series Y Y Y
ISO 14443B ATMEL series Y Y Y

Applications：

1. Access management

2. Access control

3. Asset tracking

4. Inventory management
