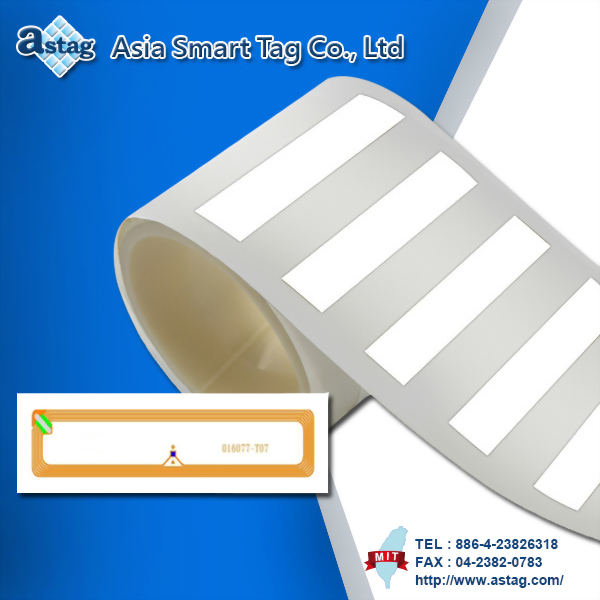

Model : PLH020081

Inlay Label
Iteam number PIH016077 PLH020081
Size 16 x 77 mm(L x W) 20 x 81 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader)
Up to 3cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 15693
IC item I-code SLI series
※Any IC is acceptable

Dimensions


Inlay Size Information         (Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 16 ±0.2 B 77 ±0.2
C 32 ±0.3 D 80 ±0.3
E 16 ±0.2 F 1.5 ±0.5
G 76.2 ±0.5 Frequency 13.56Mhz ±3%




Label

Label Size Information         (Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 16 ±0.2 B 77 ±0.2
C 20 ±0.2 D 81 ±0.2
E 36 ±1.5 F 100 ±1
G 2 ±1.5 H 2 ±1.5
I 16 ±1.5 J 9.5 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%


. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.

RFID Label
