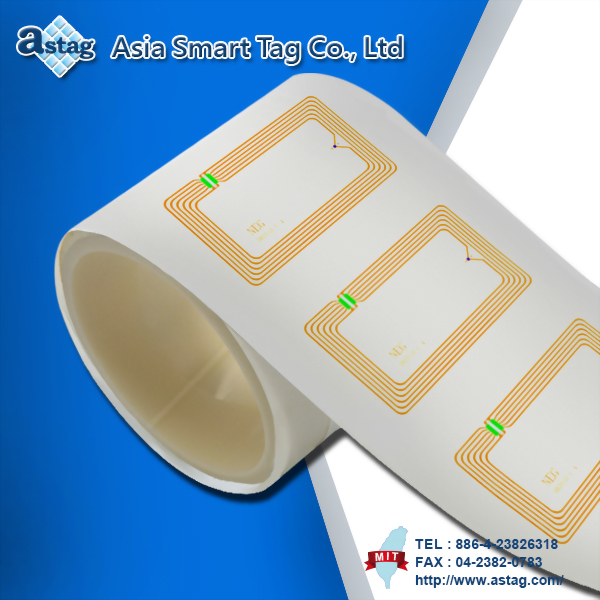

Label

Model : PLH086054
Inlay Label
Iteam number PIH082050 PLH086054
Size 82 x 50 mm(L x W) 85.6 x 54 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 12cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package 1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 15693
IC item I-code-SLI series
※Any IC is acceptable

Dimensions


Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 82 ±0.2 B 50 ±0.2
C 90 ±0.3 D 60 ±0.3
E 8 ±0.2 F 5 ±0.5
G 76.2 ±0.5 Frequency 14.40Mhz ±3%


Label

Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 82 ±0.2 B 50 ±0.2
C 85.6 ±0.2 D 54 ±0.2
E 96 ±1.5 F 80 ±1
G 1.8 ±1.5 H 2 ±1.5
I 10.4 ±1.5 J 13 ±1.5
K 76.2 ±0.5 Frequency 14.40Mhz ±3%
