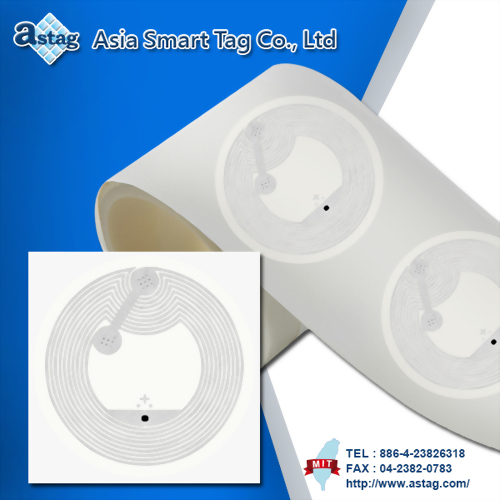

RFID Label

RFID Label

Model : PLH-Q25

Q'ty :

Product	RFID HF Label
Iteam number	PLH-Q25
Size	Ø25 mm
Frequency band	13.56 MHz
Antenna substrate	PET
Antenna material	aluminum
Package	2000 pcs/roll , 4 roll/carton
Operating temperature	-20°C ~ 60°C
Storage temperature	-20°C ~ 75°C
ISO standard	ISO-14443A / ISO-14443B / ISO 15693
IC item	Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable)

Inlay Size Information				(Unit:mm)
Position	Size	Tolerance	Position	Size	Tolerance
A	25	± 0.2	D	8	± 0.2
B	25	± 0.2	E	50	± 0.2
C	9	± 0.2

Label Size Information				(Unit:mm)
Position	Size	Tolerance	Position	Size	Tolerance
A	30	± 0.2	D	7	± 0.2
B	30	± 0.2	E	2	± 0.2
C	8	± 0.2	F	50	± 0.2

. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.
