Label

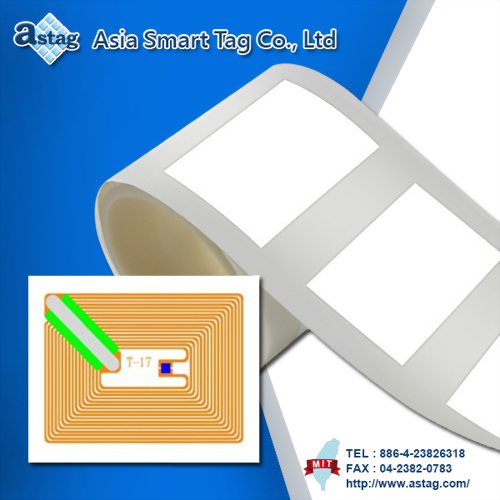

Model : PLH032032
Inlay Label
Iteam number PIH028028 PLH032032
Size 28 x 28 mm(L x W) 32 x 32 mm(L x W)
Frequency band 13.56 MHz ±3%
Read range
(Depends on the reader) 		Up to 4cm
Testing reader PRH578
Transmission principle passive
Antenna substrate PET
Antenna material copper
Label Cover material - Glossy Paper
(PP PEPA Paper)
Tube material ABS
Tube size 3 Inch
Package1000 pcs/roll , 4 roll/carton
Operating temperature -30°C ~ 75°C
Storage temperature -20°C ~ 35°C
ISO standard ISO 14443A
IC item Mifare S50
Mifare S50 UID 7 Byte
Mifare series
※Any IC is acceptable

Dimensions



Inlay Size Information　　　 　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 28 ±0.2 B 28 ±0.2
C 34 ±0.3 D 48 ±0.3
E 6 ±0.2 F 10 ±0.5
G 76.2 ±0.5 Frequency 13.56Mhz ±3%




Label Size Information　　 　　　　　　(Unit:mm)
X axis Y axis
Position Size Tolerance Position Size Tolerance
A 28 ±0.2 B 28 ±0.2
C 32 ±0.2 D 32 ±0.2
E 38 ±1.5 F 60 ±1
G 2 ±1.5 H 2 ±1.5
I 6 ±1.5 J 14 ±1.5
K 76.2 ±0.5 Frequency 13.56Mhz ±3%
