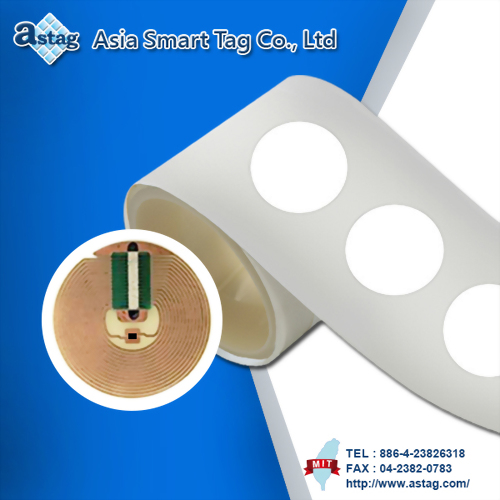

Label for Stock Control

Label for Stock Control

Model : PLH-Q032

Q'ty :

	Inlay	Label
Iteam number	PIHQ028	PLHQ032
Size	Ø28 mm	Ø32 mm
Frequency band	13.56 MHz ±3%
Read range (Depends on the reader)	Up to 3cm
Testing reader	PRH578
Transmission principle	passive
Antenna substrate	PET
Antenna material	copper
Label Cover material	-	Glossy Paper (PP PEPA Paper)
Tube material	ABS
Tube size	3 Inch
Package	1000 pcs/roll , 4 roll/carton
Operating temperature	-30°C ~ 75°C
Storage temperature	-20°C ~ 75°C
ISO standard	ISO-14443A / ISO-14443B / ISO 15693
IC item	Mifare standard series / I-Code series Mifare desfire series /NFC series / ST25T series ※Any IC is acceptable (customizable)

Dimensions

Inlay Size Information　　　　　　　　(Unit:mm)
X axis			Y axis
Position	Size	Tolerance	Position	Size	Tolerance
A	28	±0.2	B	28	±0.2
C	42	±0.3	D	48	±0.3
E	14	±0.2	F	10	±0.5
G	76.2	±0.5	Frequency	13.56Mhz	±3%

Label

Label Size Information　　　　　　　　(Unit:mm)
X axis			Y axis
Position	Size	Tolerance	Position	Size	Tolerance
A	28	±0.2	B	28	±0.2
C	32	±0.2	D	32	±0.2
E	46	±1.5	F	60	±1
G	2	±1.5	H	2	±1.5
I	14	±1.5	J	14	±1.5
K	76.2	±0.5	Frequency	13.56Mhz	±3%

. Can be used for car management, logistics management, warehouse management, access control management, and has a wide range of practicality.
. Stable quality.
. Easy to track and manage.
. Customized service.
