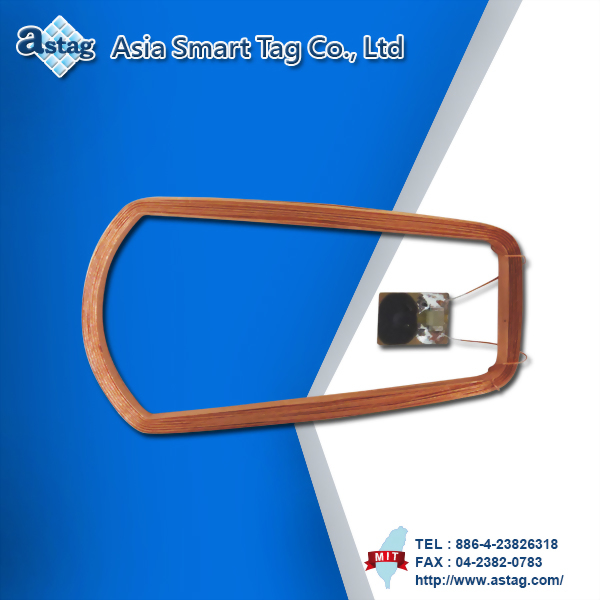

RFID Security Card Coil+COB
Model :
POL03B
| Frequency | 125 KHz | |
|---|---|---|
| Read range | Up to 18 cm | |
| Testing reader | PRL578 | |
| Size | 32.6 x 17.5 mm(L x W) Outer Diameter | |
| Weight | 1.5 g ± 0.1 g | |
| Coil thickness | 2 mm ± 0.1 mm | |
| Operating temperature | -20°C ～ +85°C | |
| Storage temperature | 0°C ～ +70°C | |
| Package | varied for tags | |
| IC ITEM | EM4100 | |
| EM4102 | ||
| EM4200 | ||
| EM4069 | ||
| EM4550 | ||
| TEMIC5557 | ||
| TEMIC5567 | ||
| HiTAG Ⅰ | ||
| HiTAG Ⅱ | ||
| HiTAG S2048 | ||
- ．RFID Proximity Tag coil.
- ．Employee tag / student tag coil.
- ．Member tag / value stored tag coil.
Dimensions
